2025 Suzuki DL800DERCM5 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

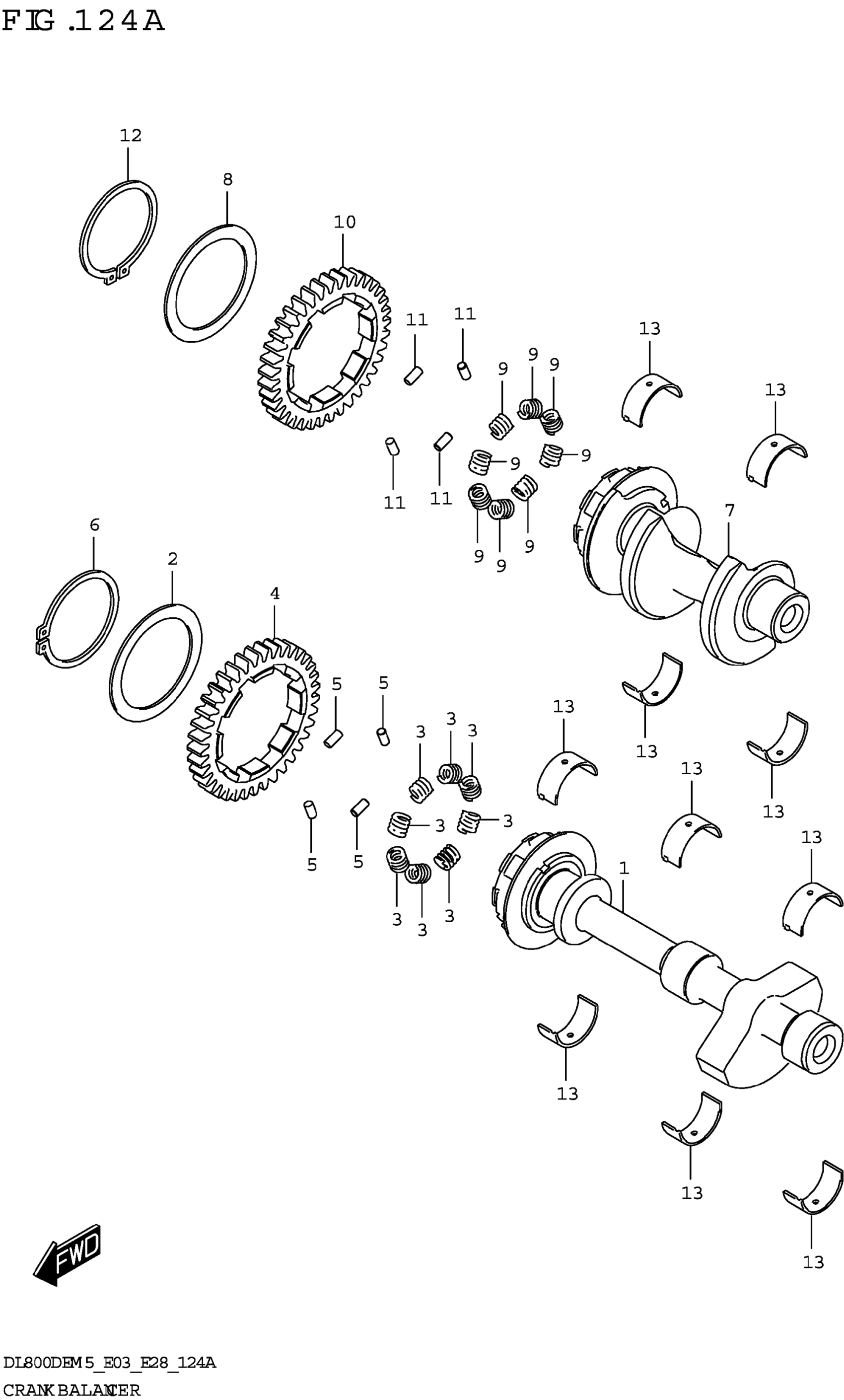

2025 Suzuki DL800DERCM5 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER,CRANK NO.1

12601-25L10

1

$359.78

In stock

2

1

$4.38

In stock

3

8

$1.82

In stock

4

1

$105.62

In stock

5

PIN (4.5X9.5)

09202-04017

4
Out of stock

6

CIRCLIP

08331-31529

1
Out of stock

7

BALANCER,CRANK NO.2

12602-25L10

1

$295.42

In stock

8

1

$4.38

In stock

9

8

$1.82

In stock

10

1

$105.62

In stock

11

PIN (4.5X9.5)

09202-04017

4
Out of stock

12

CIRCLIP

08331-31529

1
Out of stock

13-1

BEARING,CRANK BALANCER

12229-25L10-0A0

10

$14.42

In stock

13-2

BEARING,CRANK BALANCER

12229-25L10-0B0

10

$14.42

In stock

13-3

BEARING,CRANK BALANCER

12229-25L10-0C0

10

$14.42

In stock

13-4

BEARING,CRANK BALANCER

12229-25L10-0D0

10

$14.42

In stock
