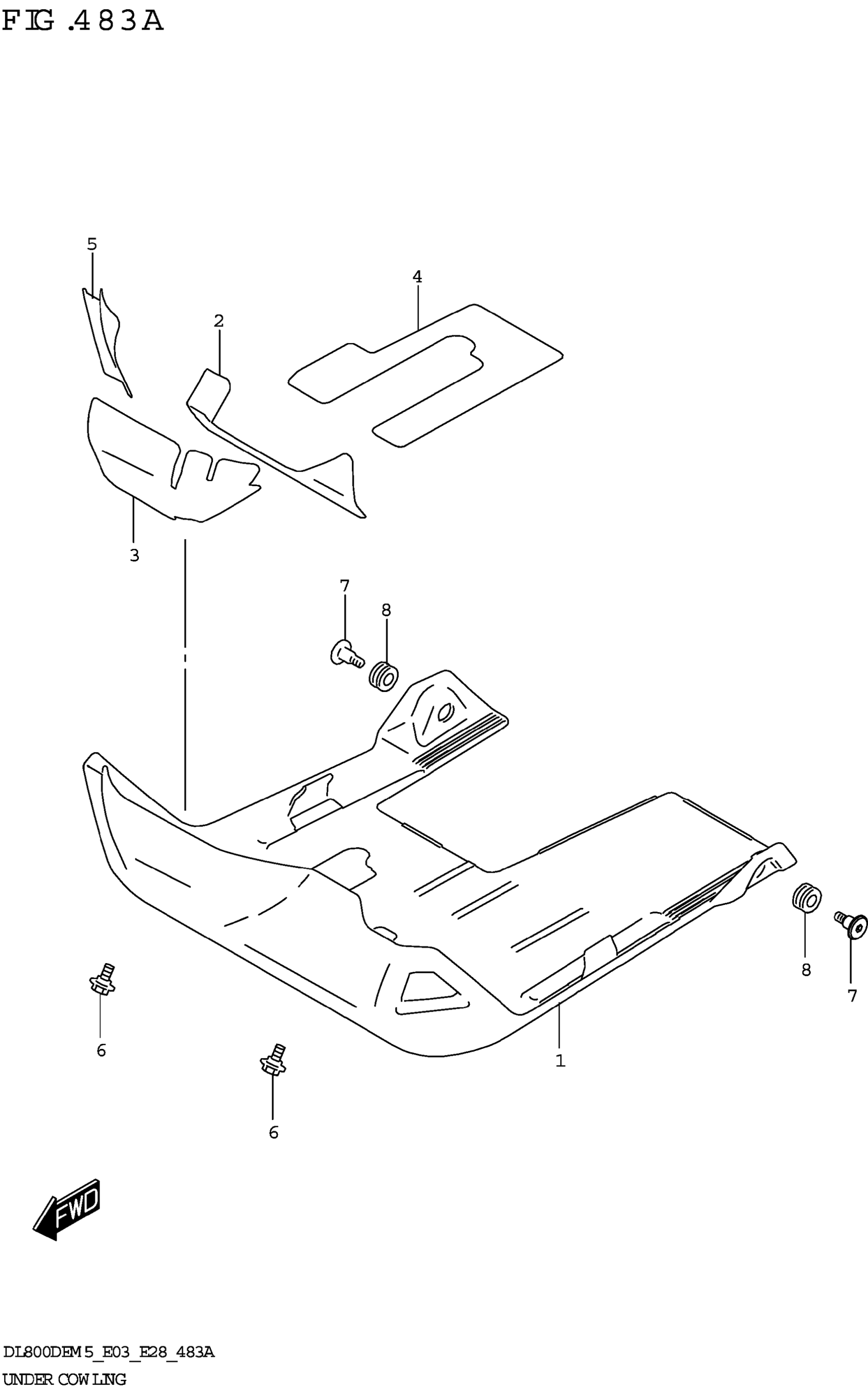

Suzuki DL800DERCM5 (2025) UNDER COWLING Diagram

#

Description

Price

1

COVER,UNDER

94491-25LA0

$54.98

2

SHIELD,UNDER COVER HEAT NO.1

94492-25LA0

$5.83

3

SHIELD,UNDER COVER HEAT NO.2

94493-25LA0

$6.70

4

SHIELD,UNDER COVER HEAT NO.3

94494-25LA0

$6.83

5

SHIELD,UNDER COVER HEAT NO.4

94495-25LA0

$4.92

6

BOLT (6X13.5)

09111-06262

$1.24

7

SCREW (6X20)

09139-06206

$2.99

8

CUSHION (9X18X9.5)

09320-09016

$1.97
