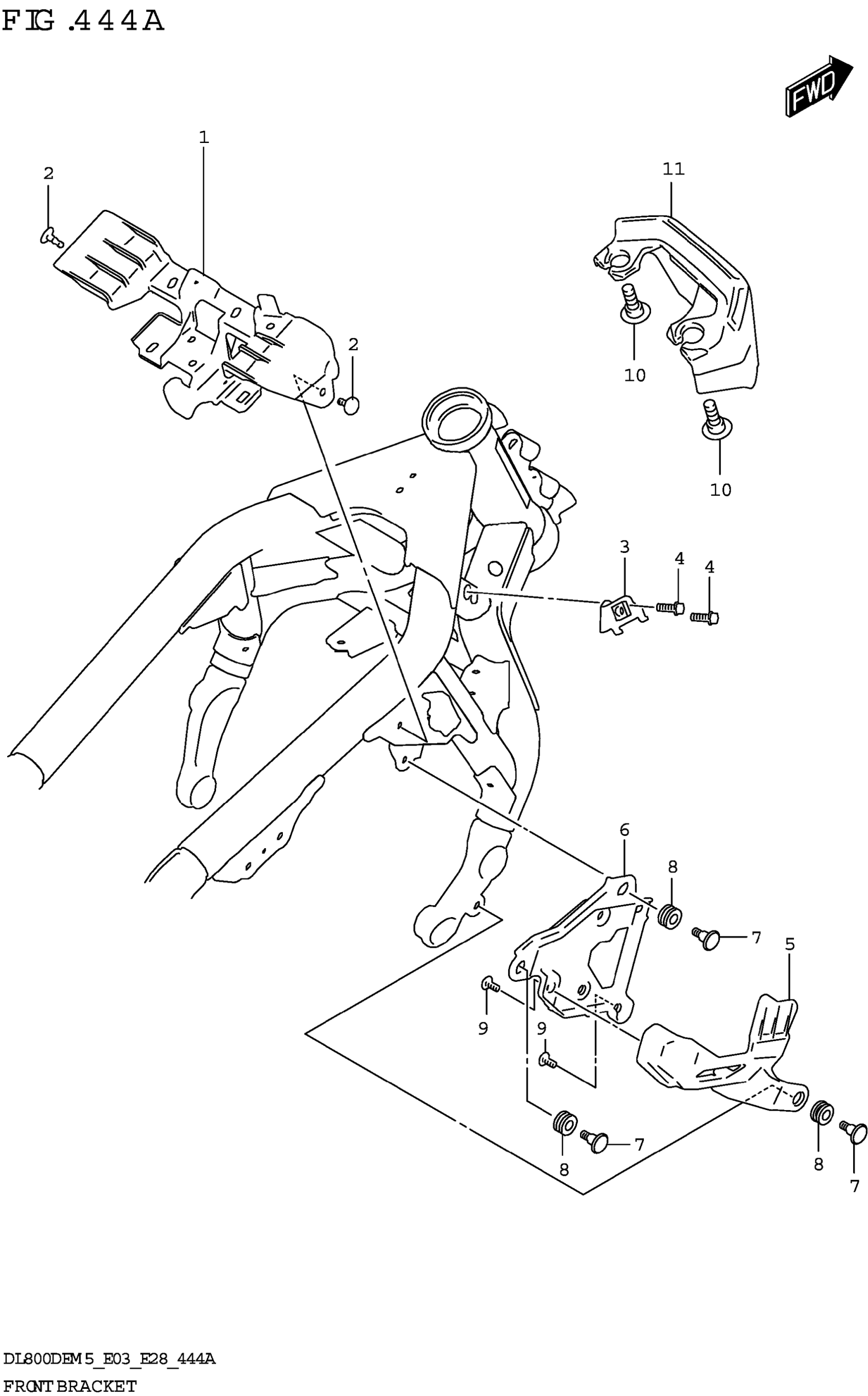

Suzuki DL800DERCM5 (2025) FRONT BRACKET Diagram

#

Description
Price

1

BRACKET,COUPLER

47430-25L00

$22.55

2

CLIP

94479-35F00

$5.14

3

BRACKET,HORN

46420-25L00

$8.68

4

BOLT

01547-0616A

$2.01

5

GUARD,RECTIFIER

47436-25L00

$14.55

6

HOLDER,RECTIFIER

47437-25L00

$15.50

7

SCREW (6X20)

09139-06211

$3.15

8

CUSHION (9X18X9.5)

09320-09016

$1.97

9

SCREW

03541-0512A

$1.37

10

BOLT (5X16)

09139-05073

$4.18

11

GUARD,KEY CYLINDER

94415-25LA0

$9.97
