2025 Suzuki DL800DERCM5 Footrest Diagram

← All diagrams

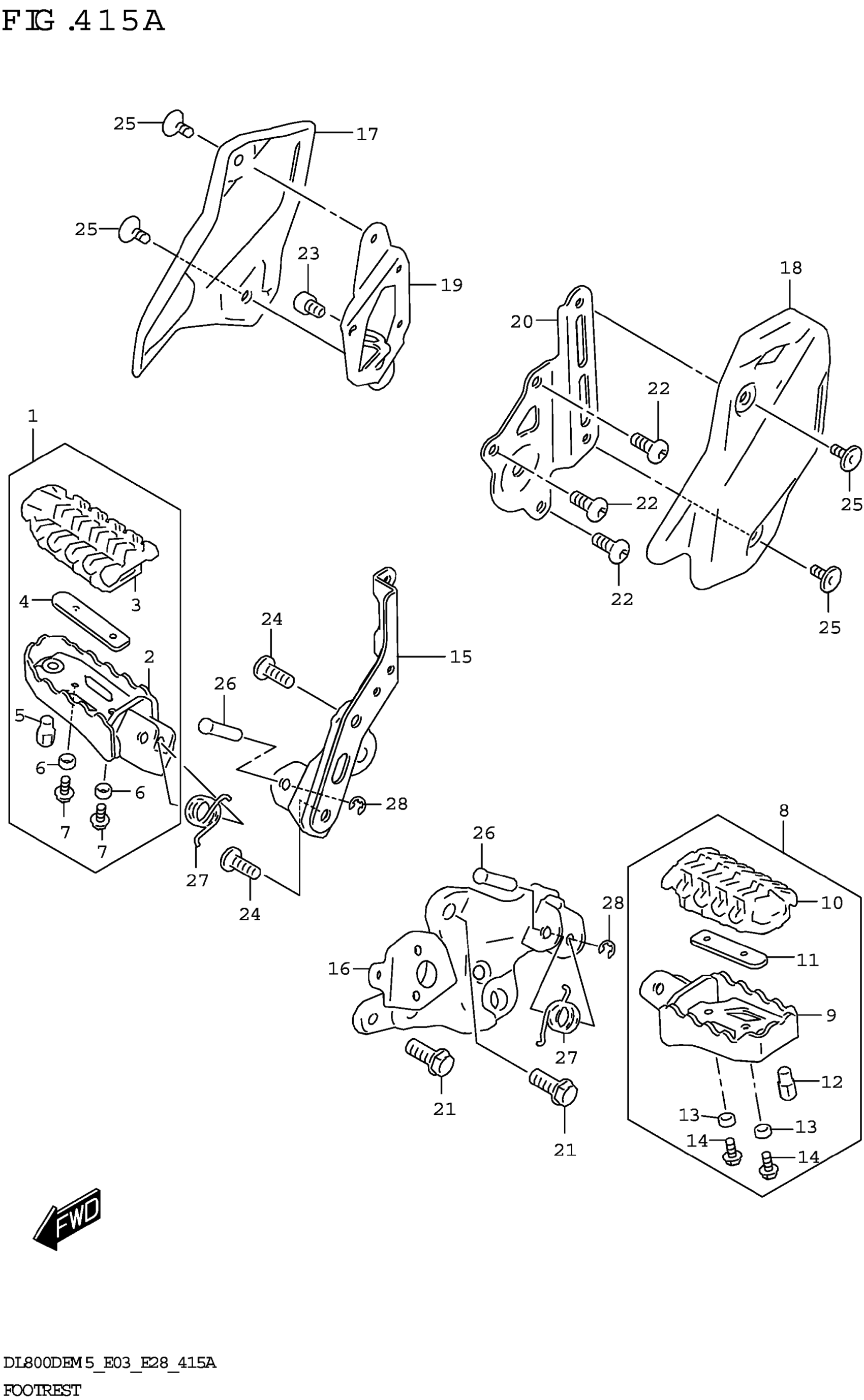

Find the part on the Footrest diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST ASSY,FRONT,R

43501-25LA0

1
Out of stock

2

.BAR,FRONT FOOTREST RH

43530-06L00

1
Out of stock

3

.RUBBER,FR FOOTREST

43551-06L00

1
Out of stock

4

.PLATE,FR FOOTREST RUBBER

43552-06L00

1
Out of stock

5

.BOLT,BANK SENSOR

43576-07D01

1
Out of stock

6

.SPACER,FR FOOTREST RUBBER

47512-28K00

2
Out of stock

7

.BOLT

01550-0512A

—
Out of stock

8

FOOTREST ASSY,FRONT,L

43502-25LA0

1
Out of stock

9

.BAR,FRONT FOOTREST LH

43540-06L00

1
Out of stock

10

.RUBBER,FR FOOTREST

43551-06L00

1
Out of stock

11

.PLATE,FR FOOTREST RUBBER

43552-06L00

1
Out of stock

12

.BOLT,BANK SENSOR

43576-07D01

1
Out of stock

13

.SPACER,FR FOOTREST RUBBER

47512-28K00

2
Out of stock

14

.BOLT

01550-0512A

—
Out of stock

15

BRACKET,FR FOOTREST,R

43510-25LB0

1
Out of stock

16

BRACKET,FR FOOTREST,L

43520-25LB1

1
Out of stock

17

GUARD,FR FOOTREST,R

43571-25LB0

1

$13.72

In stock

18

GUARD,FR FOOTREST,L

43572-25LB0

1

$13.72

In stock

19

1

$16.60

In stock

20

1

$40.45

In stock

21

BOLT (10X25)

09103-10415

2
Out of stock

22

BOLT (8X20)

09106-08167

3
Out of stock

23

BOLT (8X12)

09106-08171

1
Out of stock

24

BOLT

09106-08206

2
Out of stock

25

SCREW (6X16)

09139-06221

4
Out of stock

26

PIN (8X33.2)

09208-08010

2
Out of stock

27

SPRING

09448-20012

2
Out of stock

28

E-RING

08332-1106B

2
Out of stock
