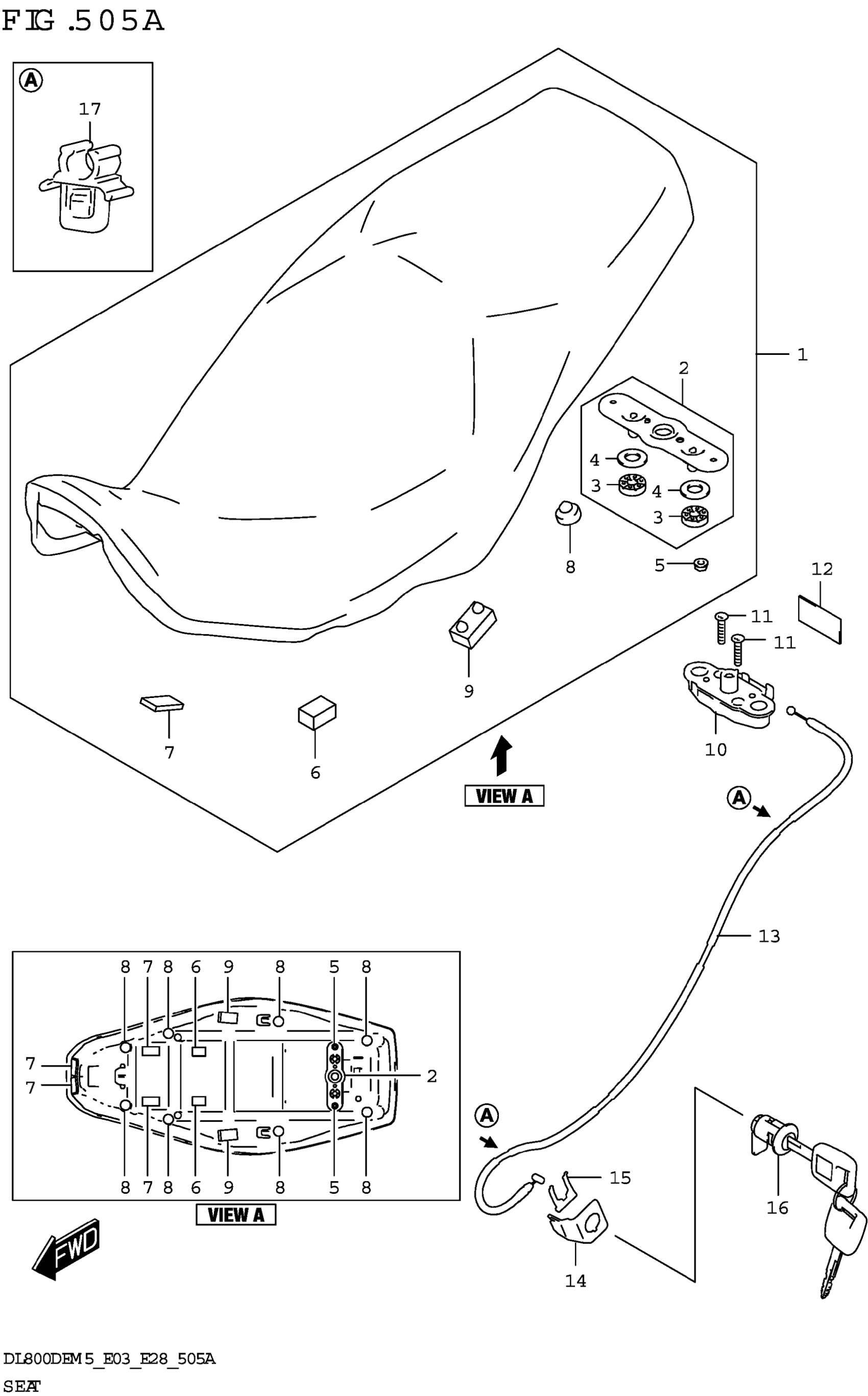

Find the part on the Seat diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK)

45100-25LA0-CKA

1
Out of stock

2

.STRIKER,SEAT LOCK

45290-28D20

—
Out of stock

3

..CUSHION,SEAT LOCK (10X22X6)

45213-13601

2
Out of stock

4

..WASHER

08322-0110A

2
Out of stock

5

NUT (6X12)

08316-1006A

2
Out of stock

6

.CUSHION (20X30X15)

17798-29E30

2
Out of stock

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

4
Out of stock

8

CUSHION This part replaces 45148-16700.

09321-10002

8
Out of stock

9

.CUSHION

09321-08006

2
Out of stock

10

BRACKET,SEAT SUPPORT

45220-47H00

1
Out of stock

11

SCREW (6X30)

09126-06019

2
Out of stock

12

CUSHION

44885-38A00

1
Out of stock

13

CABLE,SEAT LOCK

45280-25LA0

1
Out of stock

14

GUIDE,SEAT LOCK CABLE

45288-14F00

1
Out of stock

15

PLATE,SEAT LOCK ASSY

45289-11F00

1
Out of stock

16

LOCK SET,SEAT

95700-14810

1
Out of stock

17

CLAMP

09403-05319

2
Out of stock
