2024 Suzuki DL800DERCM4 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

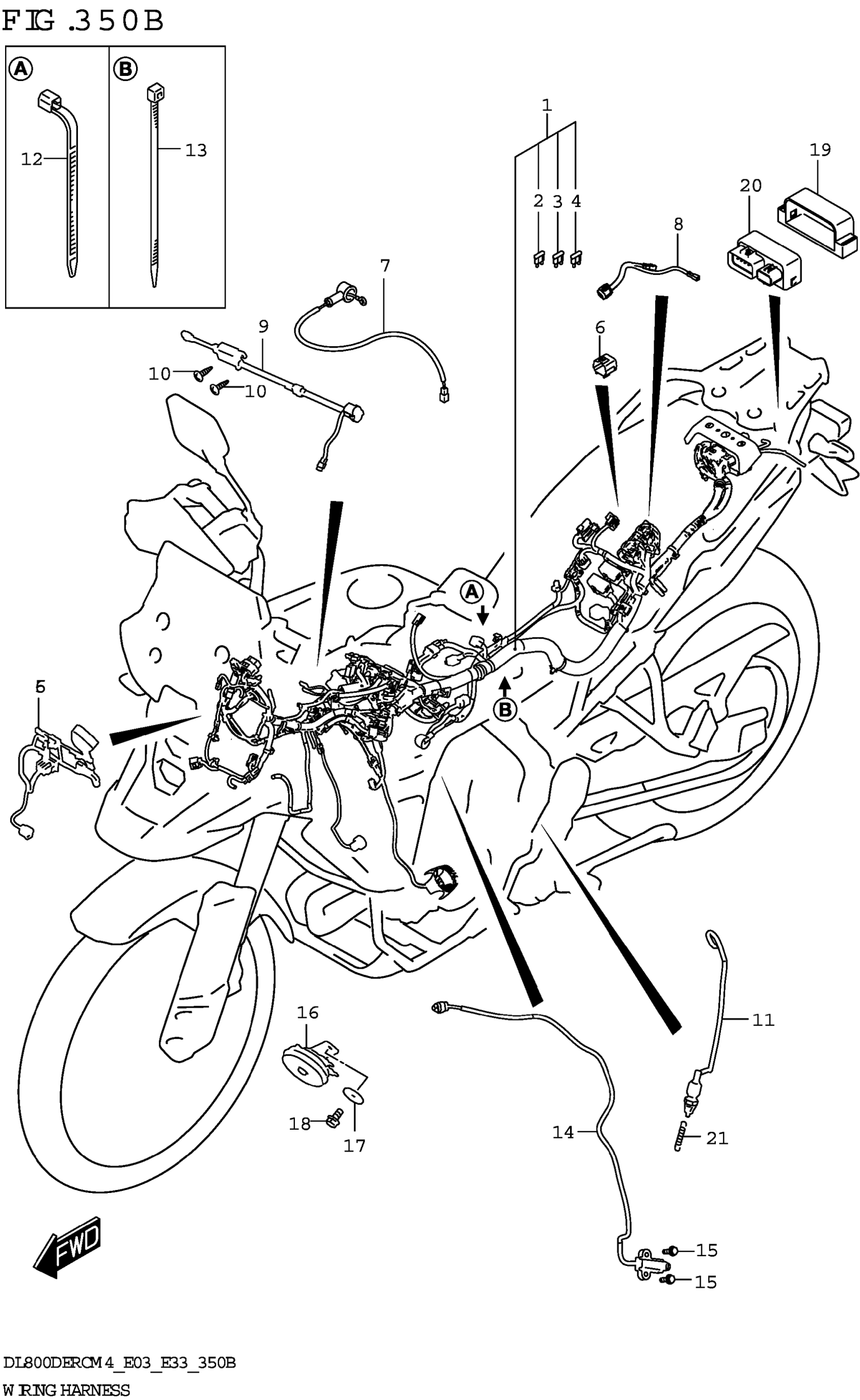

2024 Suzuki DL800DERCM4 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING NO.1

36610-25LB0

1
Out of stock

2

.FUSE (10A)

09481-10501

7
Out of stock

3

.FUSE (15A)

09481-15501

4
Out of stock

4

.FUSE (20A)

09481-20501

2
Out of stock

5

HARNESS,WIRING NO.2

36620-25LA0

1
Out of stock

6

CAP,OBD CONNECTOR

36654-28K00

1
Out of stock

7

WIRE,OIL PRESSURE SW LEAD

36851-25L00

1
Out of stock

8

WIRE,REAR COMB LAMP LEAD

36853-48KA0

1
Out of stock

9

SOCKET,USB

39105-25L00

1
Out of stock

10

SCREW

03541-0412A

2
Out of stock

11

SWITCH ASSY,STOP LAMP

37740-25L00

1
Out of stock

12

CLAMP (L:95)

09407-10403

2
Out of stock

13

CLAMP (L:145)

09407-14407

1
Out of stock

14

SWITCH ASSY,SIDE STAND

37840-25L00

1
Out of stock

15

BOLT

01550-0620B

2
Out of stock

16

HORN ASSY

38500-48H31

1
Out of stock

17

WASHER (8.5X30X2.3)

09160-08159

1
Out of stock

18

BOLT

01550-0816B

1
Out of stock

19

HOLDER,RELAY

36744-06L00

1
Out of stock

20

RELAY ASSY

38860-06L00

1
Out of stock

21

SPRING

09443-06054

1
Out of stock
← Turnsignal Lamp Carrier →
