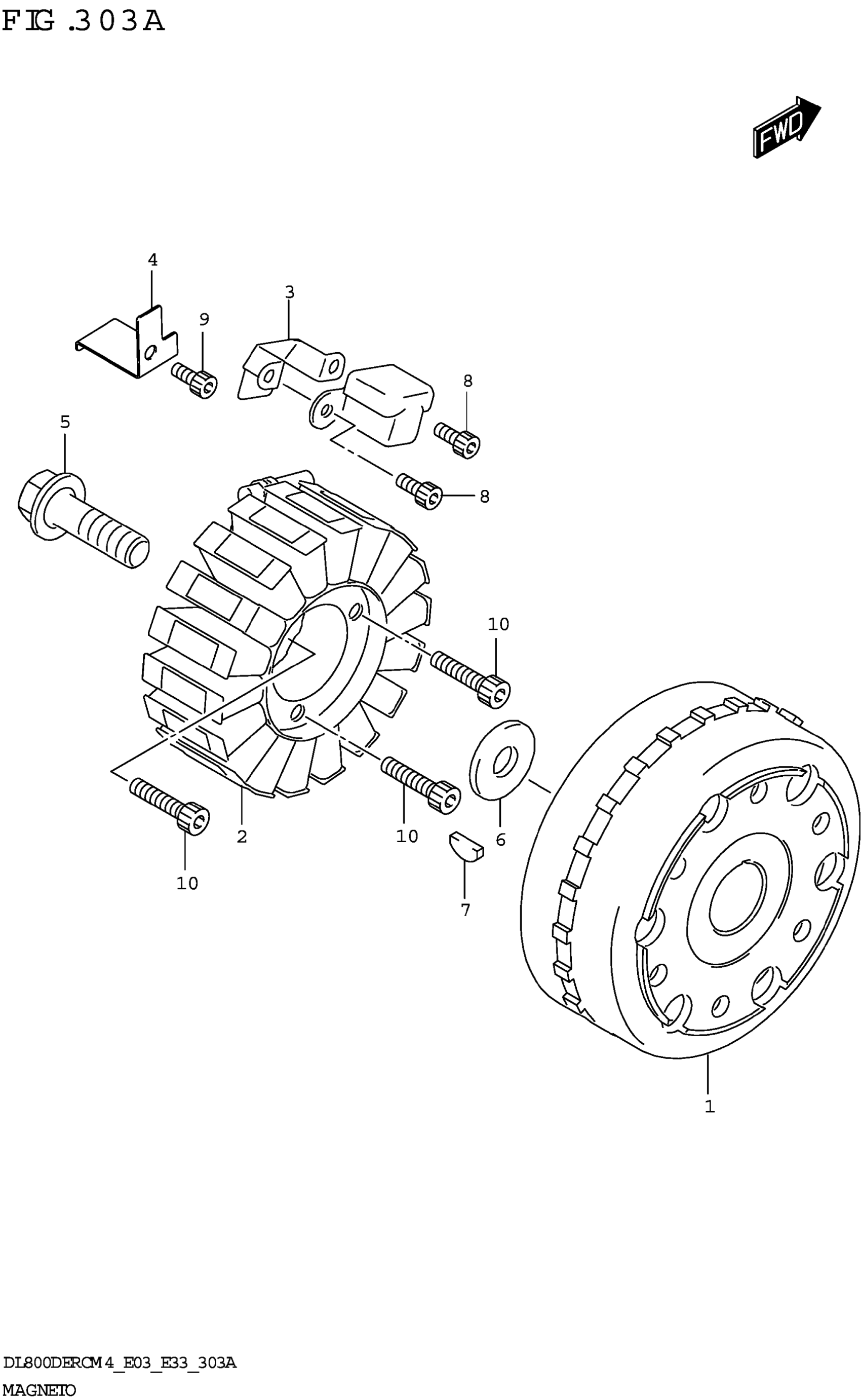

Suzuki DL800DERCM4 (2024) MAGNETO Diagram

#

Description
Price

1

ROTOR ASSY,MAGNETO

32102-25L00

$267.05

2

STATOR ASSY,MAGNETO

32101-25L00

$327.82

3

CLAMP,PULSER COIL LEAD

32155-25L00

$6.72

4

CLAMP,MAGNETO LEAD

32371-25L00

$6.15

5

BOLT

09103-12146

$4.68

6

WASHER (12X30X3.0)

09160-12036

$4.28

7

KEY (B:4,D:16,H6.5)

09420-04008

$3.08

8

BOLT

07130-0512A

$2.19

9

BOLT

07130-0512A

$2.19

10

BOLT

07130-0635A

$2.90
