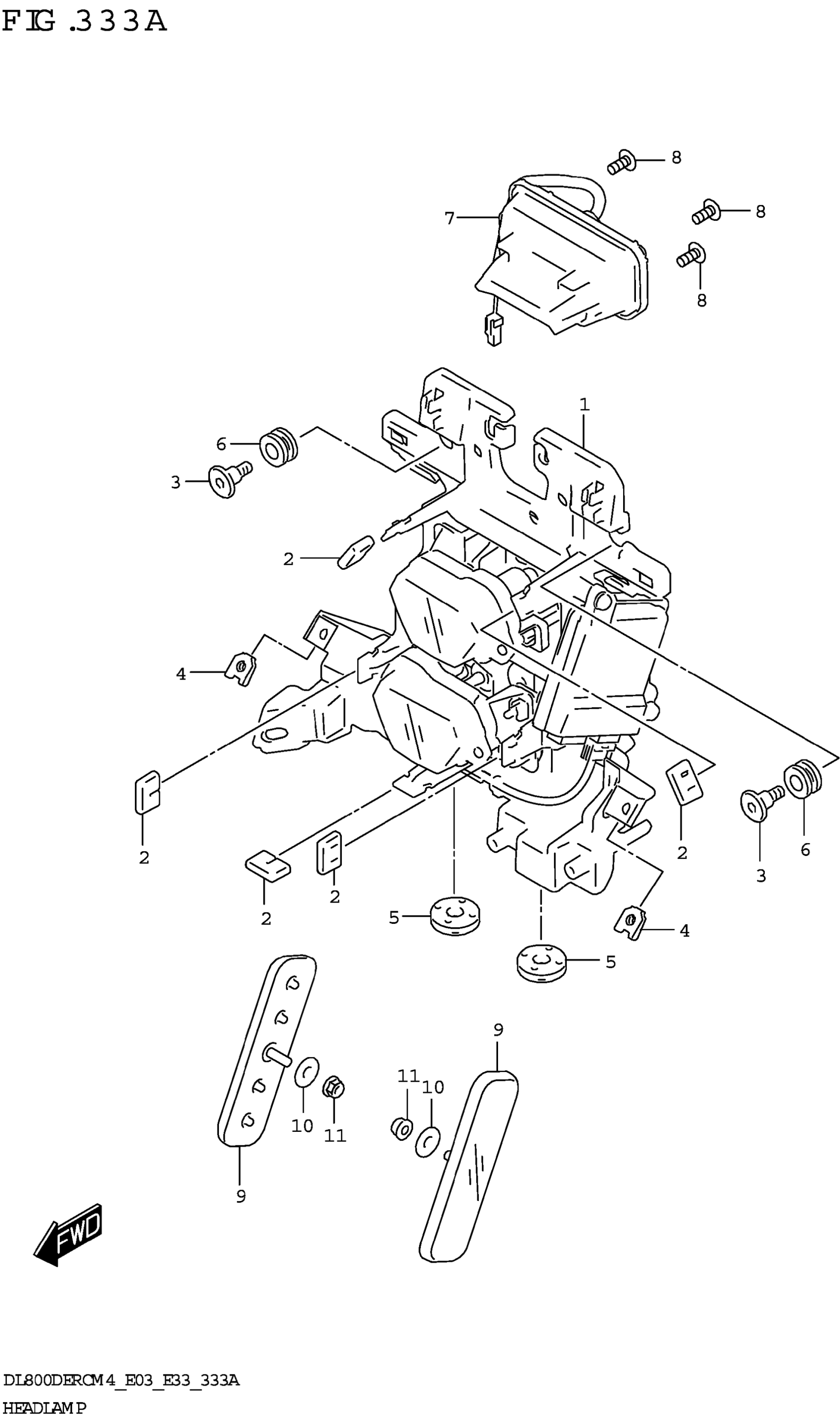

Suzuki DL800DERCM4 (2024) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-25L00

$913.33

2

CUSHION

35781-17K00

$10.92

3

SCREW (6X20)

09139-06206

$2.99

4

NUT (M5)

09148-05045

$2.51

5

CUSHION (8X26X7)

09320-08028

$2.80

6

CUSHION (9X18X10)

09320-09501

$2.06

7

LAMP ASSY,FRONT POSITION

36110-48K00

$200.33

8

SCREW

03541-0512A

$1.37

9

REFLEX REFLECTOR,FR SIDE

35950-25L00

$13.80

10

WASHER

09169-06076

$2.88

11

NUT

08319-3105A

$2.47
