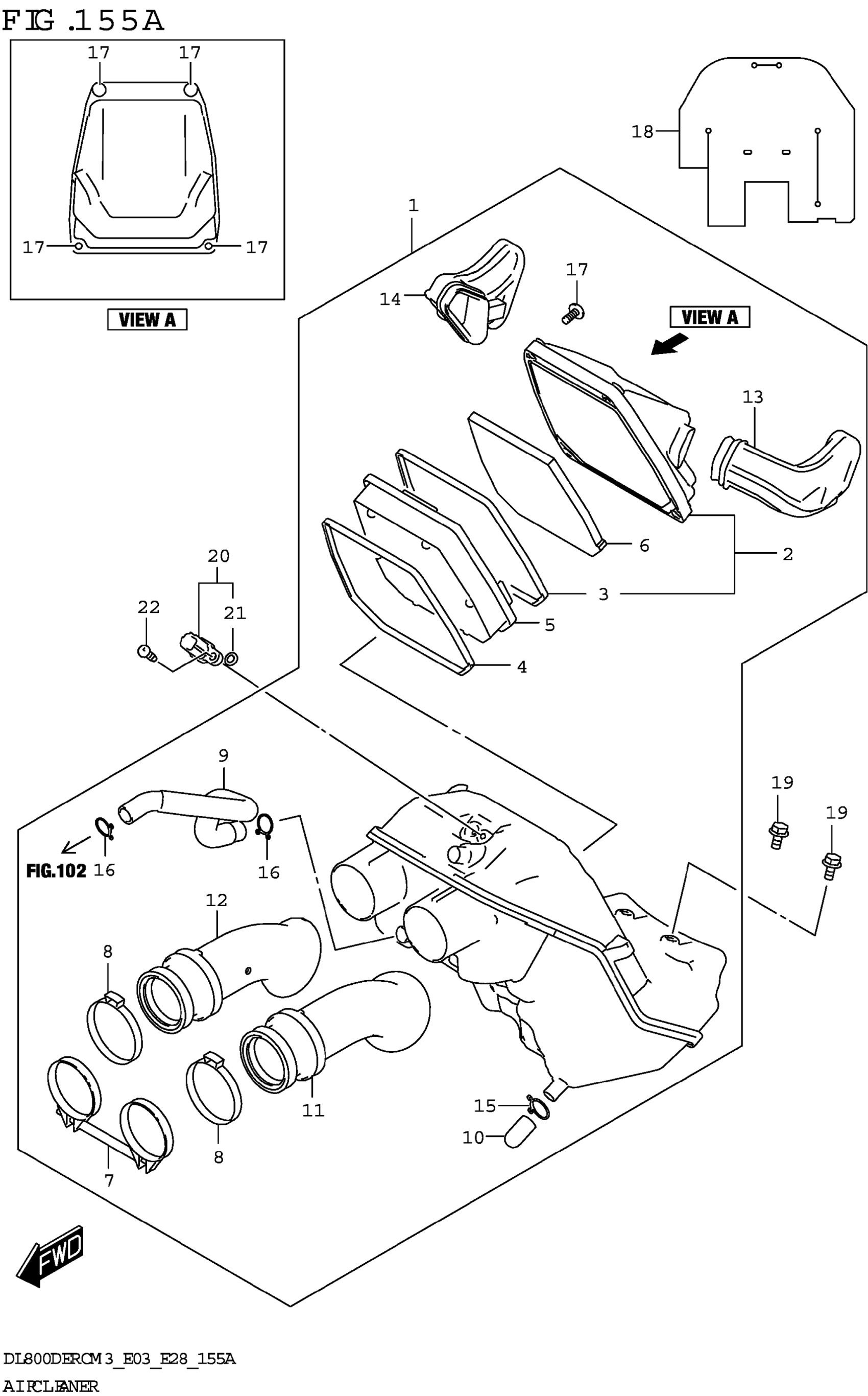

Find the part on the Air Cleaner diagram for your 2023 Suzuki DL800DERCM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki DL800DERCM3 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-25L00

1

$335.25

In stock

2

.CAP,AIR CLNR

13741-25L00

1

$21.72

In stock

3

..GASKET FILTER

13746-25L00

1

$8.85

In stock

4

..GASKET FILTER

13746-25L00

1

$8.85

In stock

5

.FILTER AIR CLNR

13780-25L00

1

$32.30

In stock

6

.PREFILTER

13786-25L00

1

$9.67

In stock

7

.CLAMP,AIR CLNR

13826-25L00

1

$53.82

In stock

8

.BAND,FRONT

13827-25L00

2

$9.45

In stock

9

.TUBE,BREATHER

13853-25L00

—
Out of stock

10

.PLUG

13878-10G01

1

$6.53

In stock

11

.TUBE,OUTLET L

13881-25L00

1

$31.40

In stock

12

.TUBE,OUTLET R

13882-25L00

1

$31.40

In stock

13

.TUBE,INLET L

13891-25L00

1

$27.37

In stock

14

.TUBE,INLET R

13892-25L00

1

$27.37

In stock

15

.CLIP (ID:14.5)

09401-14101

1
Out of stock

16

.CLIP (ID:16.5)

09401-16401

2

$3.10

In stock

17

SCREW

02142-0520A

4

$1.52

In stock

18

1

$16.97

In stock

19

BOLT

01550-0612A

2
Out of stock

20

SENSOR,AIR TEMP

13650-41F10

1

$71.40

In stock

21

O-RING

13655-41F10

1
Out of stock

22

SCREW

03511-0516A

1

$2.03

In stock
