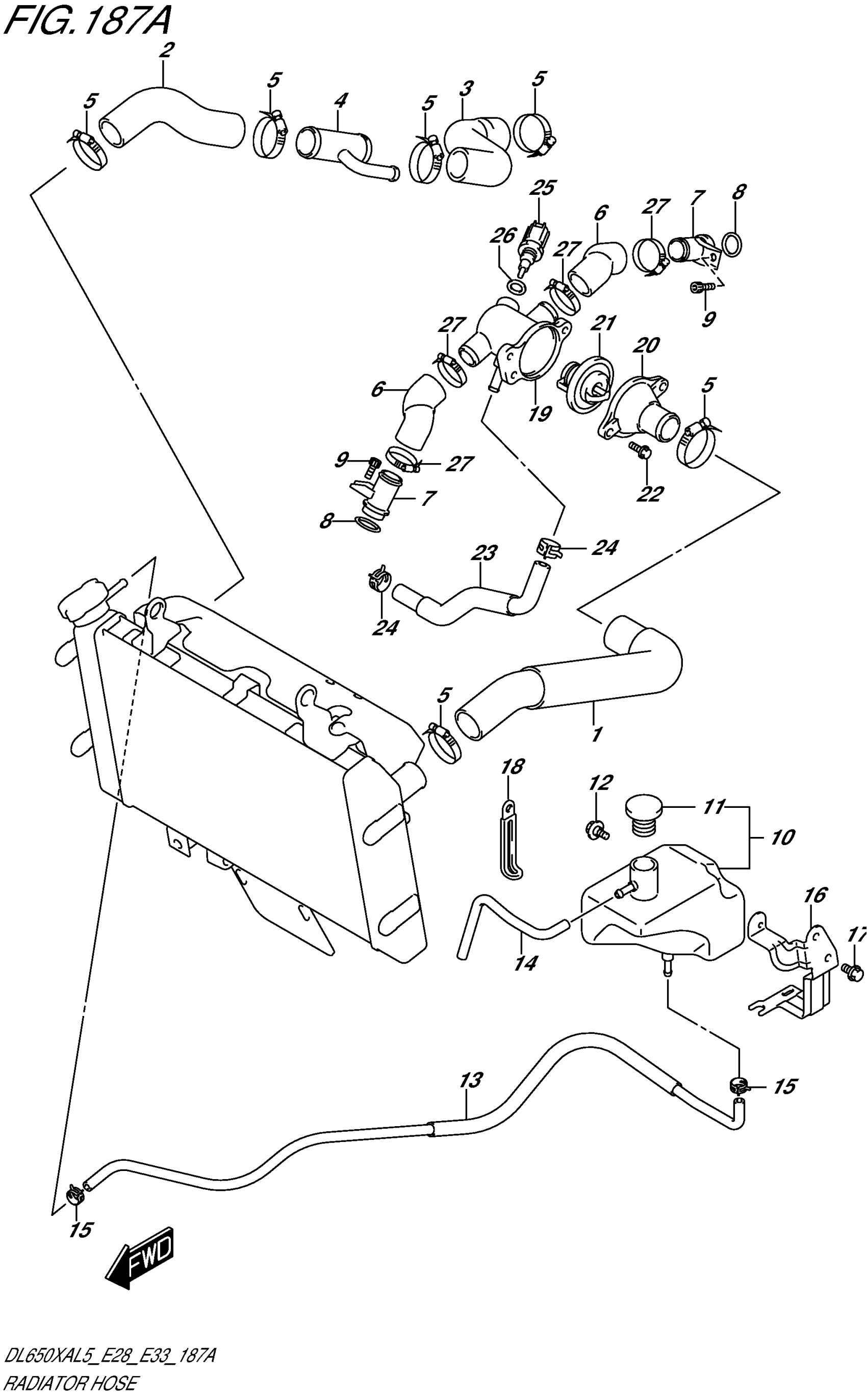

Suzuki DL650XAL5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-11J00

$69.27

2

HOSE, RADIATOR OUTLET NO.1

17852-44H20

$22.08

3

HOSE, RADIATOR OUTLET NO.2

17854-44H00

$20.55

4

UNION, WATER HOSE THREE WAY

17880-44H00

$46.00

5

CLAMP

09402-35501

$6.68

6

HOSE,CONNECTOR INLET

17853-19F00

$13.50

7

UNION, CONNECTOR HOSE

17890-06G20

$13.59

8

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

9

BOLT

07130-0612A

$2.50

10

TANK ASSY, RESERVOIR

17910-27G10

$63.72

11

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

12

BOLT (6X12)

09111-06085

$4.16

13

HOSE SET, RESERVOIR TANK INLE

17900-27810

$24.83

14

HOSE, RESERVOIR TANK OVFL

17982-15H00

Unavailable

15

CLIP

09401-08411

$1.77

16

BRACKET, RESERVOIR TANK

17920-27G10

Unavailable

17

BOLT

01550-0610A

$1.97

18

CLAMP (L:45)

09404-06429

$1.82

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

$33.12

21

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$23.59

22

BOLT

01547-0616A

$2.01

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$23.30

24

CLIP

09401-12414

$2.98

25

SENSOR, WATER TEMPERATURE

13650-49X00

$82.56

26

GASKET (12X17X1)

09168-12017

$1.97

27

CLAMP

09402-28513

$6.31
