2015 Suzuki DL650XAL5 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

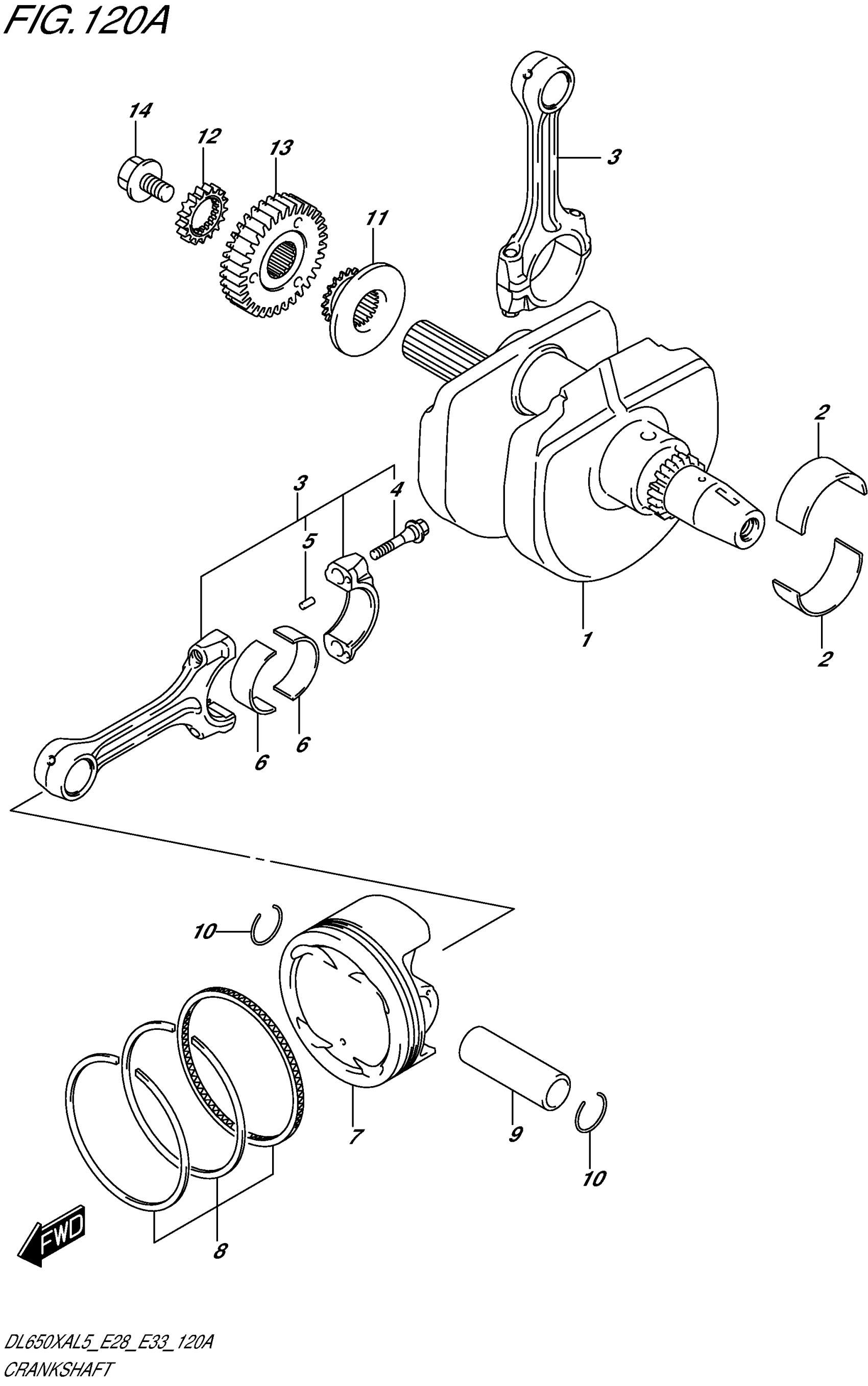

2015 Suzuki DL650XAL5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

12220-44H10

1
Out of stock

2

BEARING,CRANKSHAFT (GREEN) This part replaces 12229-44H00-0A0.

12229-44H10-0A0

4
Out of stock

2

BEARING,CRANKSHAFT (BLACK) This part replaces 12229-44H00-0B0.

12229-44H10-0B0

4
Out of stock

2

BEARING, CRANKSHAFT (BROWN)

12229-44H00-0C0

4
Out of stock

3

CONNECTING ROD ASSY

12160-17G10

2
Out of stock

4

.BOLT,CONNECTING ROD

12163-24F10

4
Out of stock

5

PIN (4X13.8)

04221-04089

4
Out of stock

6

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

4
Out of stock

6

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

4
Out of stock

6

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

4
Out of stock

6

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

4
Out of stock

7

PISTON (YELLOW)

12111-44H20-0F0

2
Out of stock

8

RING SET, PISTON

12140-15H10

2
Out of stock

9

PIN,PISTON

12151-05A00

2
Out of stock

10

SNAP RING

09381-20004

4
Out of stock

11

SPROCKET,CAM CHAIN DRIVE (NT:

12731-19F00

1
Out of stock

12

GEAR,WATER PUMP DRIVE (NT:17)

17451-17G00

1
Out of stock

13

GEAR ASSY,PRIMARY DRIVE (NT:3

21100-44H00

1
Out of stock

14

BOLT (10X19)

09103-10338

1
Out of stock
