2015 Suzuki DL650XAL5 Crankcase Cover Diagram

← All diagrams

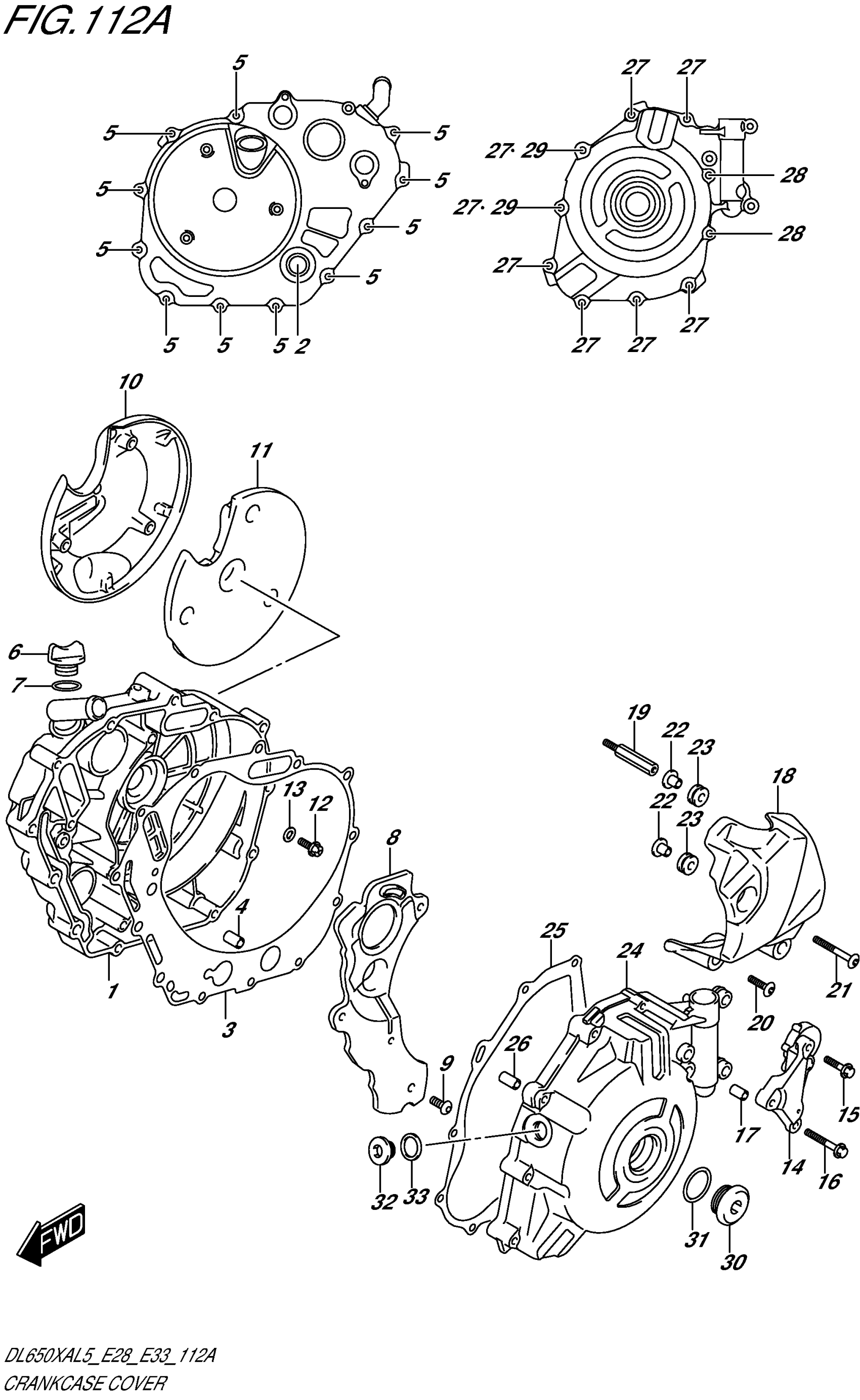

Find the part on the Crankcase Cover diagram for your 2015 Suzuki DL650XAL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DL650XAL5 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-44H10

1
Out of stock

2

LENS, OIL LEVEL CHECK

11971-33210

1
Out of stock

3

.GASKET,CLUTCH COVER

11482-44H00

1
Out of stock

4

PIN

04211-09149

2
Out of stock

5

BOLT (6X35)

09103-06214

11
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

SEPARATOR,OIL This part replaces 11343-44H00.

11343-44H01

1
Out of stock

9

BOLT (6X12)

09106-06098

4
Out of stock

10

COVER, CLUTCH OUTER

11342-11J00

1
Out of stock

11

DAMPER

11344-11J00

1
Out of stock

12

BOLT (6X16)

09103-06174

3
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

14

COVER, ENGINE SPROCKET INNER

11361-44H00

1
Out of stock

15

BOLT

01547-0620A

1
Out of stock

16

BOLT

01547-0635A

1
Out of stock

17

PIN

04211-09129

2
Out of stock

18

COVER, ENGINE SPROCKET OUTER

11371-11J00

1
Out of stock

19

BOLT

11372-22H00

2
Out of stock

20

SCREW (6X20)

09139-06028

2

$3.58

In stock

21

SCREW (6X40)

09139-06105

1
Out of stock

22

WASHER

09169-06062

3
Out of stock

23

CUSHION

09320-09016

3
Out of stock

24

COVER, MAGNETO

11351-44H00

1
Out of stock

25

.GASKET,MAGNETO COVER

11483-19F00

1
Out of stock

26

PIN

04211-09149

2
Out of stock

27

BOLT (6X35)

09103-06214

8
Out of stock

28

BOLT (6X65)

09103-06239

2
Out of stock

29

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

30

PLUG (26X9)

09259-26011

1
Out of stock

31

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

32

PLUG (16X8)

09248-16012

1
Out of stock

33

GASKET (16X22X2)

09168-16002

1
Out of stock
