2025 Suzuki DL650AM5 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2025 Suzuki DL650AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

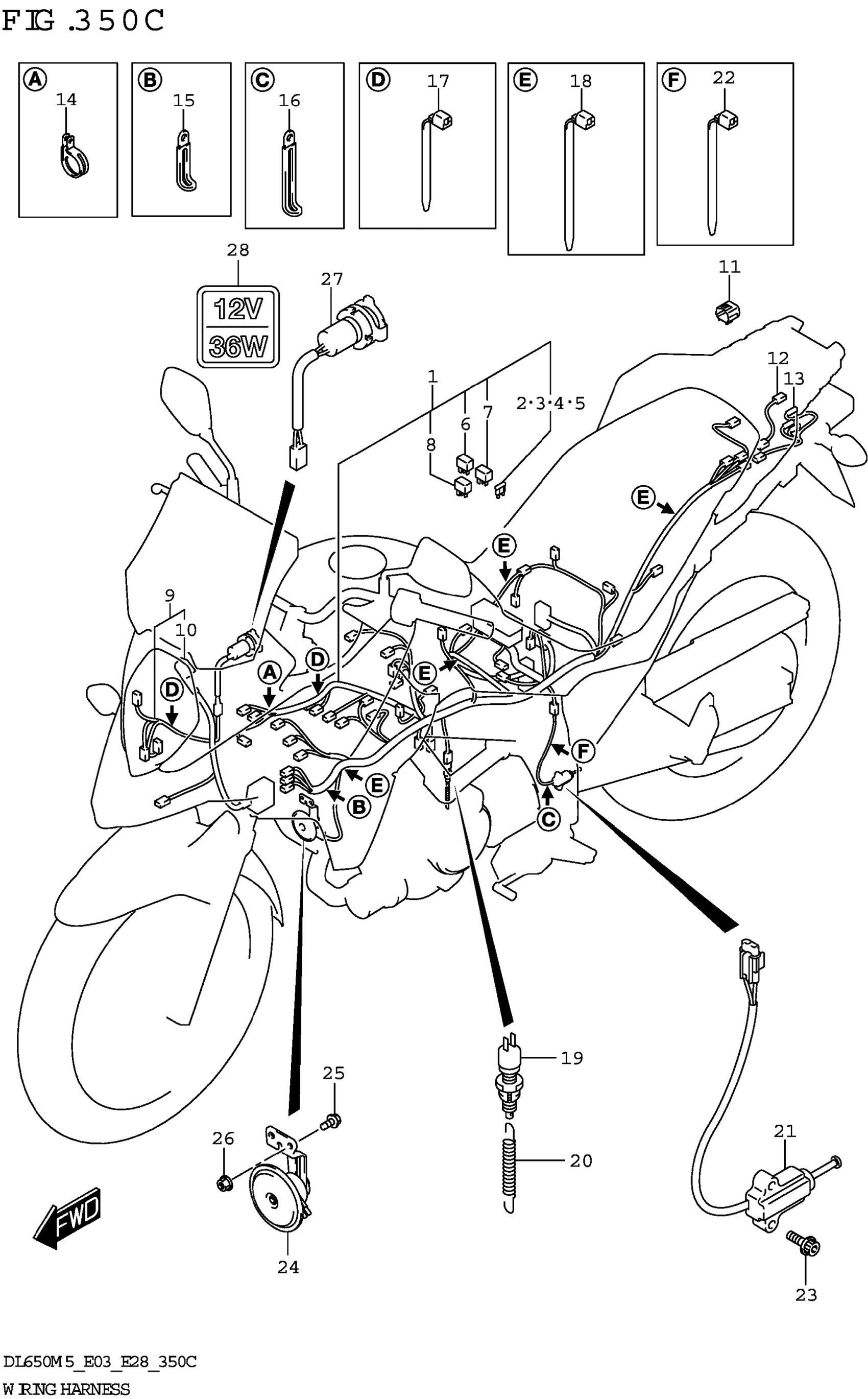

2025 Suzuki DL650AM5 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-28K21

—
Out of stock

2

.FUSE (3A)

09481-03501

1
Out of stock

3

.FUSE (10A)

09481-10504

2
Out of stock

4

.FUSE (15A)

09481-15504

5
Out of stock

5

.FUSE (25A)

09481-25504

1
Out of stock

6

.RELAY ASSY | FUEL PUMP

38860-76F01

1
Out of stock

7

.RELAY ASSY | FAN MOTOR

38860-76F01

1
Out of stock

8

.RELAY ASSY | SIDE STAND

38860-76F01

1
Out of stock

9

HARNESS, WIRING NO.2

36620-28K00

1
Out of stock

10

.COVER,CONNECTOR

36618-41G00

1
Out of stock

11

CAP,TS

36654-06J01

1
Out of stock

12

WIRE, REAR COMB LEAD

36853-28K00

1
Out of stock

13

WIRE, REAR TURNSIGNAL LEAD

36856-28K00

1
Out of stock

14

CLAMP

09403-26402

1
Out of stock

15

CLAMP (L:80)

09404-06030

—
Out of stock

16

CLAMP (L:45)

09404-06429

1
Out of stock

17

CLAMP (L:125)

09407-14403

2
Out of stock

18

CLAMP (L:165)

09407-18402

4
Out of stock

19

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

20

SPRING

09443-06012

1
Out of stock

21

SWITCH ASSY,SIDE STAND

37840-06G02

1
Out of stock

22

CLAMP (L:100)

09407-10404

1
Out of stock

23

BOLT

01550-0616A

2
Out of stock

24

HORN ASSY

38500-11J00

1
Out of stock

25

BOLT (6X16)

09118-06017

2
Out of stock

26

NUT (6X12)

08316-1006A

2
Out of stock

27

TERMINAL,POWER SOURCE

38850-31J00

1

$82.92

In stock

28

LABEL,MAX AMP

38852-28K01

1
Out of stock
