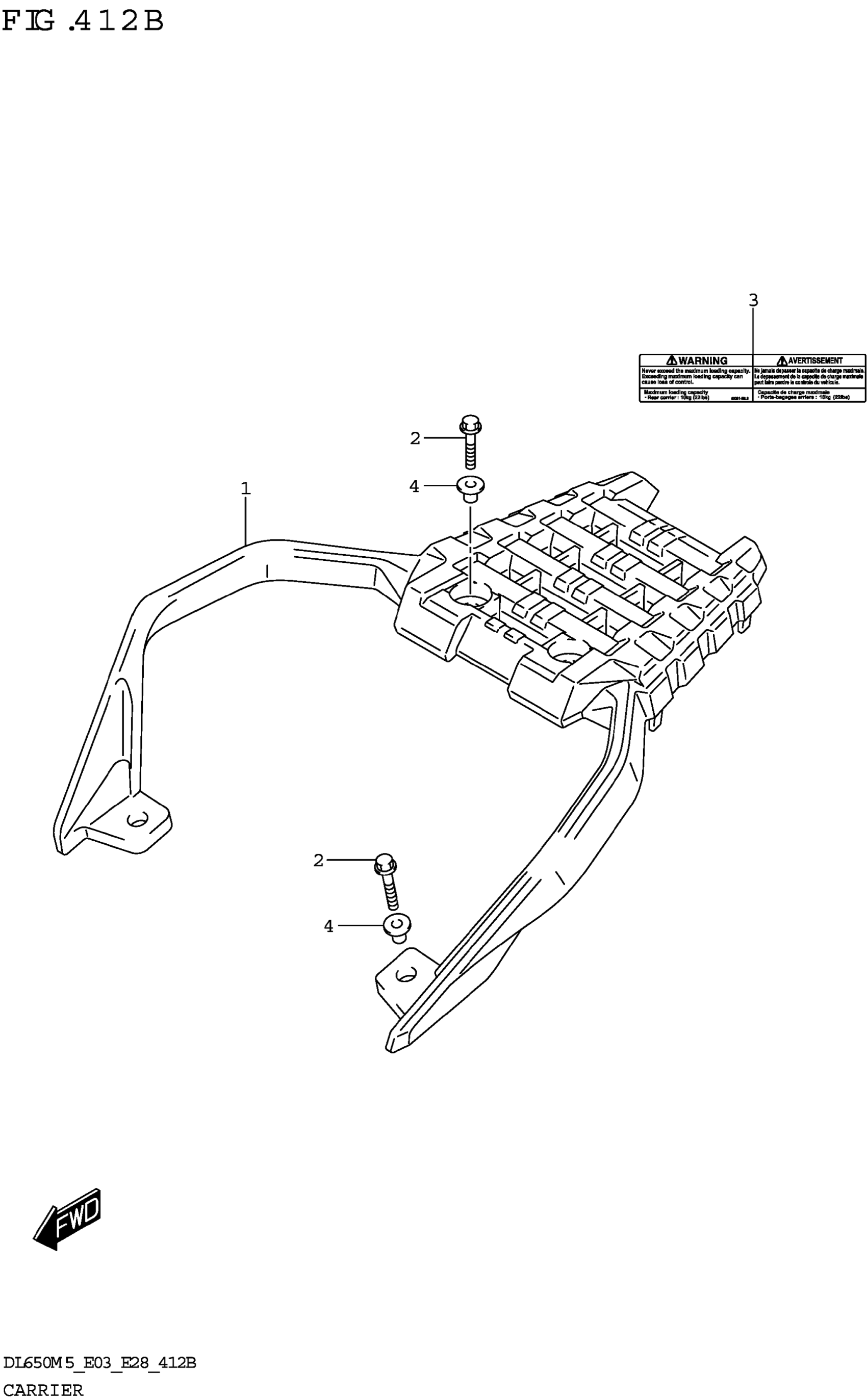

Find the part on the Carrier diagram for your 2025 Suzuki DL650AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL650AM5 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER,SPORT

46311-31J20

1
Out of stock

2

BOLT (8X35)

09103-08512

4
Out of stock

3

LABEL,LOADING CAPACITY

68391-06L90

1
Out of stock

4

WASHER

09169-08049

4
Out of stock
