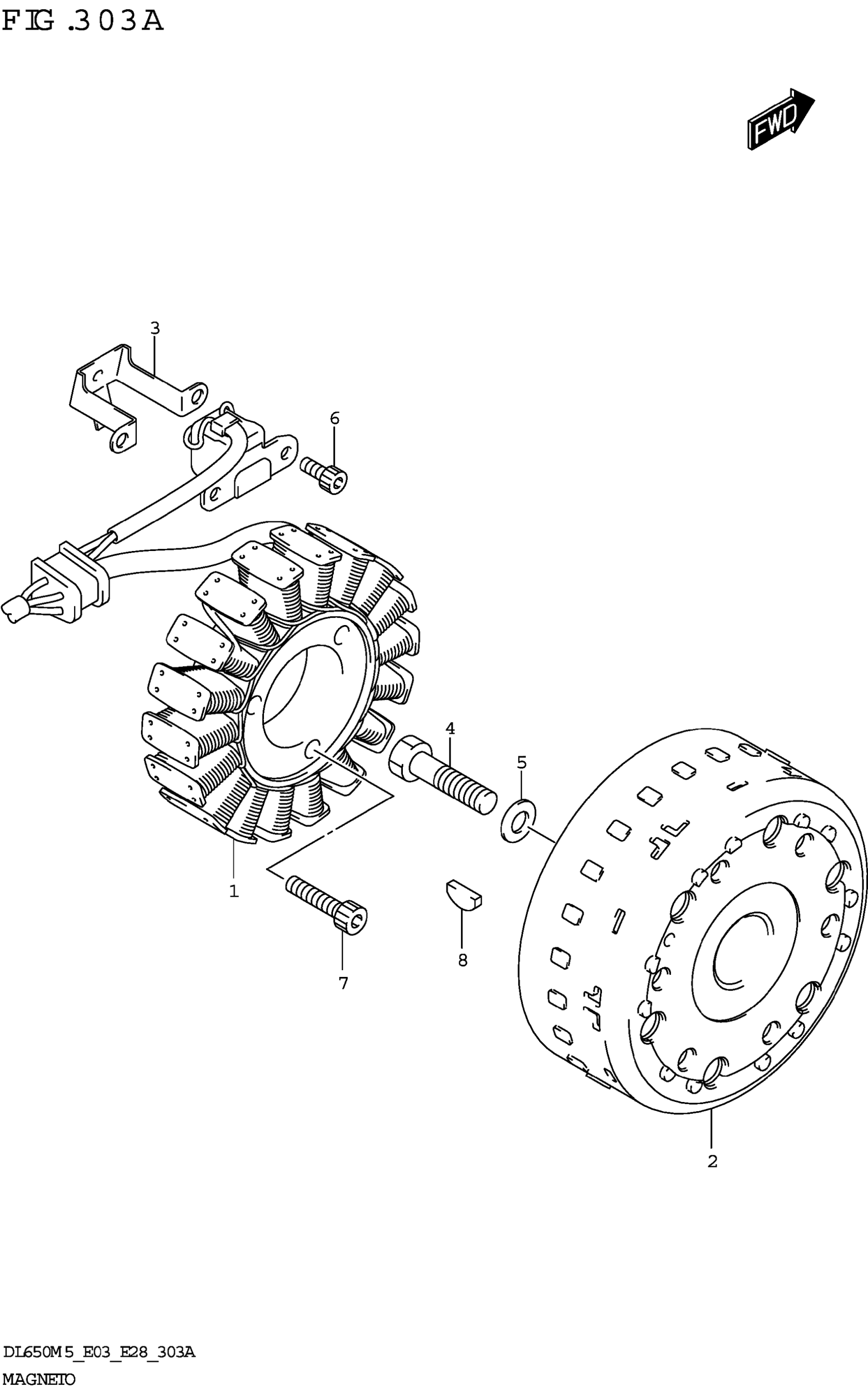

Suzuki DL650AM5 (2025) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-28K00

$438.98

2

ROTOR ASSY

32102-28K00

Unavailable

3

CLAMP,MAGNETO LEAD

32371-19F10

Unavailable

4

BOLT (12X40)

09103-12004

$4.35

5

WASHER (12X30X3.0)

09160-12036

$4.28

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$2.90

8

KEY (B:4,D:16,H6.5)

09420-04008

$3.08
