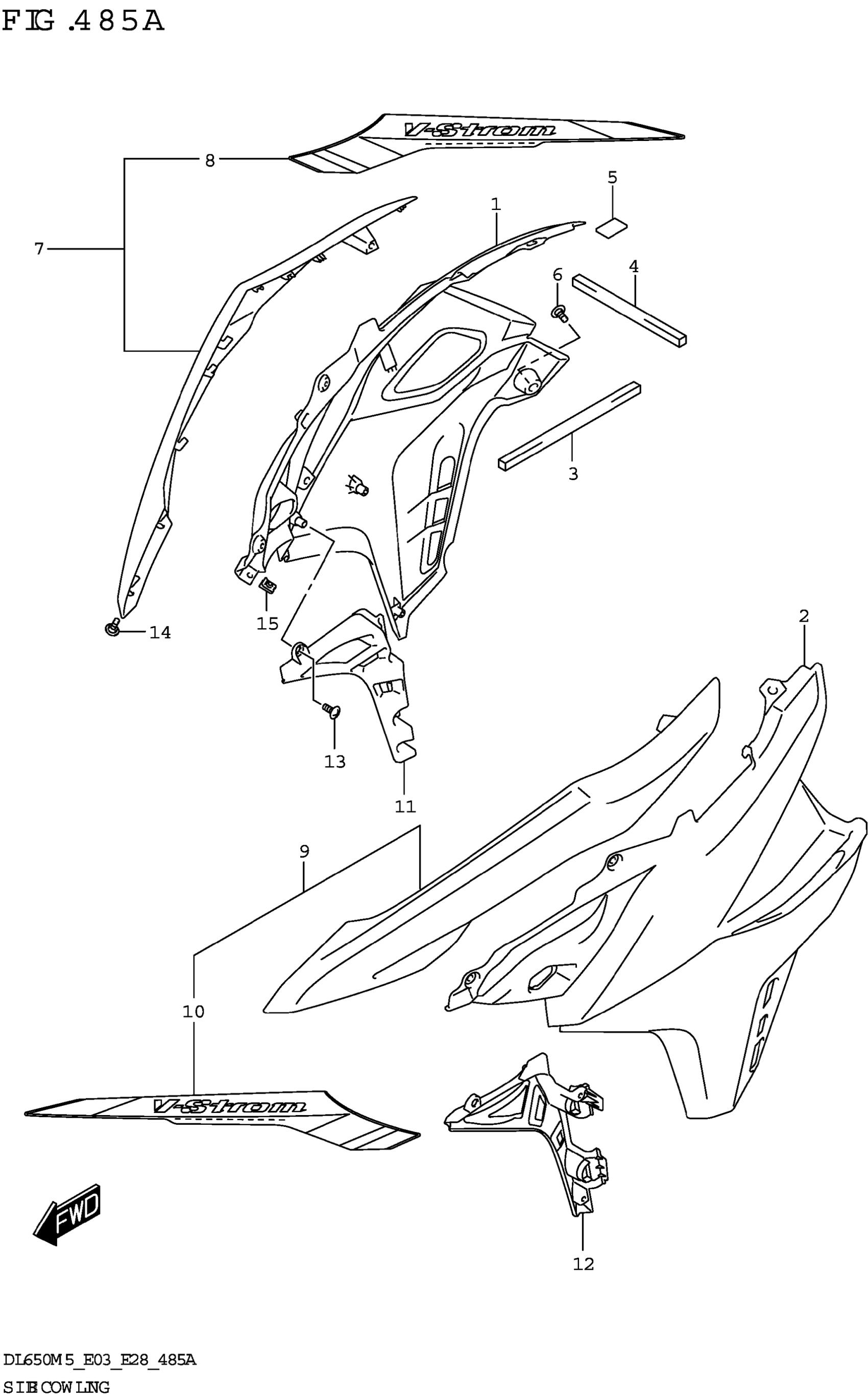

Suzuki DL650AM5 (2025) SIDE COWLING (DL650A) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$100.05

2

COVER, SIDE COWL LH

94414-28K00

$104.88

3

CUSHION (5X120X6)

44176-31J00

$3.10

4

CUSHION

44178-31J00

$3.25

5

CUSHION | 0X4) CUT AS REQUIRED This part replaces 47829-10F00.

44612-13600

$5.27

6

SCREW (6X12)

47913-31J00

$2.26

7-1

COVER, SIDE COWL RH (BLUE) | BODY COLOR:YKY

94420-28KA0-YKY

$102.27

7-2

COVER, SIDE COWL RH (GRAY) | BODY COLOR:YUD

94420-28KA0-YUD

$102.27

7-3

COVER, SIDE COWL RH (BLACK) | BODY COLOR:YVB

94420-28KA0-YVB

$102.27

8-1

.TAPE, COVER SIDE RH | CK,BLUE) BODY COLOR:YKY

68275-28KA0-BUA

$33.27

8-2

.TAPE, COVER SIDE RH | CK,GRAY) BODY COLOR:YUD

68275-28KA0-CQR

$33.27

8-3

.TAPE, COVER SIDE RH | BLACK) BODY COLOR:YVB

68275-28KA0-CHP

$33.27

9-1

COVER, SIDE COWL LH (BLUE) | BODY COLOR:YKY

94430-28KA0-YKY

$104.20

9-2

COVER, SIDE COWL LH (GRAY) | BODY COLOR:YUD

94430-28KA0-YUD

$104.20

9-3

COVER, SIDE COWL LH (BLACK) | BODY COLOR:YVB

94430-28KA0-YVB

$104.20

10-1

.TAPE, COVER SIDE LH | CK,BLUE) BODY COLOR:YKY

68285-28KA0-BUA

$33.27

10-2

.TAPE, COVER SIDE LH | CK,GRAY) BODY COLOR:YUD

68285-28KA0-CQR

$33.27

10-3

.TAPE, COVER SIDE LH | BLACK) BODY COLOR:YVB

68285-28KA0-CHP

$33.27

11

COVER, SIDE COWL INNER RH

94461-28K00

$16.30

12

COVER, SIDE COWL INNER LH

94462-28K00

$16.00

13

SCREW

03541-0512A

$1.37

14

SCREW (5X13)

09139-05091

$2.01

15

NUT (M5)

09148-05052

$3.04
