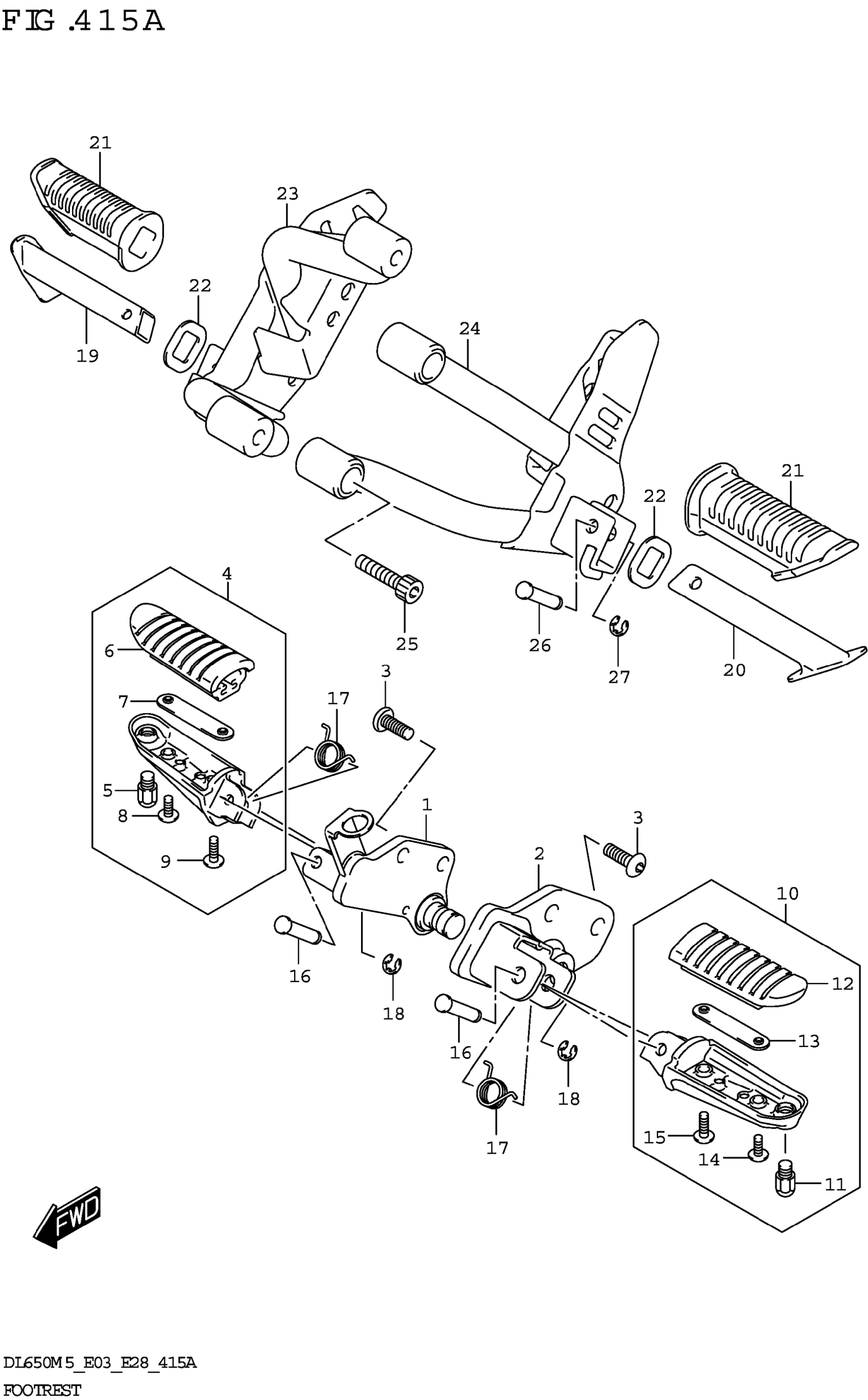

Find the part on the Footrest diagram for your 2025 Suzuki DL650AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL650AM5 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FR FOOTREST RH

43510-11J00-YAP

1
Out of stock

2

BRACKET, FR FOOTREST LH

43520-11J00-YAP

1
Out of stock

3

BOLT (8X23)

09106-08150

4
Out of stock

4

FOOTREST ASSY RH

43501-06G01

1
Out of stock

5

.BOLT,BANK SENSOR

43576-07D01

1
Out of stock

6

.RUBBER,FOOTREST

43551-06G00

1
Out of stock

7

.PLATE,FR FOOTREST RUBBER

43552-06G00

1
Out of stock

8

.SCREW

02142-0516B

1
Out of stock

9

SCREW

02142-0520B

1
Out of stock

10

FOOTREST ASSY, LH

43502-06G01

1
Out of stock

11

.BOLT,BANK SENSOR

43576-07D01

1
Out of stock

12

.RUBBER,FOOTREST

43551-06G00

1
Out of stock

13

.PLATE,FR FOOTREST RUBBER

43552-06G00

1
Out of stock

14

.SCREW

02142-0516B

1
Out of stock

15

SCREW

02142-0520B

1
Out of stock

16

PIN (8X33.2)

09208-08010

2
Out of stock

17

SPRING

09448-18022

2
Out of stock

18

E-RING

08332-1106B

2
Out of stock

19

1

$73.87

In stock

20

1

$70.48

In stock

21

2

$8.37

In stock

22

WASHER,FOOTREST RUBBER

43631-34A01

2
Out of stock

23

1

$171.00

In stock

24

1

$174.22

In stock

25

BOLT (8X40)

09106-08074

4
Out of stock

26

PIN (6X29.5)

09208-06008

2
Out of stock

27

E-RING

08332-1104A

2
Out of stock
