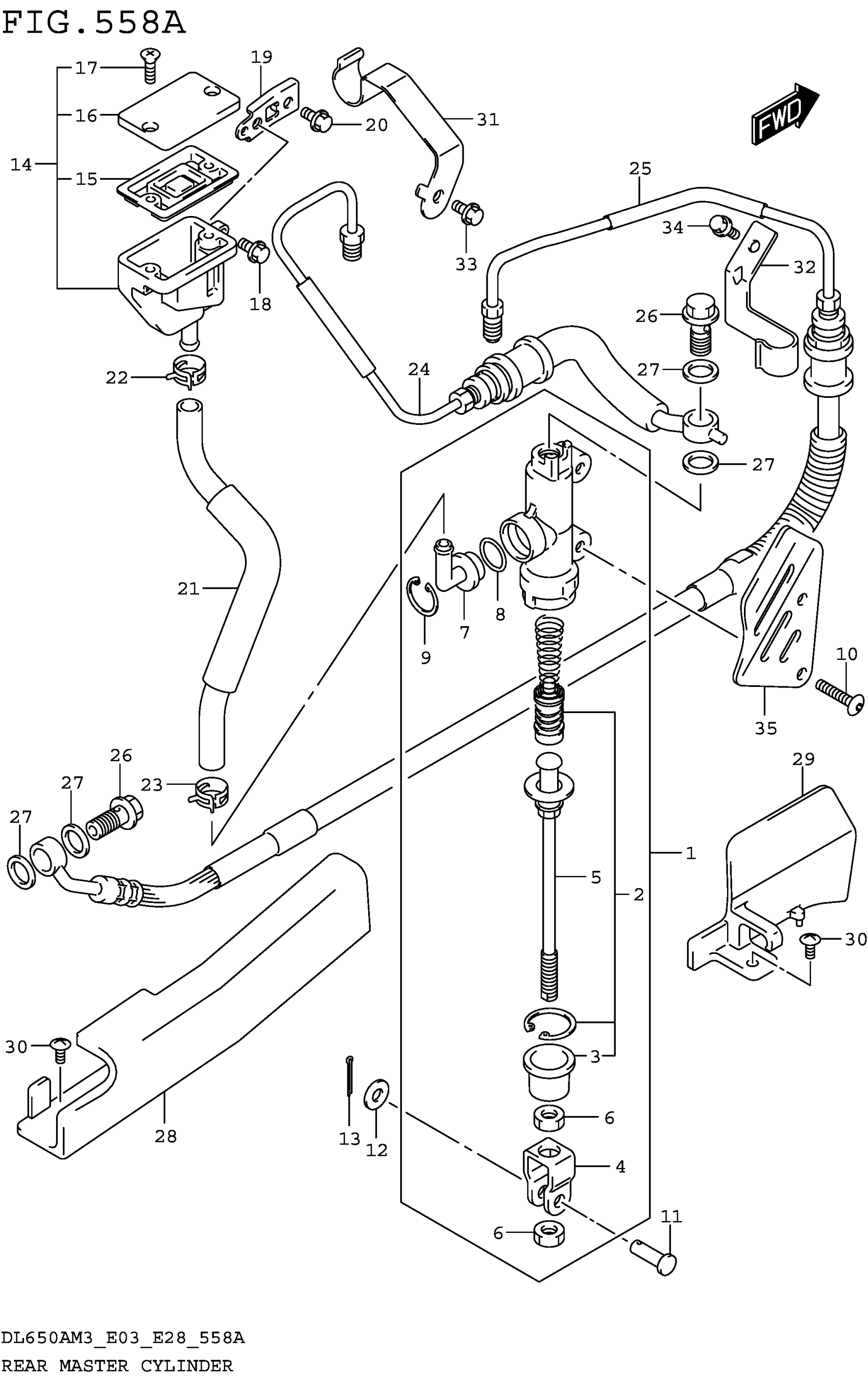

Suzuki DL650AM3 (2023) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, RR MASTER

69600-06G00

$335.50

2

.PISTON/CUP SET

69600-34821

$24.34

3

.BOOT

69691-04A00

$5.83

4

.YOKE

69692-19A00

$19.03

5

.ROD, PUSH

69670-03G00

$49.73

6

.NUT

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.42

8

.O-RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.73

10

SCREW (6X25)

09139-06192

$2.92

11

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

12

WASHER

08322-0106A

$1.83

13

PIN

04111-2015A

$1.22

14

TANK ASSY,RR RESERVOIR

69740-01D02

$64.52

15

.DIAPHRAGM

59667-04700

$8.95

16

.CAP

59669-05D00

$15.78

17

.SCREW

69689-04A00

$2.15

18

BOLT

01547-0612A

$2.01

19

BRACKET, RR RESERVOIR TANK

69750-28K00

Unavailable

20

BOLT

01547-0612A

$2.01

21

HOSE, RR RESERVOIR TANK

69730-28K00

Unavailable

22

CLIP (ID:13.2) | UPPER

09401-13417

$2.24

23

CLIP (ID:12) | LOWER

09401-12404

$2.37

24

HOSE ASSY, RR BK MASTER TO HU

69200-28K01

Unavailable

25

HOSE ASSY, RR BRAKE NO.2

69400-11J01

$154.83

26

UNION (10X1.25X22)

09360-10062

$5.81

27

WASHER (10X15X1.5)

09161-10009

$1.83

28

GUIDE, RR BRAKE HOSE

61196-27G20

$22.87

29

GUIDE, RR BRAKE HOSE FR

61196-06G10

$21.88

30

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

31

CLAMP, RR BRAKE HOSE

69260-11J00

Unavailable

32

CLAMP, RR BRAKE HOSE NO.2

69266-27G00

Unavailable

33

BOLT

01547-0610B

$2.47

34

BOLT

01547-0612A

$2.01

35

COVER, RR MASTER CYLINDER

69641-06G00

Unavailable
