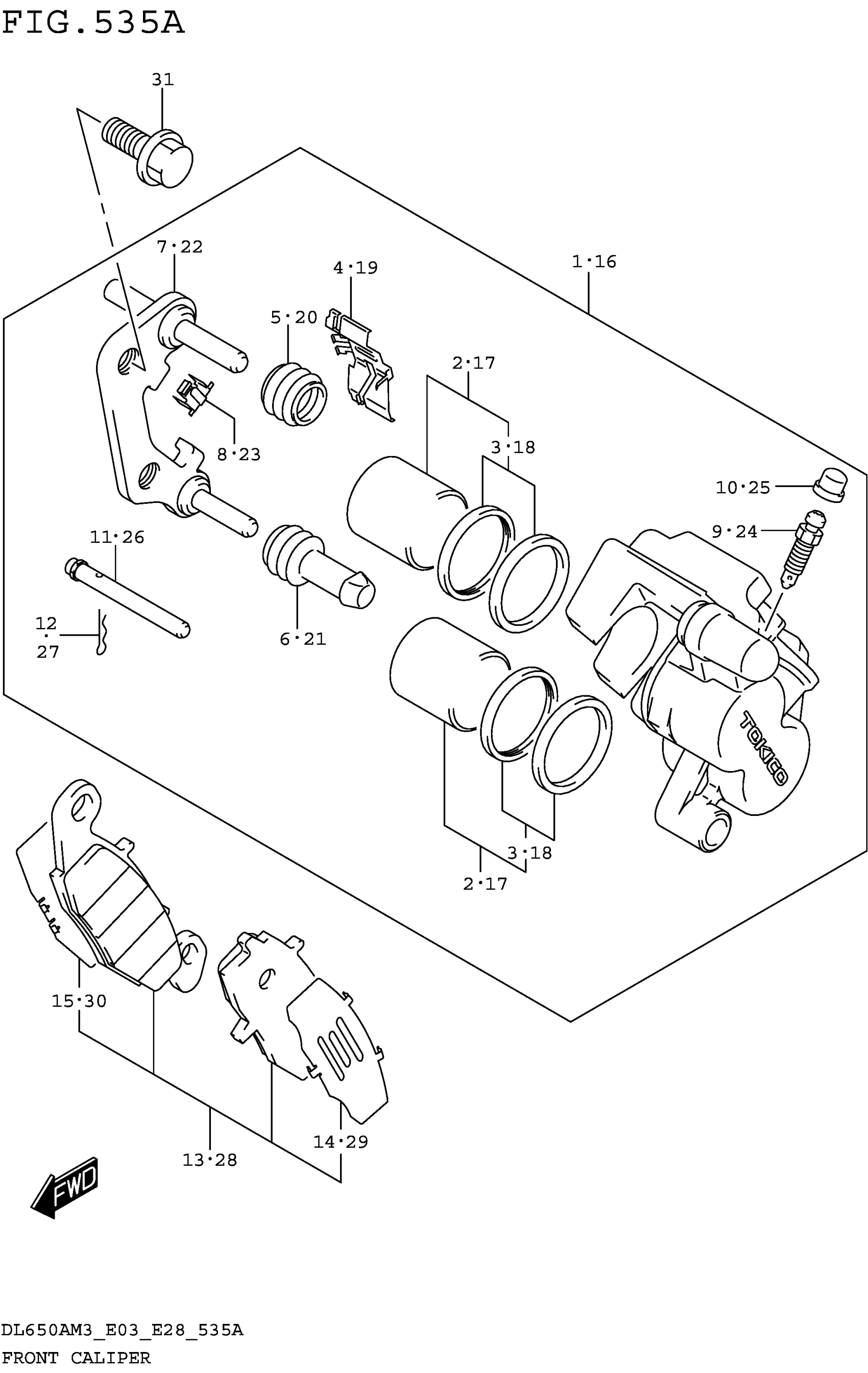

Suzuki DL650AM3 (2023) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-33DQ0-999

$442.65

2

.PISTON SET

59300-01820

$101.83

3

..SEAL SET, PISTON

59100-04851

$32.70

4

.SPRING, PAD RH

59115-33D00

$19.78

5

.BOOT,AXLE

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER, CALIPER RH

59150-33D01

$123.97

8

.GUIDE, PAD

59116-33D00

$7.51

9

.BLEEDER

59121-18410

$7.99

10

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD & SHIM SET RH

59102-33870

$53.64

14

.SHIM, PAD

59171-33D00

$16.77

15

.SHIM, PAD NO.2

59172-33D00

$18.93

16

CALIPER ASSY, FRONT LH

59300-33DQ0-999

$442.65

17

.PISTON SET

59300-01820

$101.83

18

..SEAL SET, PISTON

59100-04851

$32.70

19

.SPRING, PAD LH

59315-33D00

$14.03

20

.BOOT,AXLE

59112-44B00

$8.15

21

.INSULATOR, AXLE

59313-36500

$5.48

22

.CARRIER, CALIPER LH

59350-33D01

$123.97

23

.GUIDE, PAD

59116-33D00

$7.51

24

.BLEEDER

59121-18410

$7.99

25

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.73

26

.PIN, PAD

59141-44B01

$8.56

27

.CLIP, PAD PIN

69142-45000

$3.97

28

PAD & SHIM SET LH

59302-33850

$55.16

29

.SHIM, PAD

59171-33D00

$16.77

30

.SHIM, PAD NO.2

59172-33D00

$18.93

31

BOLT (10X20)

01550-1025A

$2.80
