2023 Suzuki DL650AM3 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2023 Suzuki DL650AM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

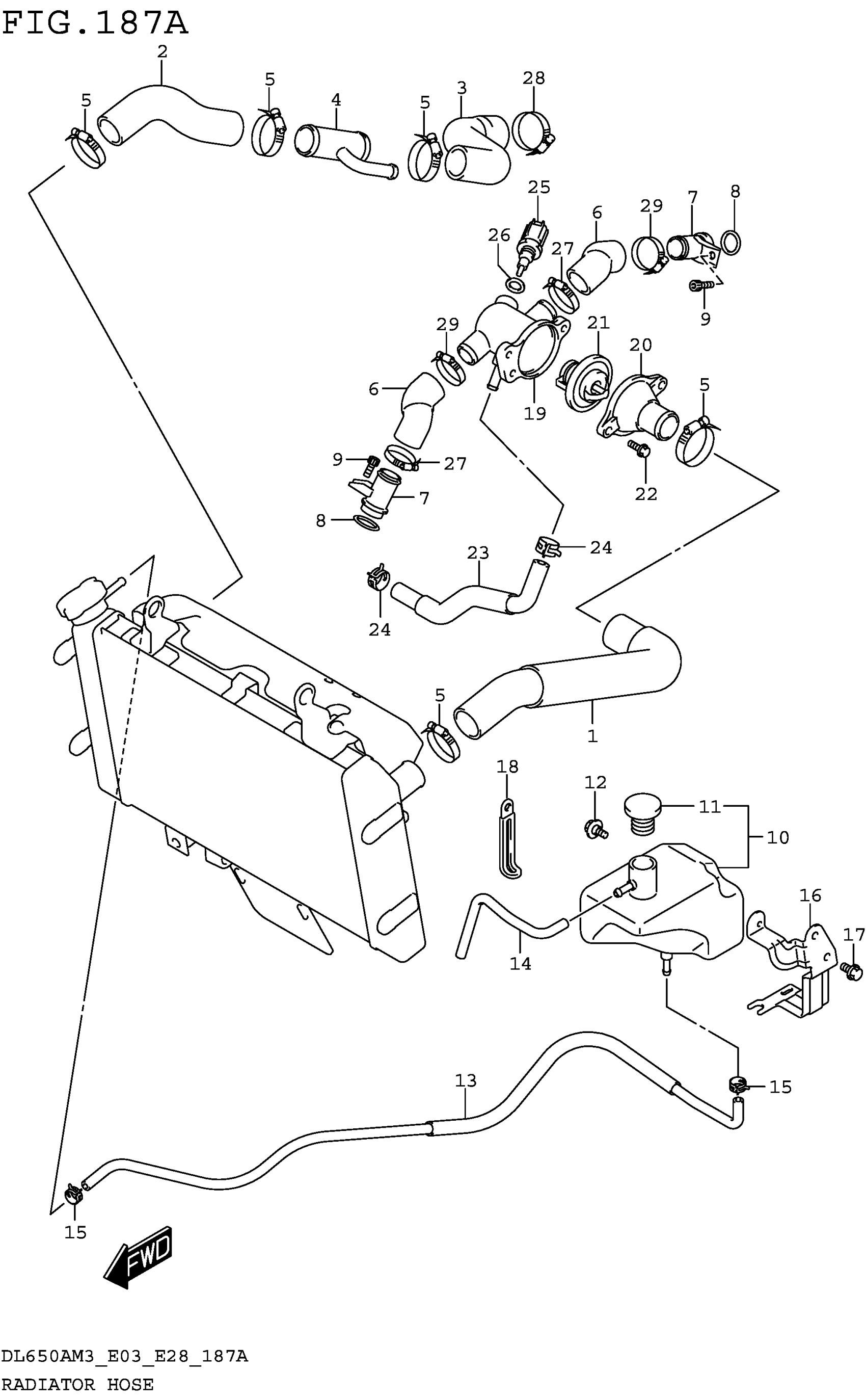

2023 Suzuki DL650AM3 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-11J00

1

$69.27

In stock

2

1

$22.08

In stock

3

1

$22.37

In stock

4

1

$46.00

In stock

5

CLAMP

09401-29001

5
Out of stock

6

HOSE,CONNECTOR INLET

17853-19F00

2

$14.70

In stock

7

UNION,CONNECTOR HOSE

17890-06G20

2

$14.80

In stock

9

BOLT

07130-0612A

2
Out of stock

10

TANK ASSY, RESERVOIR

17910-27G10

1

$63.72

In stock

11

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

12

BOLT (6X12)

09111-06085

1
Out of stock

13

1

$24.83

In stock

14

HOSE, RESERVOIR TANK OVFL

17982-15H00

1
Out of stock

15

CLIP (ID:8.6)

09401-08411

2
Out of stock

16

BRACKET, RESERVOIR TANK

17920-27G10

1
Out of stock

17

BOLT

01550-0610A

2
Out of stock

18

CLAMP (L:45)

09404-06429

1
Out of stock

19

1

$72.57

In stock

20

1

$33.12

In stock

21

THERMOSTAT,WATER

17670-06G61

1

$25.68

In stock

22

BOLT

01547-0616A

2
Out of stock

23

1

$23.30

In stock

24

CLIP

09401-12414

2
Out of stock

25

SENSOR,TEMP

13650-49X00

1
Out of stock

26

GASKET (12X17X1)

09168-12017

1
Out of stock

27

CLAMP

09401-24002

2

$4.55

In stock

28

CLIP

09401-30003

1

$5.15

In stock

29

CLAMP

09401-25001

2

$4.15

In stock
