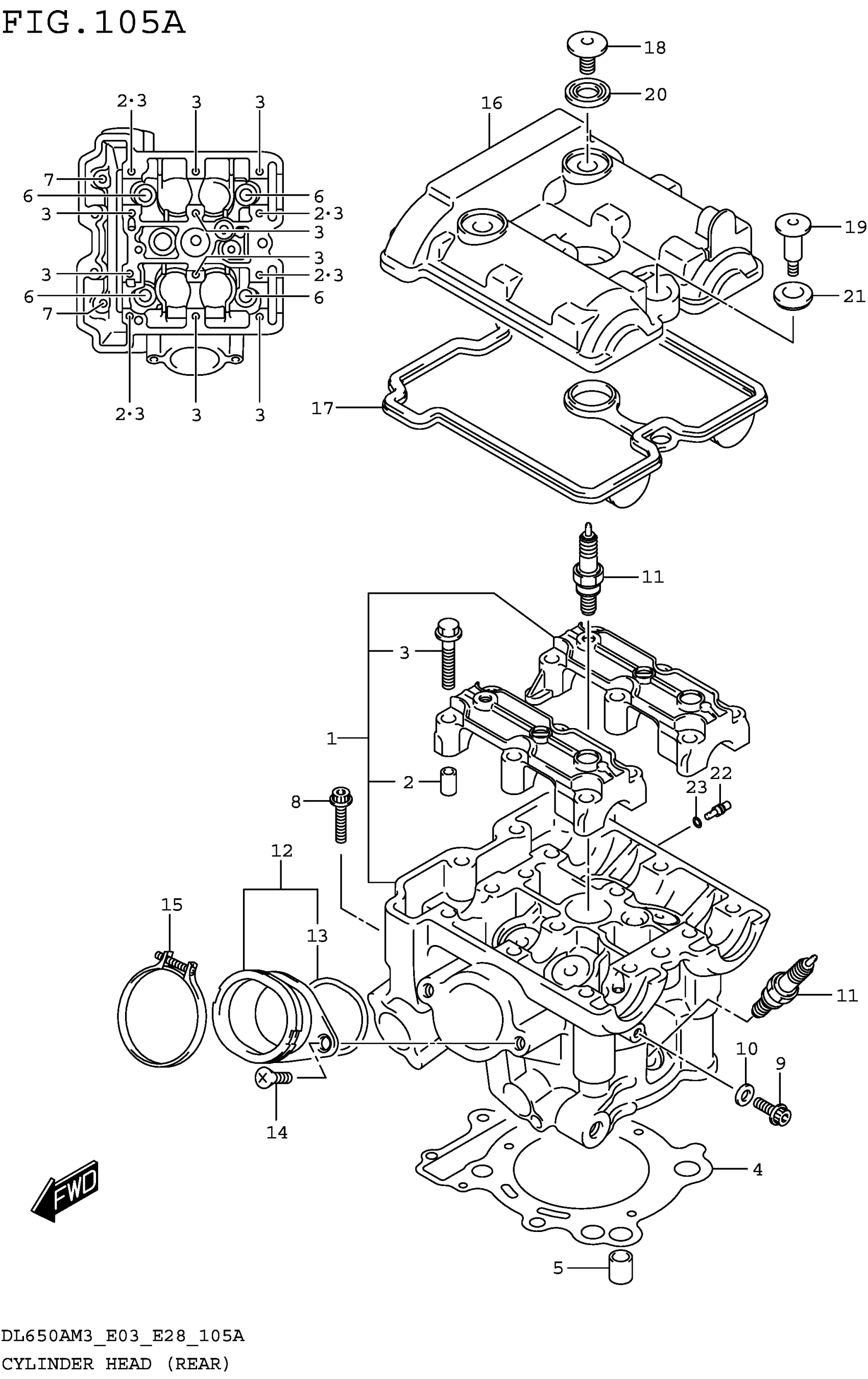

Suzuki DL650AM3 (2023) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER REAR

11103-44H11

Unavailable

2

.PIN (8X11)

09206-08001

$1.77

3

.BOLT (6X40)

09103-06266

$2.13

4

.GASKET,CYLINDER HEAD

11141-20F00

$40.97

5

PIN (10.4X13X18)

04211-13189

$2.19

6

BOLT,CYL HEAD (L:160)

11117-44H00

$22.27

7

BOLT (6X70)

09103-06103

$2.61

8

BOLT

07120-0640A

$3.32

9

BOLT

01550-0612A

$1.97

10

GASKET (5.8X13X1.2)

09168-06023

$2.01

11

PLUG,SPARK (MR8E-9) | NGK

09482-00646

$16.34

12

PIPE ASSY,INTAKE REAR

13102-17G11

$63.50

13

.O-RING (D:2.4,ID:47X42)

09280-46007

$6.33

14

SCREW

02122-0616B

$1.98

15

CLAMP,INTAKE PIPE

13827-40H01

$17.33

16

COVER,CYLINDER HEAD RR

11172-19F20

$150.30

17

.GASKET,CYLINDER HEAD COVER

11173-19F01

$31.21

18

BOLT (7X17.5)

09106-07021

$4.07

19

BOLT (7X31)

09106-07010

$4.26

20

WASHER,CYL HEAD COVER (10.6X2

11191-27E00

$3.72

21

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

22

JET (#8)

09493-80005

$17.57

23

O-RING (D:1.2,ID:4)

09280-04004

$1.76
