2022 Suzuki DL650AM2 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2022 Suzuki DL650AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

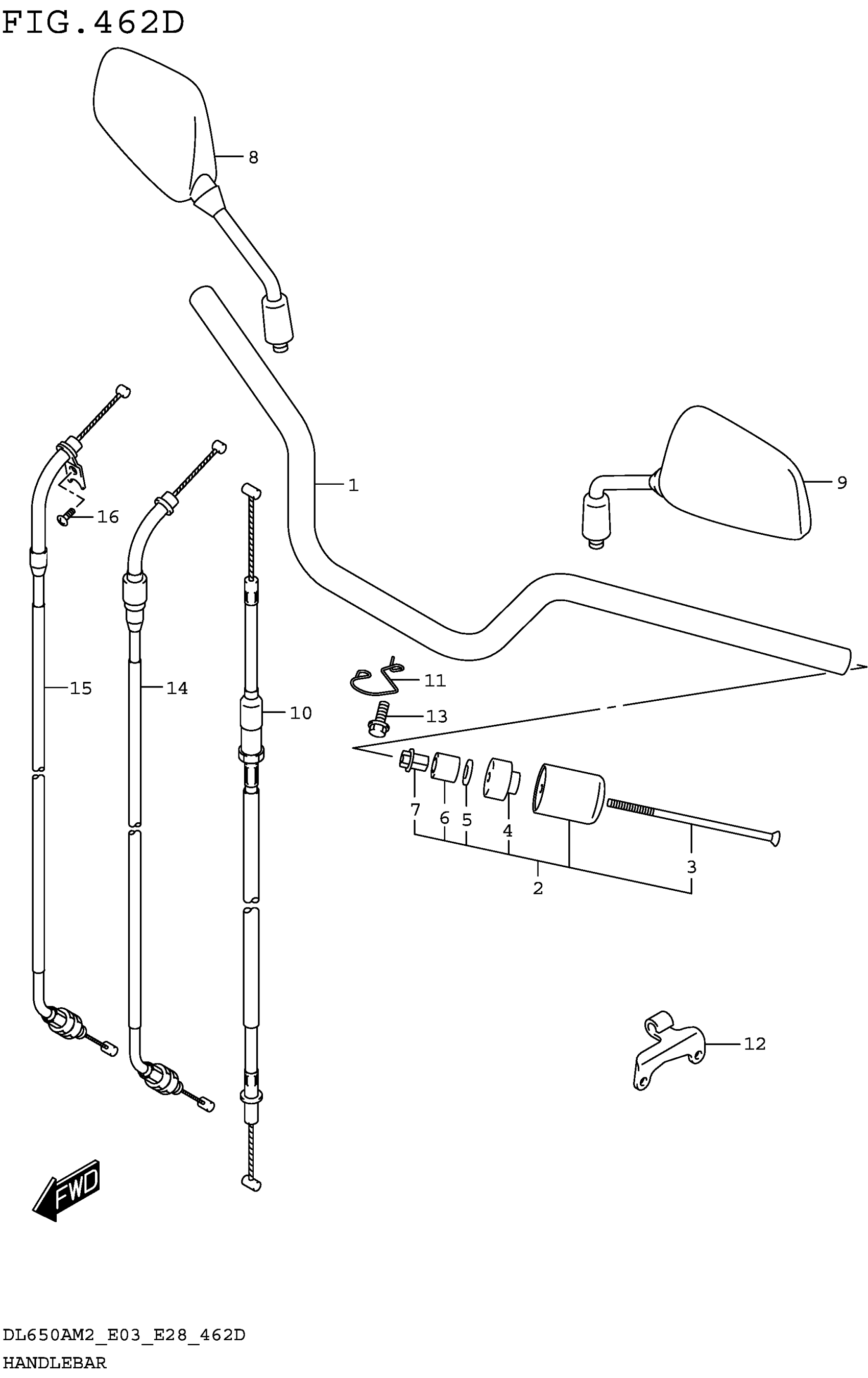

2022 Suzuki DL650AM2 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (SILVER)

56111-28K00-YUS

1
Out of stock

2

BALANCER SET, HANDLEBAR

56200-32861

2
Out of stock

3

.SCREW

02122-0680B

2
Out of stock

4

.SPACER, KNUCKLE COVER

57346-14G00

2
Out of stock

5

.WASHER (6.5X16X4)

09160-06131

2
Out of stock

6

.EXPANDER,HANDLE BALANCER

56272-10G01

2
Out of stock

7

.NUT,HANDLE BALANCER

56273-10G10

2
Out of stock

8

MIRROR ASSY, RR VIEW RH

56500-04F30

1
Out of stock

9

MIRROR ASSY, RR VIEW LH

56600-04F30

1
Out of stock

10

CABLE ASSY, CLUTCH

58200-11J00

1
Out of stock

11

GUIDE, CLUTCH CABLE

58631-11J10

1
Out of stock

12

STOPPER,CLUTCH CABLE

58634-44H00

1
Out of stock

13

BOLT

01547-0612A

1
Out of stock

14

CABLE ASSY, THROTTLE NO.1

58300-11J01

1
Out of stock

15

CABLE ASSY, THROTTLE NO.2

58300-11J11

1
Out of stock

16

SCREW (5X10)

09125-05042

1
Out of stock
