2022 Suzuki DL650AM2 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2022 Suzuki DL650AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

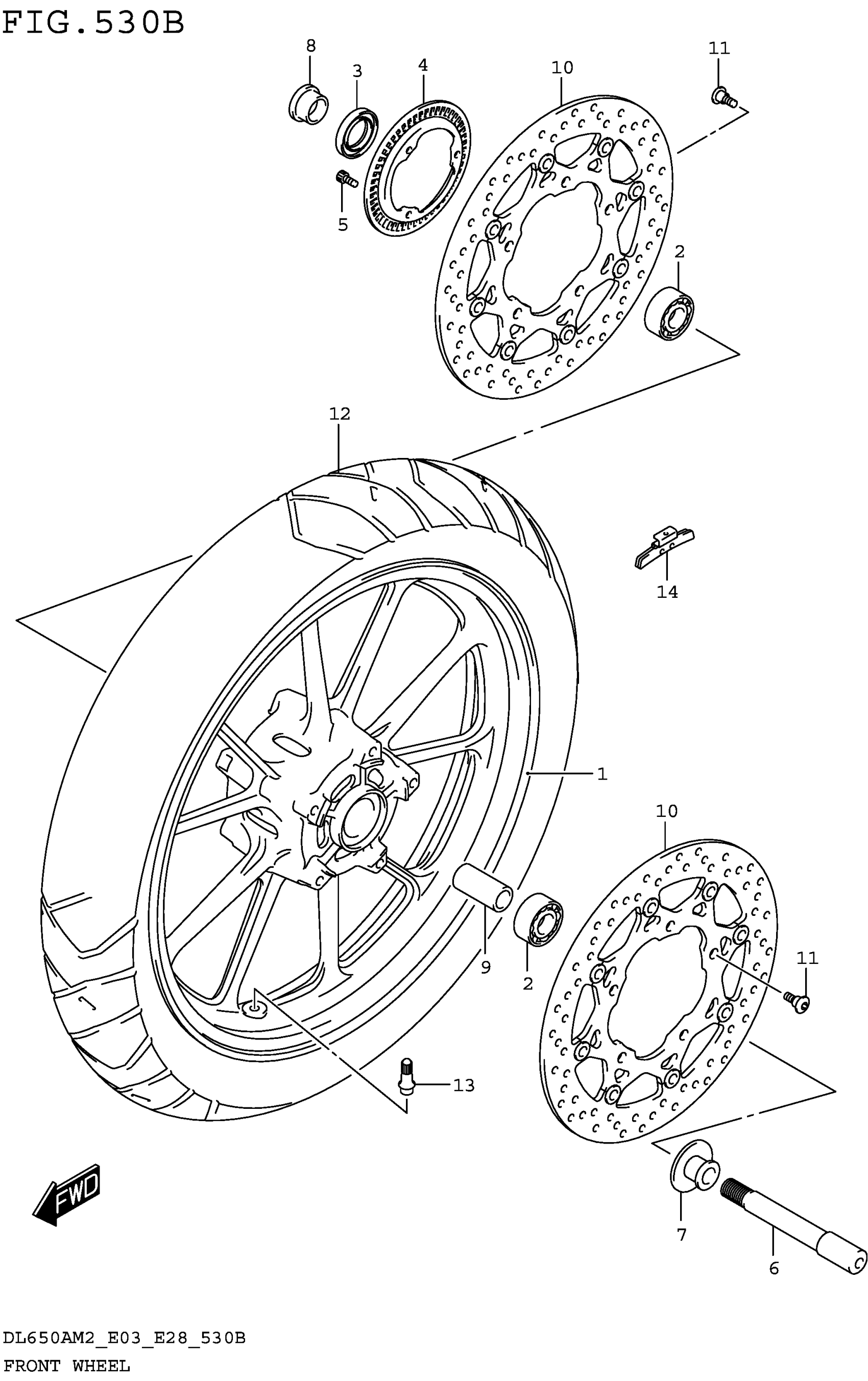

2022 Suzuki DL650AM2 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (19M/CXMT2.50) | (BLACK) BLACK

54111-28K00-019

1
Out of stock

2

BEARING

08123-6203B

2
Out of stock

3

SEAL, FRONT HUB BRG DUST

54841-28K00

1
Out of stock

4

RING, SPEED SENSOR (50T)

54162-28K00

1
Out of stock

5

BOLT

07130-0512A

3
Out of stock

6

AXLE, FR

54711-08F10

1
Out of stock

7

SPACER, FR AXLE LH

54750-31F00

1
Out of stock

8

SPACER, FR AXLE RH

54751-10G01

1
Out of stock

9

SPACER (17.5X25X88)

09180-17067

1
Out of stock

10

DISC,FR BRAKE

59210-44G11

2
Out of stock

11

BOLT (8X21)

09106-08160

10
Out of stock

12

TIRE, FRONT (BATTLAX | ADVENTURE A40F F) BRIDGESTONE

55110-28K00

1
Out of stock

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

1
Out of stock

14-1

BALANCER,WHEEL (10G)

55411-22H00

1
Out of stock

14-2

BALANCER,WHEEL (20G)

55412-22H00

1
Out of stock

14-3

BALANCER,WHEEL (30G)

55413-22H00

1
Out of stock
