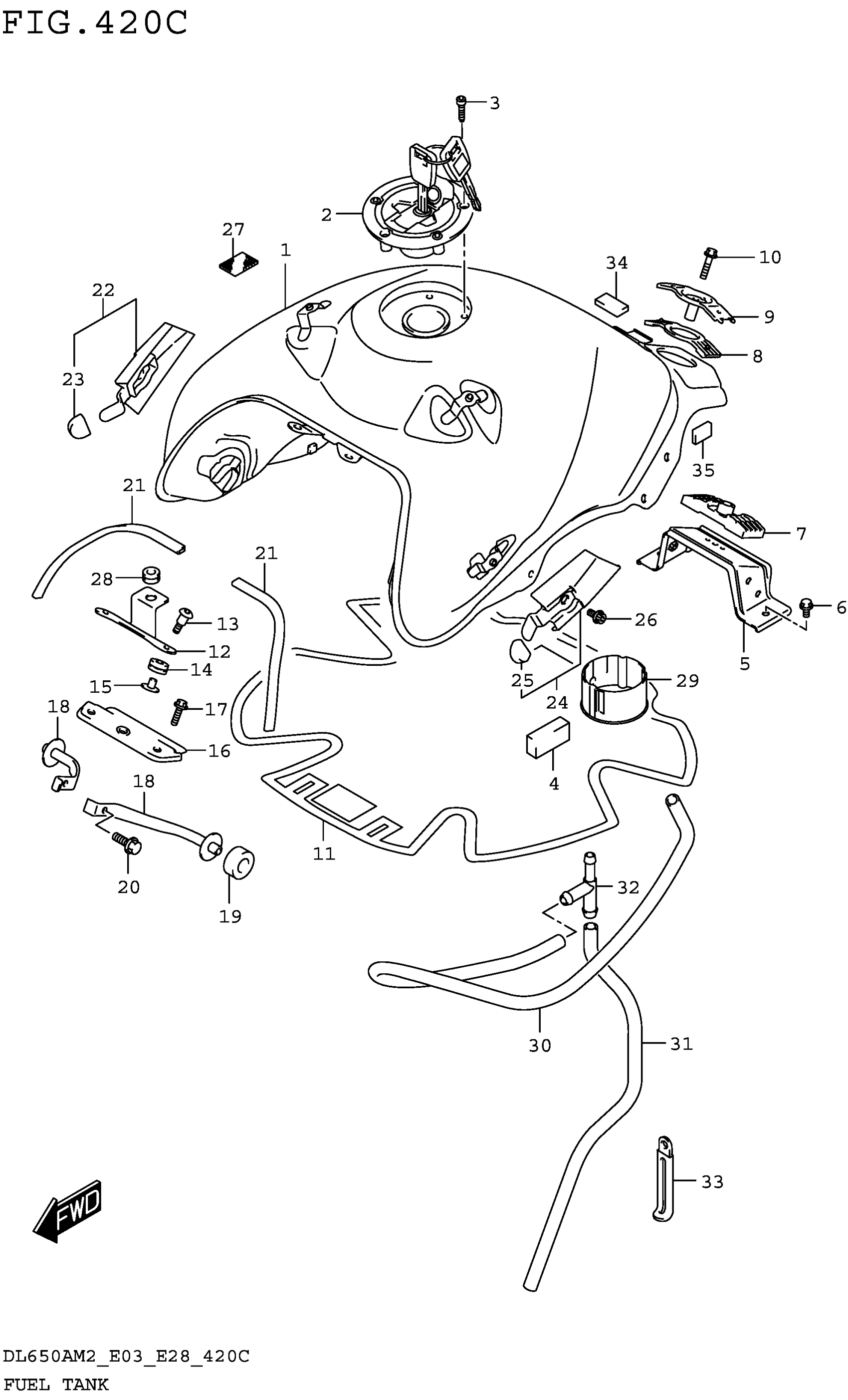

Suzuki DL650AM2 (2022) FUEL TANK (DL650AM2 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-28K00-YKY

$1,208.03

1-2

TANK ASSY, FUEL (WHITE)

44100-28K00-YUH

$1,228.12

1-3

TANK ASSY, FUEL (BLACK)

44100-28K00-YVB

$1,334.27

2

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

CUSHION, FUEL TANK SIDE

44541-28K00

$13.30

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT (8X16)

01550-0816A

$2.31

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$2.80

11

SHIELD, FUEL TANK CENTER

44194-11J00

$91.30

12

BRACKET, FR COVER

44154-11J00

$12.40

13

SCREW (6X25)

09139-06192

$2.92

14

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

15

SPACER,FUEL TANK FR

44512-16G00

$6.80

16

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

17

BOLT

01550-0620B

$2.38

18

BRACKET, FR SIDE

44560-11J00

Unavailable

19

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.63

20

BOLT

01550-0612A

$1.97

21

MOLDING, FUEL TANK

68241-11J01

$20.25

22

BRACKET, FUEL TANK COVER RH

44130-28K00

$13.75

23

CUSHION

09329-18001

$1.89

24

BRACKET, FUEL TANK COVER LH

44140-28K00

$13.75

25

CUSHION

09329-18001

$1.89

26

.BOLT

07120-0610A

$2.58

27

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.01

28

CUSHION (6X18X6)

09320-06504

$4.47

29

VESSEL, FUEL TANK INNER

44121-28K01

$13.43

30

HOSE, FUEL TANK DRAIN NO.1

44423-28K01

$20.17

31

HOSE, FUEL TANK DRAIN NO.2

44423-11J31

$5.28

32

3 WAY

09367-08005

$5.25

33

CLAMP (L:80)

09404-06030

Unavailable

34

CUSHION

45516-01H00

$6.00

35

CUSHION, FRAME COVER FR RR

47122-28K00

$6.47
