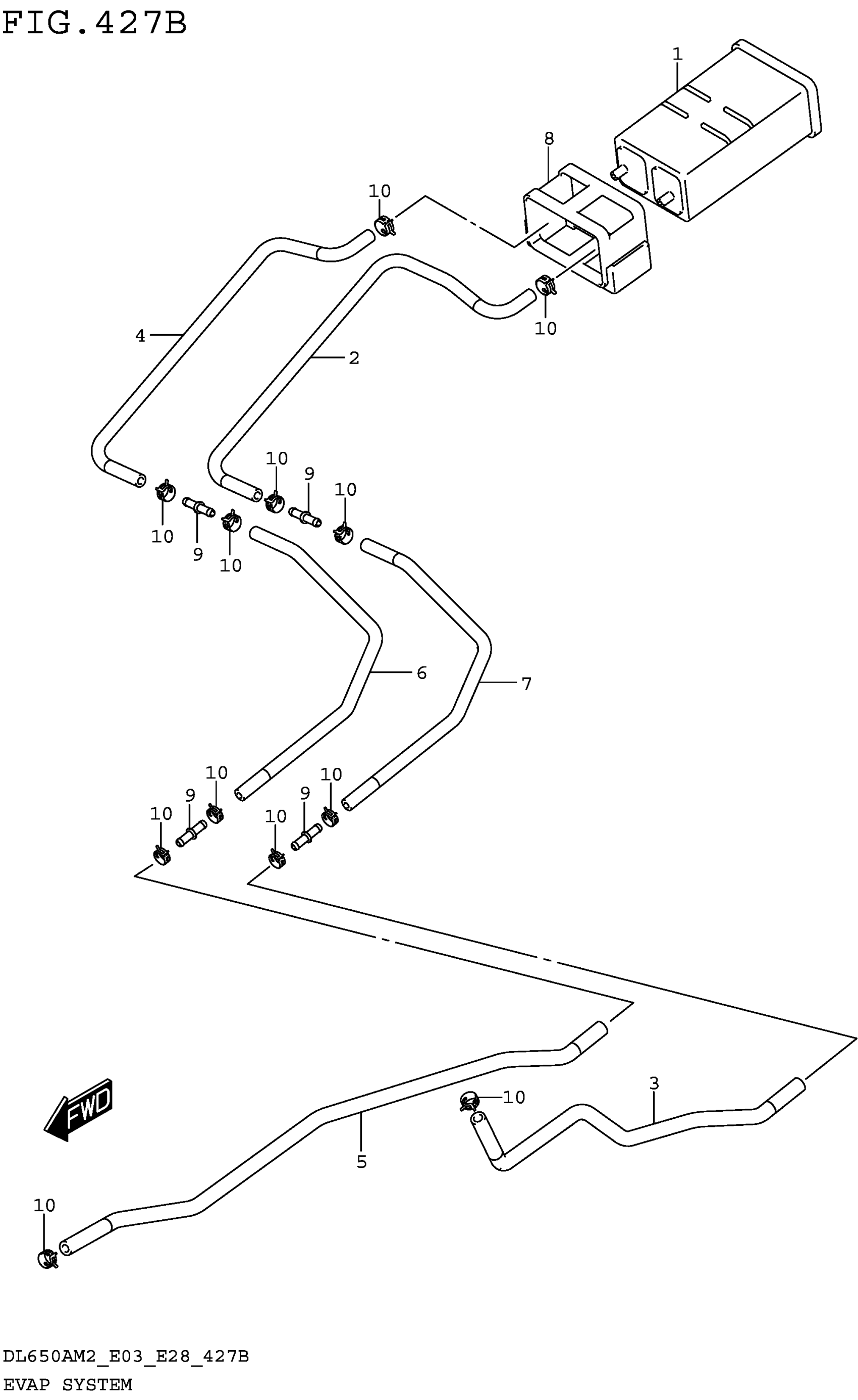

Suzuki DL650AM2 (2022) EVAP SYSTEM (DL650XAM2 E33) Diagram

#

Description

Price

1

CANISTER ASSY, CHARCOAL

18560-31J00

$126.22

2

HOSE, SURGE NO.1

18561-28K00

Unavailable

3

HOSE, SURGE NO.2

18562-28K00

Unavailable

4

HOSE, PURGE NO.1

18563-28K00

Unavailable

5

HOSE, PURGE NO.2

18564-28K00

Unavailable

6

HOSE, EVAP

18565-28K00

Unavailable

7

HOSE, EVAP

18566-28K00

Unavailable

8

CUSHION, CANISTER

18571-31J00

Unavailable

9

JOINT

09367-06009

Unavailable

10

CLIP (ID:11,H:8)

09401-11413

$2.24
