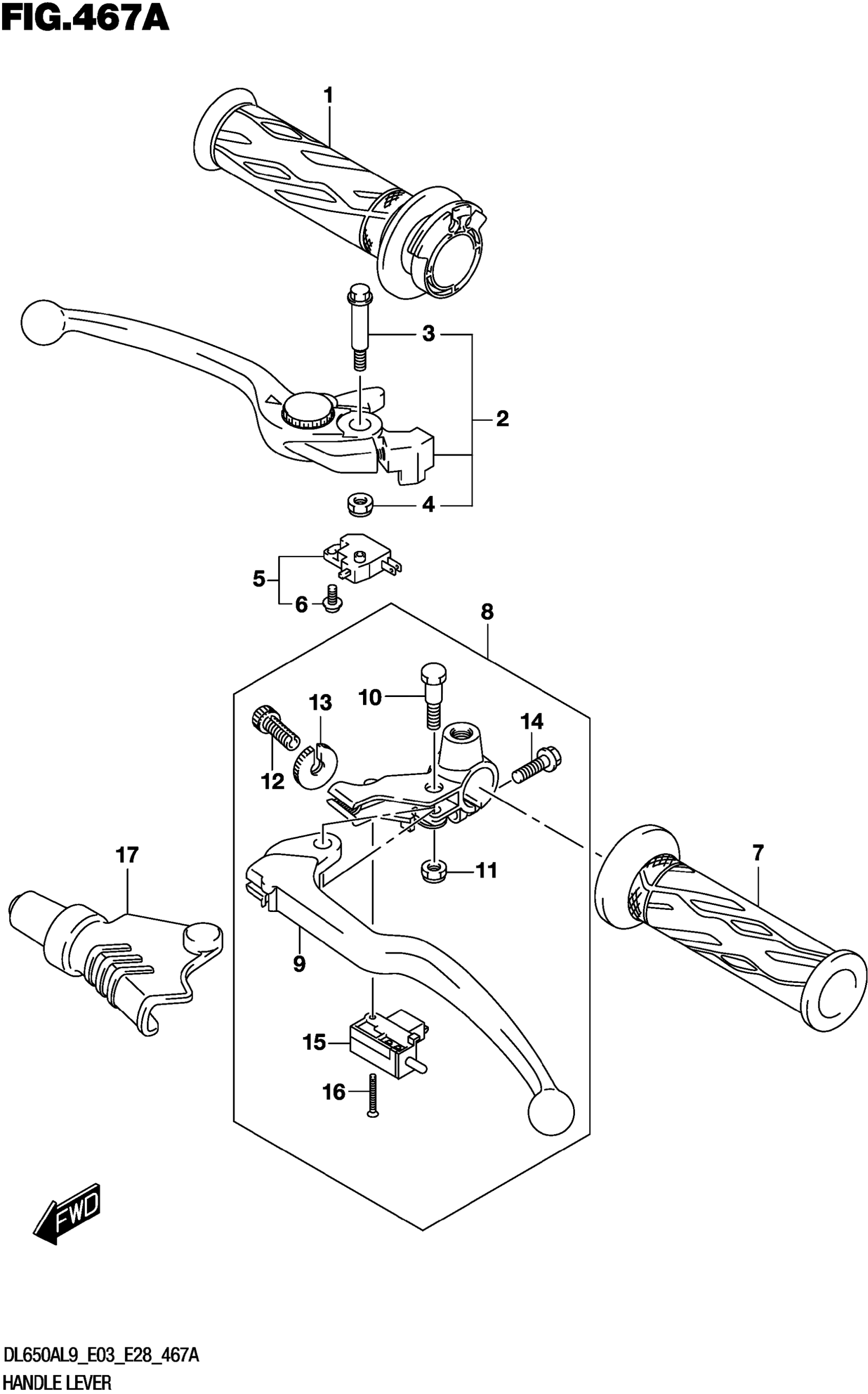

Suzuki DL650AL9 (2019) HANDLE LEVER (DL650A) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$19.46

2

LEVER ASSY, FR BRAKE

57300-44G12

$51.51

3

.BOLT,LEVER PIVOT

57431-17H02

$7.02

4

.NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.65

8

LEVER ASSY, CLUTCH This part replaces 57500-25D01.

57500-25D04

$35.15

9

.LEVER

57621-40F00

$17.20

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.34

11

.NUT

08319-2106A

$1.97

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.67

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.27

14

..BOLT

01547-0620B

$2.50

15

.SWITCH,CLUTCH

57560-05A00

$11.63

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.11
