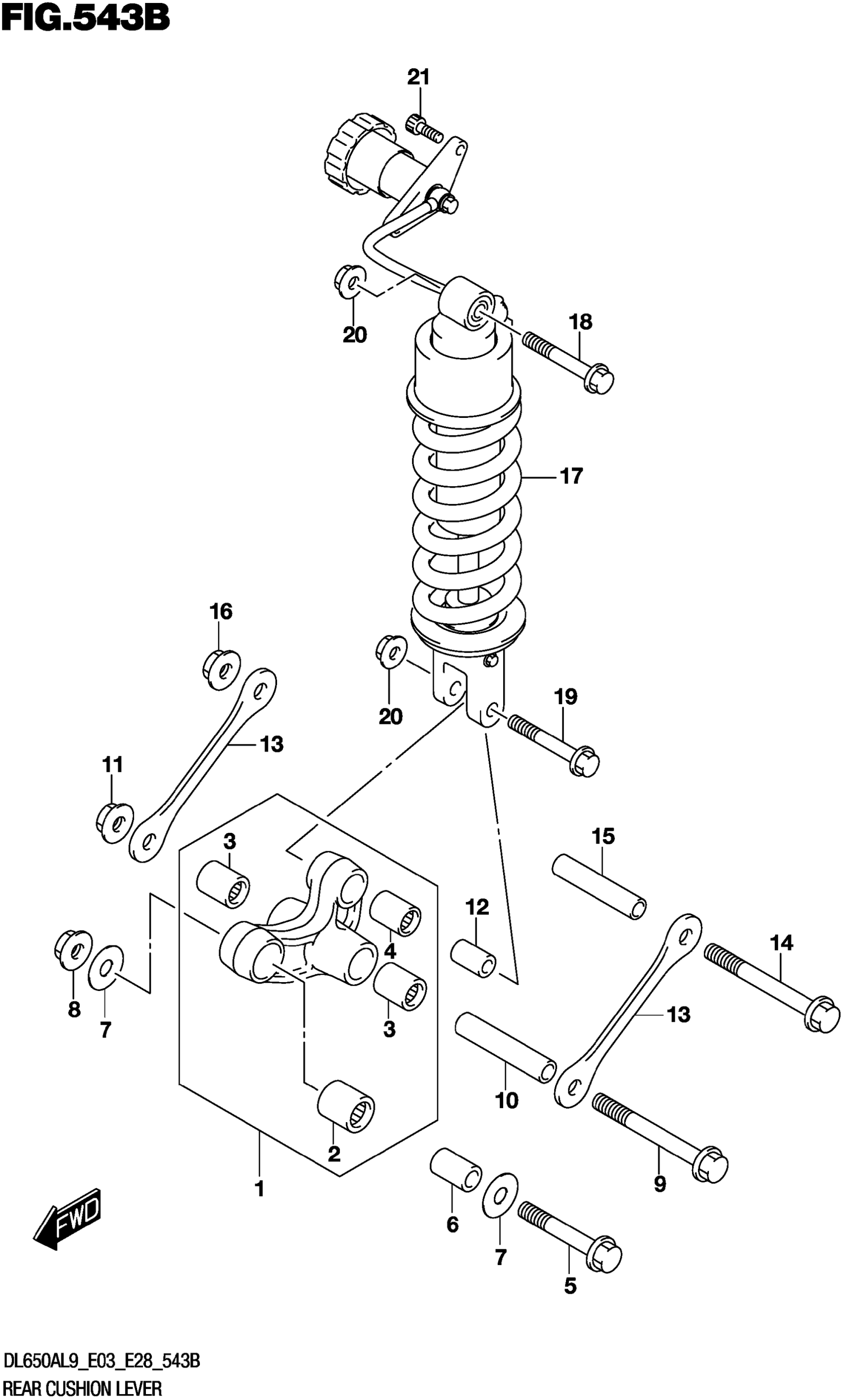

Suzuki DL650AL9 (2019) REAR CUSHION LEVER (DL650XA) Diagram

#

Description
Price

1

LEVER SET, RR CUSHION This part replaces 62600-06871.

62600-06872

$404.70

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$16.32

3

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

4

.BEARING (17X24X25)

09263-17053

$19.55

5

BOLT, RR CUSHION LEVER FR

62658-19F00

$13.50

5

BOLT, RR CUSHION LEVER FR

62658-19F00

$13.50

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$20.72

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$20.72

7

WASHER (12X34X1.0)

09160-12037

$3.52

8

NUT

09159-12056

$6.65

9

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

10

SPACER (12X17X85)

09180-12122

$25.05

11

NUT

09159-12056

$6.65

12

SPACER,RR CUSHION LEVER (10X1

62684-40A10

$11.44

12

SPACER,RR CUSHION LEVER (10X1

62684-40A10

$11.44

13

ROD, RR CUSHION LEVER

62641-06G00

$36.48

14

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

15

SPACER (12X17X85)

09180-12122

$25.05

16

NUT

09159-12056

$6.65

17

ABSORBER ASSY, RR SHOCK This part replaces 62100-28K10-019.

62100-28K11-019

$1,168.32

18

BOLT (10X70)

09103-10033

$5.64

19

BOLT (10X55)

09103-10143

$4.92

20

NUT (M10)

09159-10115

$3.21

21

BOLT

07130-0816A

$2.90
