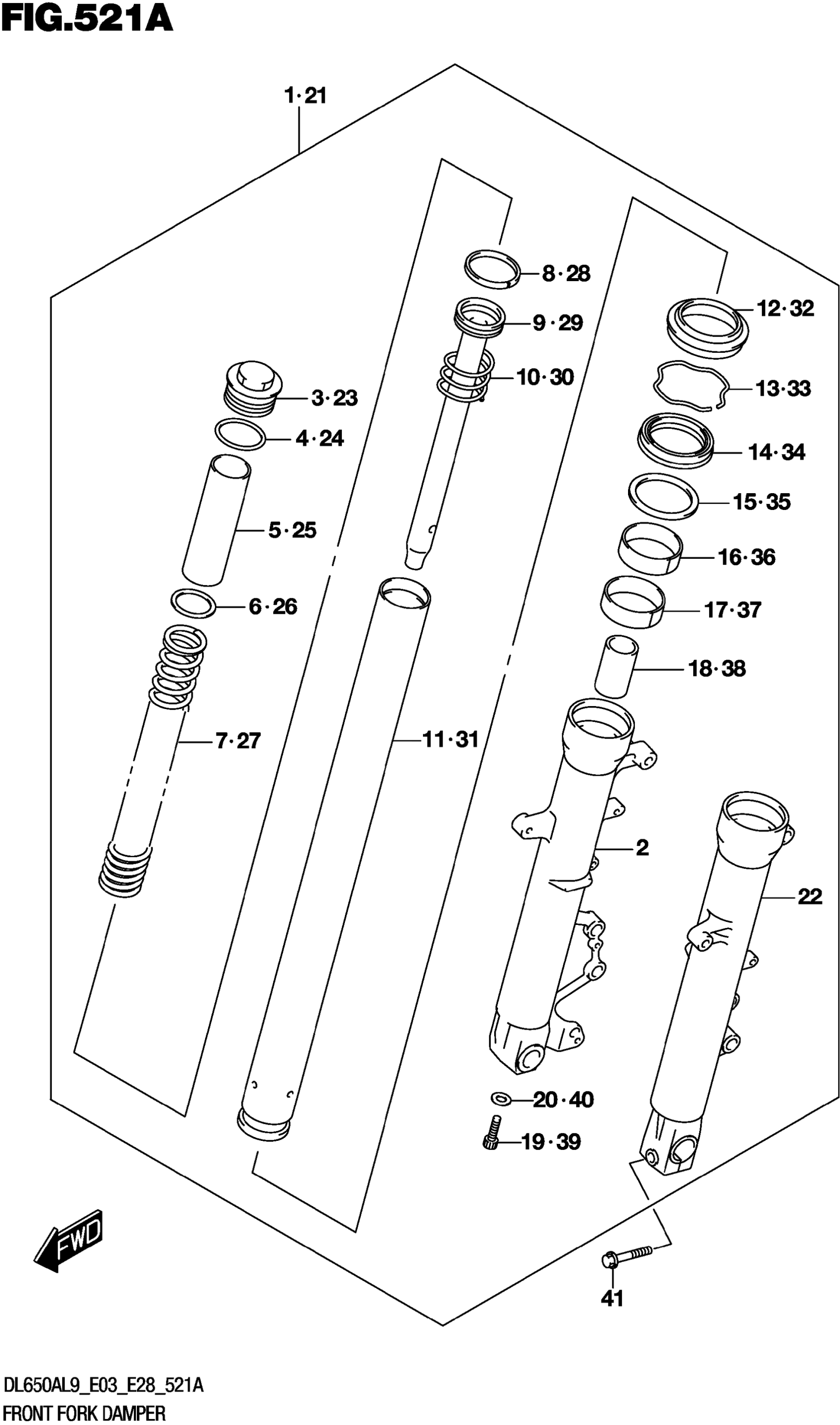

Suzuki DL650AL9 (2019) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FR FORK RH

51103-28K10-291

$1,030.87

2

.TUBE, OUTER RH

51131-28K00-291

$577.90

3

.BOLT, FORK

51189-28K00

$69.70

4

.O RING

51117-17C00

$5.61

5

.COLLAR, SPRING

51176-19C00

$15.47

6

.SEAT, SPRING LWR

51186-17C00

$8.52

7

.SPRING, FR

51171-28K10

$86.98

8

.RING, PISTON

51196-27G00

$7.27

9

.PIPE, SEAT

51146-11J00

$66.15

10

.SPRING, REBOUND

51177-14D00

$14.75

11

.PIPE, FORK

51110-28K10

$546.87

12

.SEAL, DUST

51173-27G00

$24.34

13

.RING,STOPPER

51556-38B00

$6.61

14

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

$24.63

15

.SPACER, SEAL

51168-17C00

$5.91

16

.BUSH, GUIDE

51152-47H00

$13.01

17

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

$19.31

18

.PIECE, OIL LOCK

51195-27G00

$34.12

19

.BOLT (8X18)

51147-06F10

$6.75

20

O RING This part replaces 51148-31030.

51148-36011

$3.26

21

DAMPER ASSY, FR FORK LH

51104-28K10-291

$1,050.32

22

.TUBE, OUTER LH

51141-28K00-291

$577.90

23

.BOLT, FORK

51189-28K00

$69.70

24

.O RING

51117-17C00

$5.61

25

.COLLAR, SPRING

51176-19C00

$15.47

26

.SEAT, SPRING LWR

51186-17C00

$8.52

27

.SPRING, FR

51171-28K10

$86.98

28

.RING, PISTON

51196-27G00

$7.27

29

.PIPE, SEAT

51146-11J00

$66.15

30

.SPRING, REBOUND

51177-14D00

$14.75

31

.PIPE, FORK

51110-28K10

$546.87

32

.SEAL, DUST

51173-27G00

$24.34

33

.RING,STOPPER

51556-38B00

$6.61

34

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

$24.63

35

.SPACER, SEAL

51168-17C00

$5.91

36

.BUSH, GUIDE

51152-47H00

$13.01

37

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

$19.31

38

.PIECE, OIL LOCK

51195-27G00

$34.12

39

.BOLT (8X18)

51147-06F10

$6.75

40

O RING This part replaces 51148-31030.

51148-36011

$3.26

41

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.11
