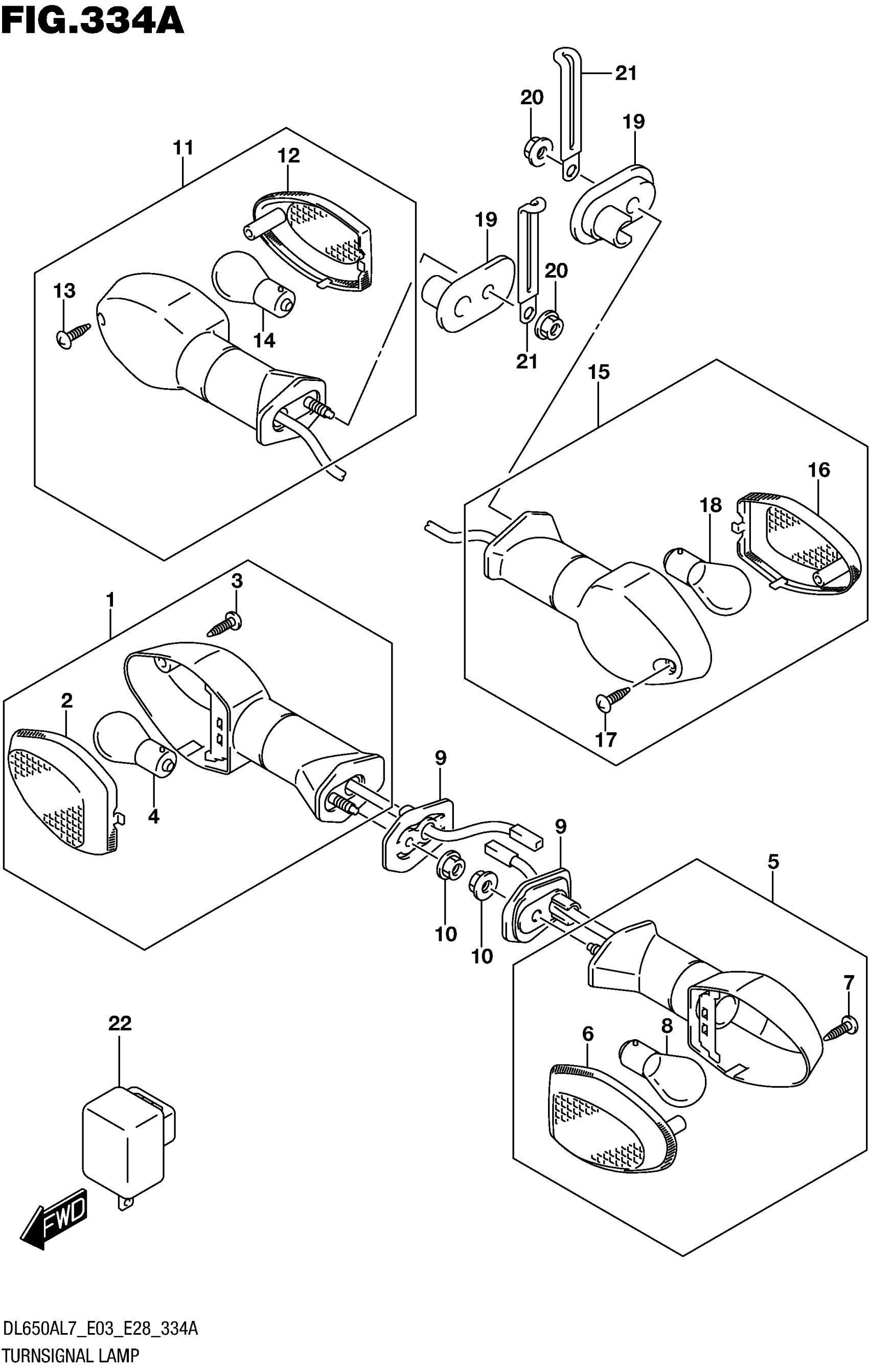

Suzuki DL650AL7 (2017) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL RH

35601-08JA0

$112.58

2

.LENS

35612-08JA0

$14.07

3

.SCREW

03211-0414B

$1.93

4

.BULB (12V,21W)

09471-12186

$16.18

5

LAMP ASSY, FR TURNSIGNAL LH

35602-08JA0

$114.18

6

.LENS

35632-08JA0

$14.07

7

.SCREW

03211-0414B

$1.93

8

.BULB (12V,21W)

09471-12186

$16.18

9

PLATE, FR TURNSIGNAL

35629-18G00

$2.32

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, RR TURNSIGNAL RH

35603-08JA0

$124.75

12

.LENS

35632-08JA0

$14.07

13

.SCREW

03211-0414B

$1.93

14

.BULB (12V,21W)

09471-12186

$16.18

15

LAMP ASSY, RR TURNSIGNAL LH

35604-08JA0

$124.75

16

.LENS

35612-08JA0

$14.07

17

.SCREW

03211-0414B

$1.93

18

.BULB (12V,21W)

09471-12186

$16.18

19

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

20

NUT

08316-1005A

$2.19

21

CLAMP (L:45)

09404-06429

$1.82

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-06F00.

38610-06F01

$92.75
