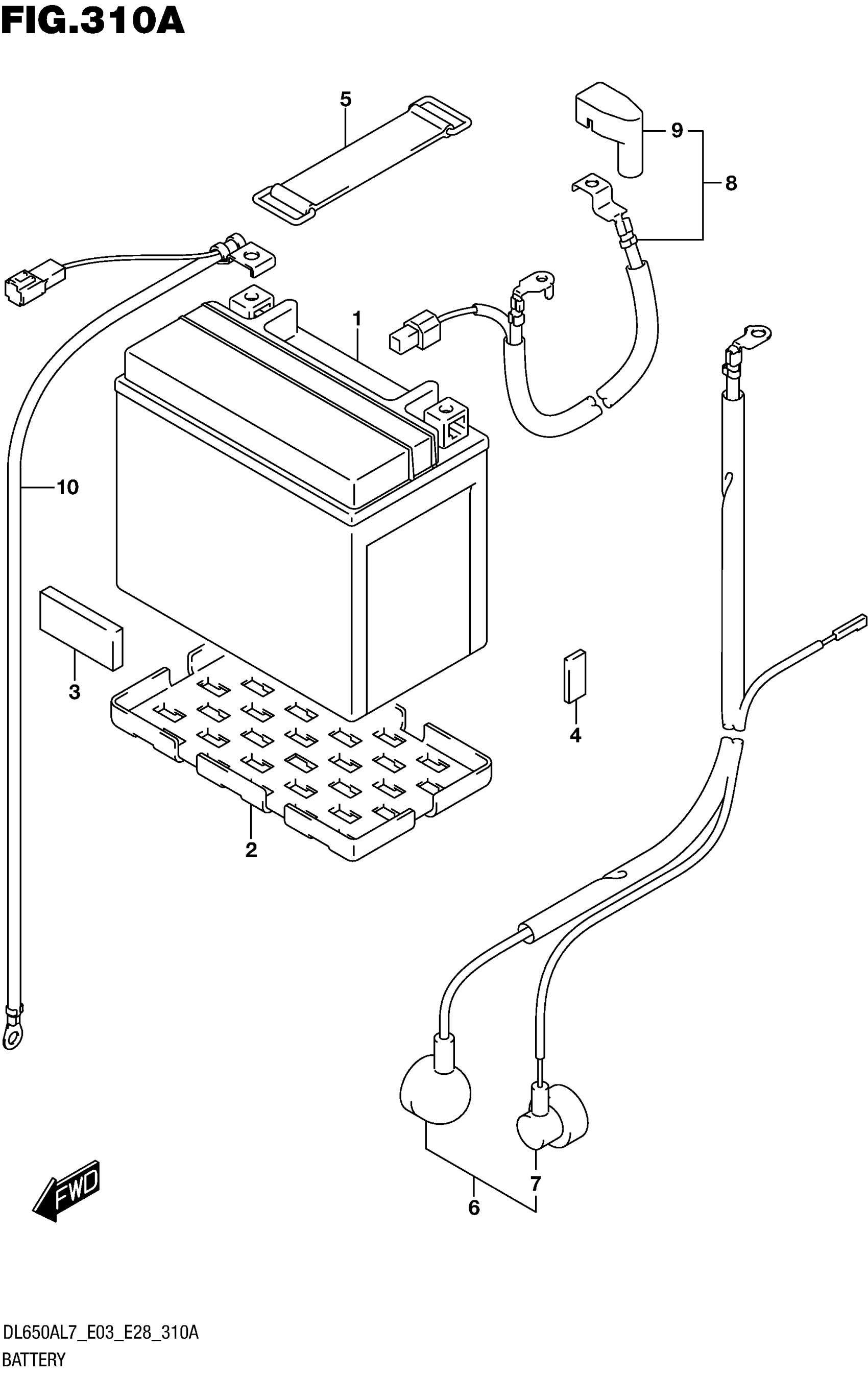

Suzuki DL650AL7 (2017) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) This part replaces 33630-48E00.

33610-48E20

$124.92

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.09

4

PROTECTOR (20X40X3.0) | CUT AS REQUIRED

44543-10G00

$5.23

5

BAND

09462-00007

$3.71

6

WIRE, STARTER MOTOR LEAD

33810-28K00

$61.28

7

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

8

WIRE, BATTERY PLUS LEAD (+)

33820-28K00

$62.32

9

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$11.18

10

WIRE, BATTERY (-)LEAD

33860-28K00

$55.32
