2017 Suzuki DL650AL7 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2017 Suzuki DL650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

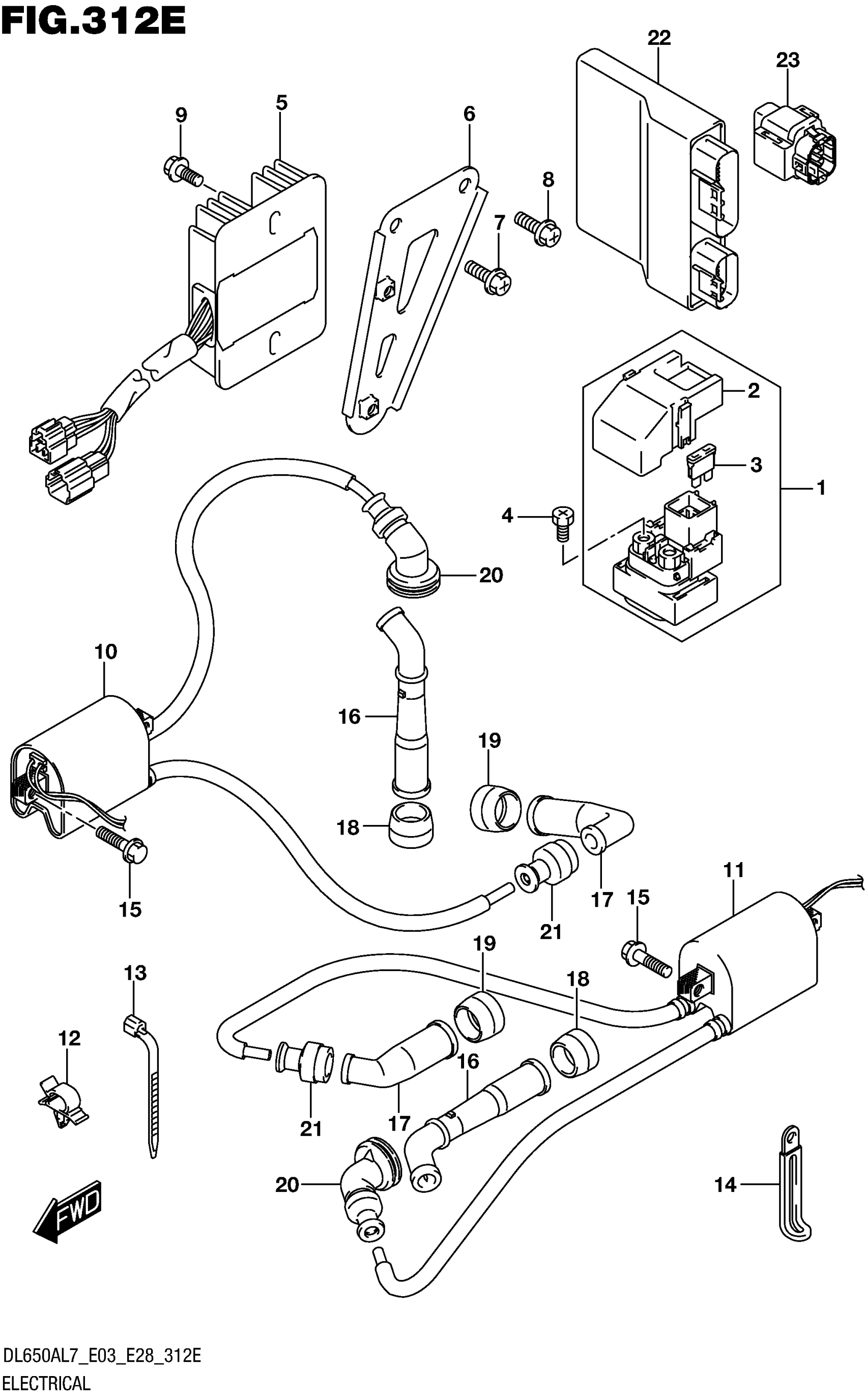

2017 Suzuki DL650AL7 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

.COVER, RELAY ASSY

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-47H00

1
Out of stock

6

BRACKET, RECT FTG

32830-11J00

1
Out of stock

7

SCREW This part replaces 02162-0616A.

02162-0616B

1
Out of stock

8

SCREW

02162-0610A

—
Out of stock

9

SCREW This part replaces 02162-0616A.

02162-0616B

2
Out of stock

10

COIL ASSY, IGNITION This part replaces 33410-27G00.

33410-27G02

1
Out of stock

11

COIL ASSY, IGNITION REAR This part replaces 33420-27G00.

33420-27G03

1
Out of stock

12

CLAMP

09403-10319

1
Out of stock

13

CLAMP (L:165)

09407-18402

1
Out of stock

14

CLAMP (L:45)

09404-06429

1
Out of stock

15

BOLT

01547-0625A

4
Out of stock

16

CAP ASSY,SPARK PLUG | FOR CENTER

33510-17G00

2
Out of stock

17

CAP, SPARK PLUG | FOR SIDE

33510-20E00

2
Out of stock

18

2

$6.72

In stock

19

SEAL, SPARK PLUG CAP | FOR SIDE

33541-47D00

2
Out of stock

20

SEAL,HIGH TENSION CORD CTR | FOR CENTER

33542-17G01

2
Out of stock

21

SEAL,HIGH TENSION CORD (SIDE) | FOR SIDE

33542-38B00

2
Out of stock

22

CONTROL UNIT, FI This part replaces 32920-28K50.

32920-28K52

1
Out of stock

23

SENSOR ASSY,FUEL CUT

33960-27G00

1
Out of stock
