2017 Suzuki DL650AL7 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2017 Suzuki DL650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

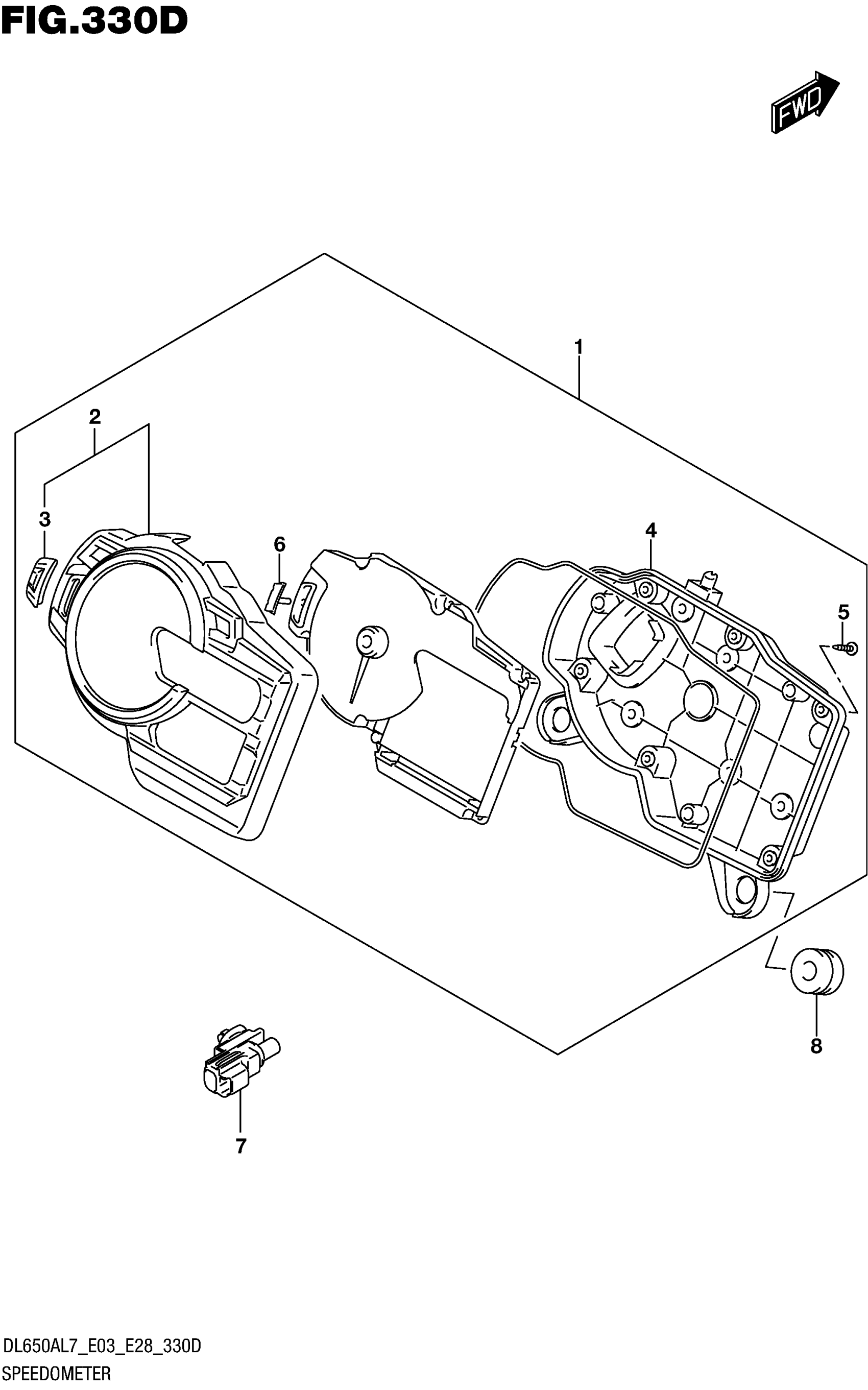

2017 Suzuki DL650AL7 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-28K10

1
Out of stock

2

.CASE, UPPER

34150-28K00

1
Out of stock

3

..RUBBER, SWITCH

34126-31J00

1
Out of stock

4

.CASE, LOWER

34152-28K00

1
Out of stock

5

.SCREW (3X12)

34183-29F00

6
Out of stock

6

.KNOB

34124-31J00

1
Out of stock

7

SENSOR, AMBIENT AIR TEMP

95643-58J00

1
Out of stock

8

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

2
Out of stock
