2017 Suzuki DL650AL7 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2017 Suzuki DL650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

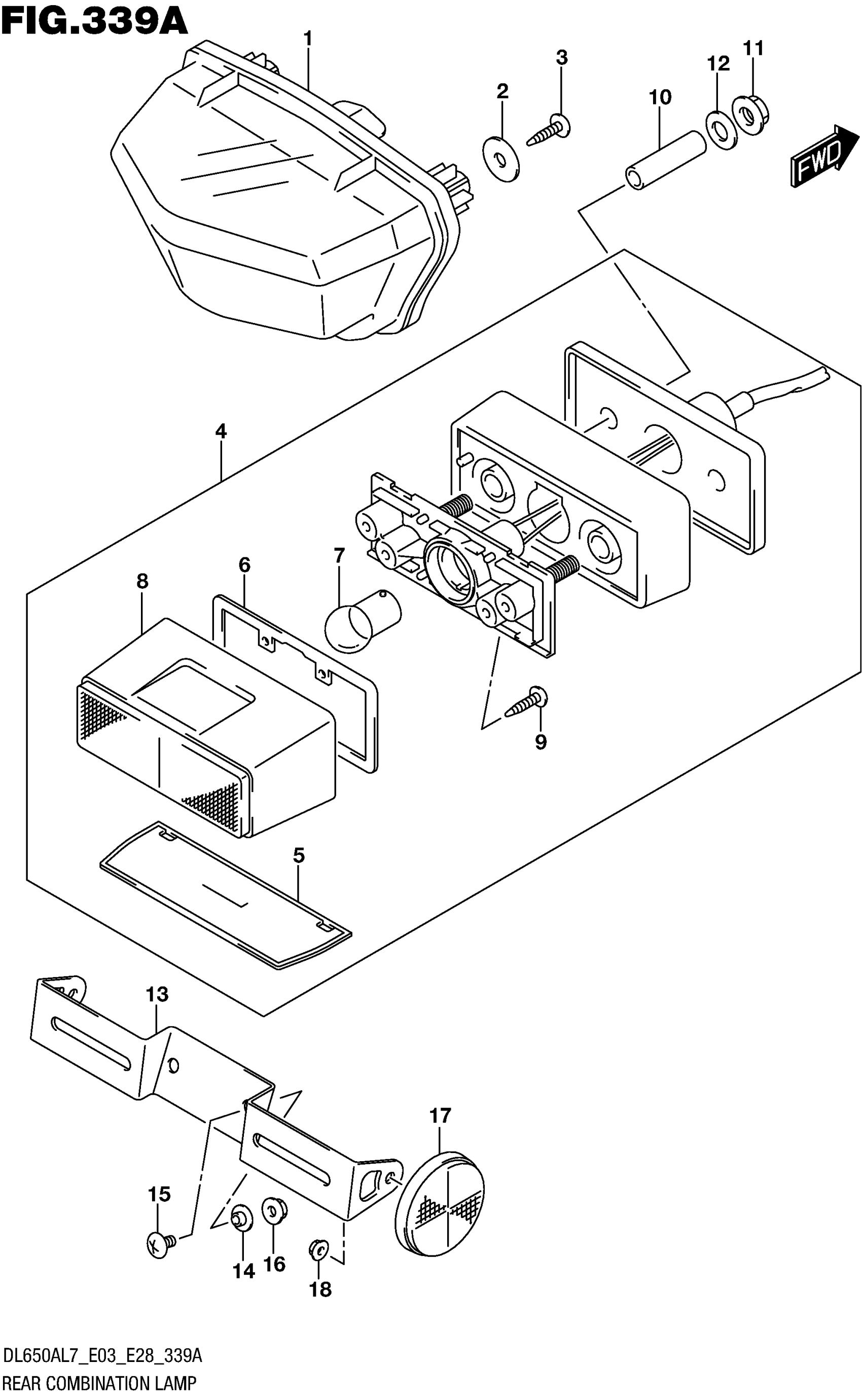

2017 Suzuki DL650AL7 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, RR COMB

35710-31J01

1

$229.77

In stock

2

WASHER (5.5X20X1.2)

09160-05501

3

$2.02

In stock

3

SCREW

03541-0516A

3
Out of stock

4

LAMP ASSY,LICENSE

35910-41GC2

1

$96.00

In stock

5

.LENS

35912-41G01

1
Out of stock

6

.GASKET

35913-41G00

1
Out of stock

7

1

$2.55

In stock

8

.COVER, LICENSE LAMP

35917-41G00

1
Out of stock

9

.SCREW

03211-0416A

2

$1.54

In stock

10

SPACER (6.5X9X33.3)

09180-06278

2

$4.92

In stock

11

NUT

08316-1006A

2
Out of stock

12

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

13

BRACKET,LICENSE PLATE

35927-14J30

1

$17.72

In stock

14

WASHER

09169-06071

2
Out of stock

15

SCREW

02142-0616A

2
Out of stock

16

NUT

08316-1006A

2
Out of stock

17

REFLEX REFLECTOR ASSY, RR SID

35970-13K00

2
Out of stock

18

NUT

08316-1005A

2
Out of stock
