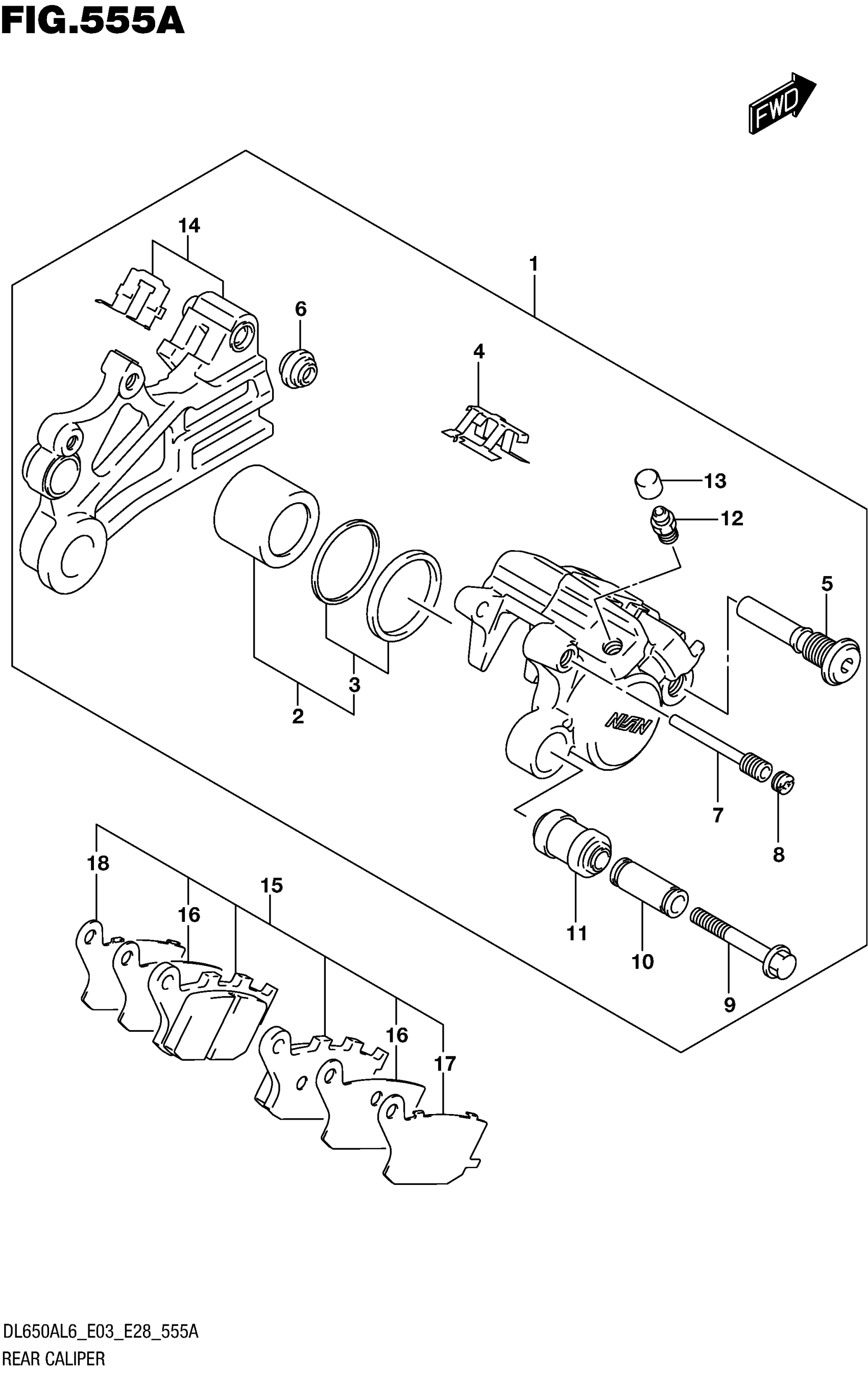

Find the part on the Rear Caliper diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL650AL6 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-27G10-999

1
Out of stock

2

.PISTON SET

69100-04810

1
Out of stock

3

..SEAL SET,PISTON

69100-04820

1
Out of stock

4

.SPRING,PAD

69115-06G00

1
Out of stock

5

.PIN, BOLT

59305-36E00

1

$18.66

In stock

6

.BOOT

59303-14500

1
Out of stock

7

.PIN, HANGER

69141-40F00

1
Out of stock

8

.PLUG

59146-21E10

1

$6.13

In stock

9

.BOLT

69182-04F00

1
Out of stock

10

.SLEEVE

69185-04F00

1
Out of stock

11

.BOOT,SLEEVE

69186-04F00

1
Out of stock

12

.BLEEDER

59121-01A00

1
Out of stock

13

.CAP

59122-46H00

1
Out of stock

14

.BRACKET

69150-27G00

1
Out of stock

15

PAD & RETAINER SET

69100-06830

1
Out of stock

16

.INSULATOR

69132-06G00

2
Out of stock

17

.RETAINER

69133-06G00

1
Out of stock

18

.RETAINER

69134-06G00

1
Out of stock
