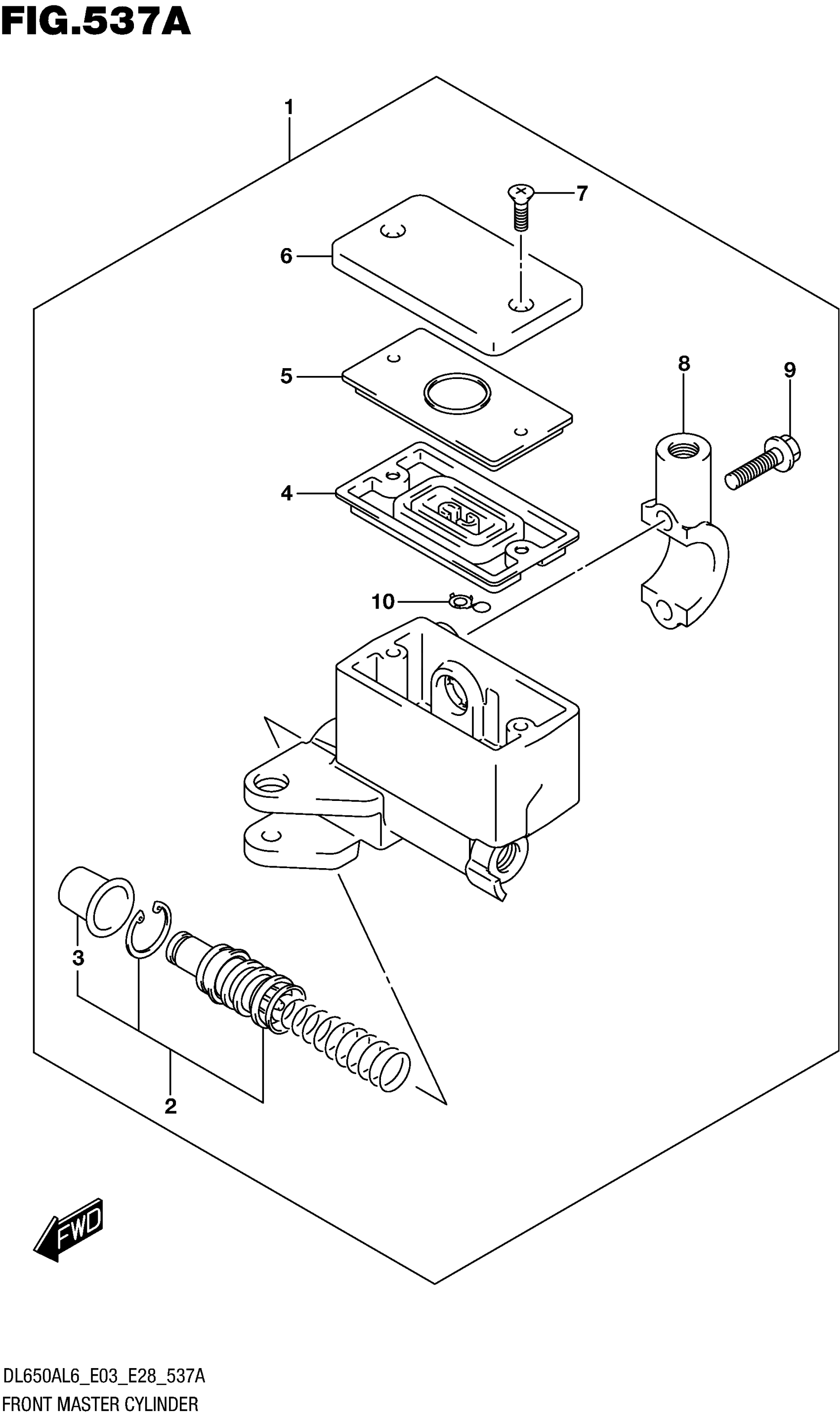

Suzuki DL650AL6 (2016) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10G30

$352.80

2

.PISTON/CUP SET

59600-45870

$59.52

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-49460

$8.95

5

.PLATE, DIAPHRAGM

59668-41C00

$8.54

6

.CAP

59669-10G00

$43.22

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-32F00

$17.87

9

.BOLT (6X22)

59675-02FA0

$3.49

10

.PROTECTOR

59664-32F00

$13.20
