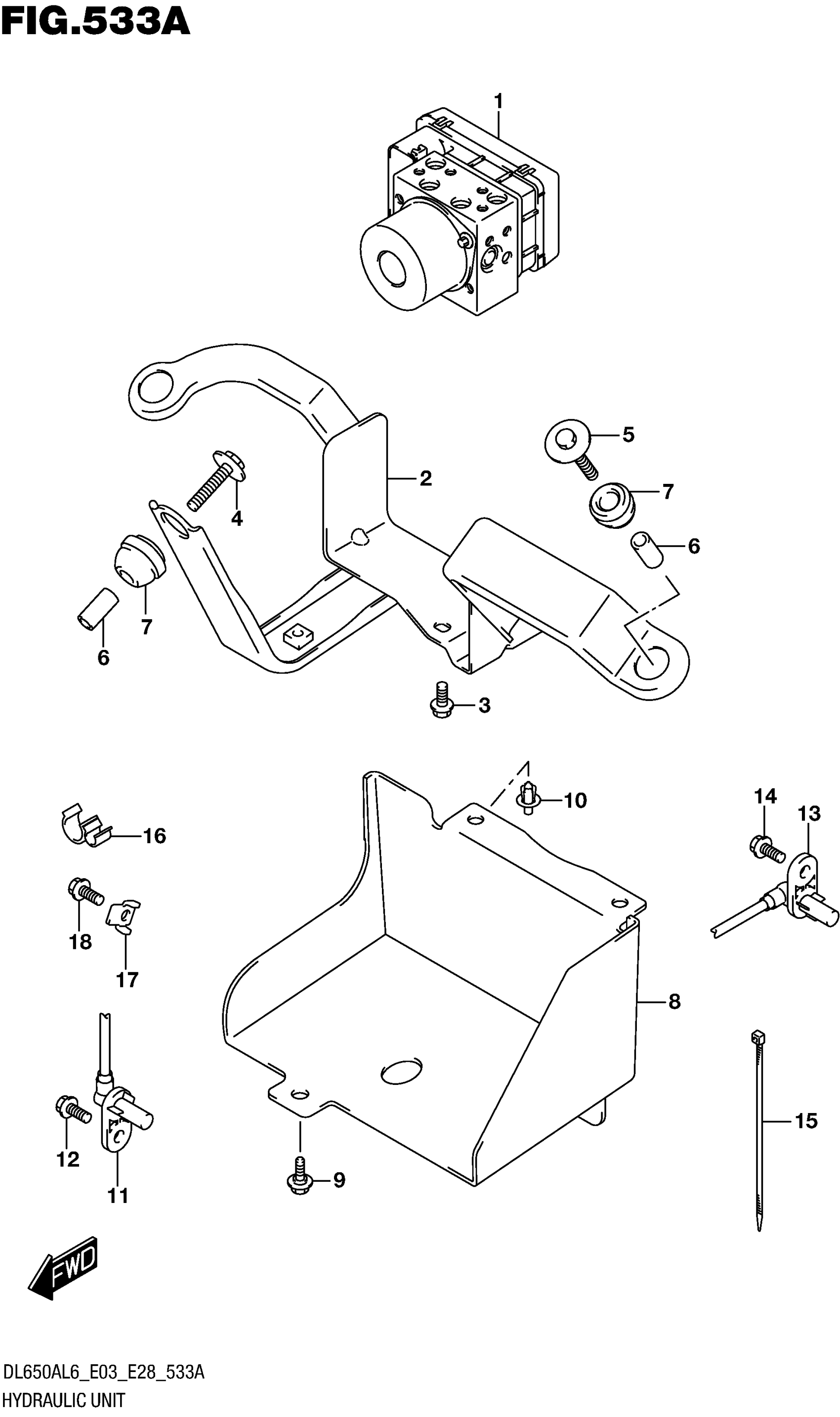

Suzuki DL650AL6 (2016) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-11J01

$3,128.83

2

HOLDER, HYDRAULIC UNIT ABS

55660-11J00

Unavailable

3

BOLT

01550-0612A

$1.97

4

BOLT (6X30)

09116-06171

$3.37

5

BOLT (6X37)

09116-06176

Unavailable

6

SPACER (6.5X10X20)

09180-06296

$2.67

7

CUSHION

09320-10061

Unavailable

8

COVER, HYDR ABS UNIT This part replaces 55667-27G10.

55667-27G20

$34.62

9

BOLT (6X16)

09111-06066

$2.64

10

CLIP (BLACK)

09409-08308-5ES

$1.97

11

SENSOR, FR WHEEL ABS

55710-11J00

$313.73

12

BOLT (8X16)

01550-0816A

$2.31

13

SENSOR, RR WHEEL ABS

65710-11J00

$339.97

14

BOLT (8X16)

01550-0816A

$2.31

15

CLAMP (L:145)

09407-14407

$2.80

16

CLAMP

09408-00266

$2.69

17

GUIDE, SENSOR LEAD

34938-14F00

$7.12

18

BOLT

01547-0612A

$2.01
