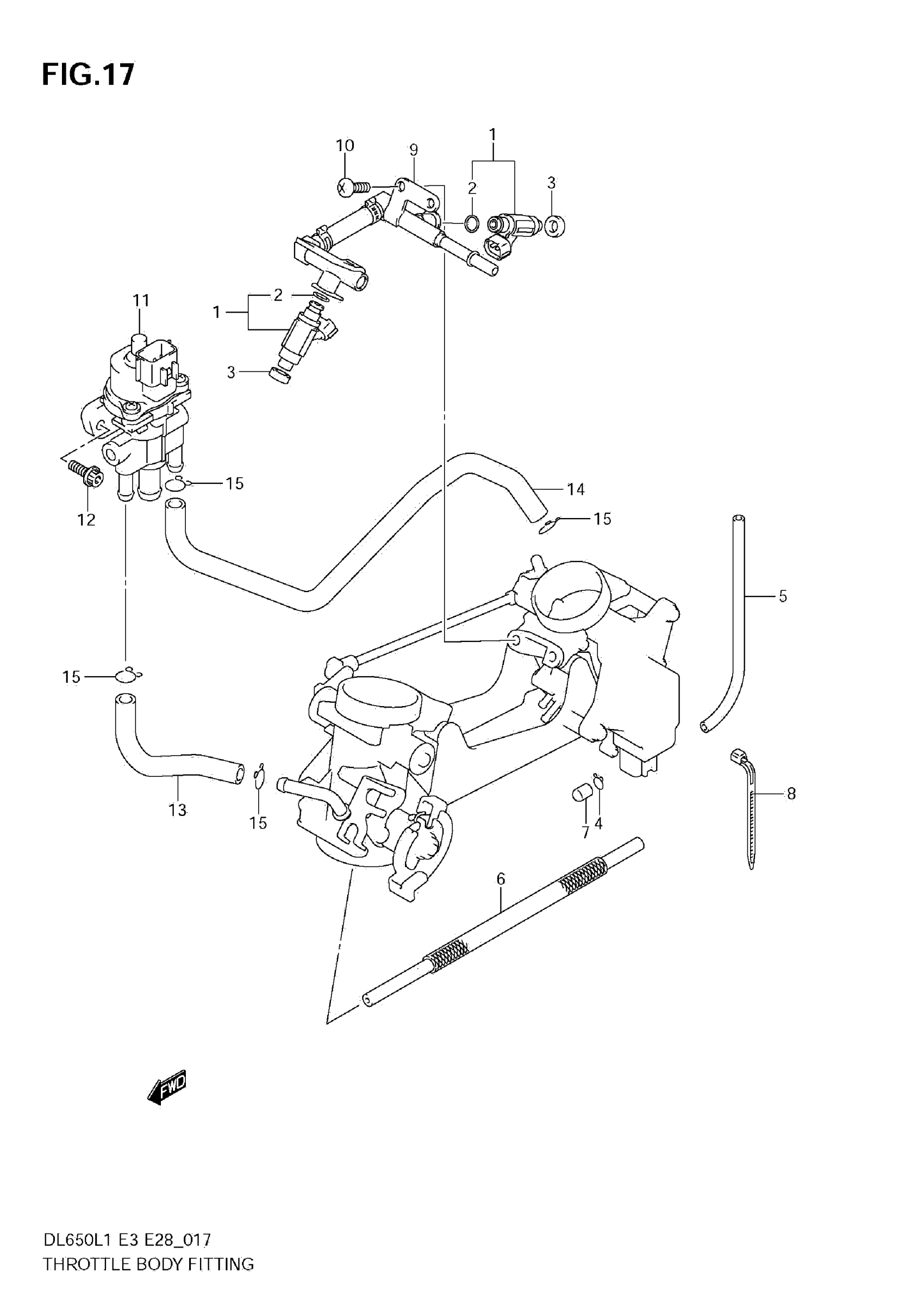

Suzuki DL650AL1 (2011) THROTTLE BODY FITTING (DL650 L1 E3) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-27G00

$371.32

2

O RING

15717-16G00

$9.11

3

SEAL

15722-29G00

$10.01

4

CLIP

09401-06101

$2.06

5

HOSE

13683-16G30

Unavailable

6

HOSE This part replaces 13683-27G20.

13683-27G21

$50.00

7

CAP

13274-84000

$3.49

8

CLAMP

13671-02F00

Unavailable

9

DELIVERY PIPE ASSY

15730-17G01

$341.00

10

BOLT

13602-06128

$2.80

11

VALVE, ISC

18117-27G00

Unavailable

12

BOLT

07120-0616A

$2.55

13

HOSE, ISC VALVE FR

13697-27G00

$11.83

14

HOSE, ISC VALVE RR

13698-27G00

$23.17

15

CLIP

09401-11101

$2.43
