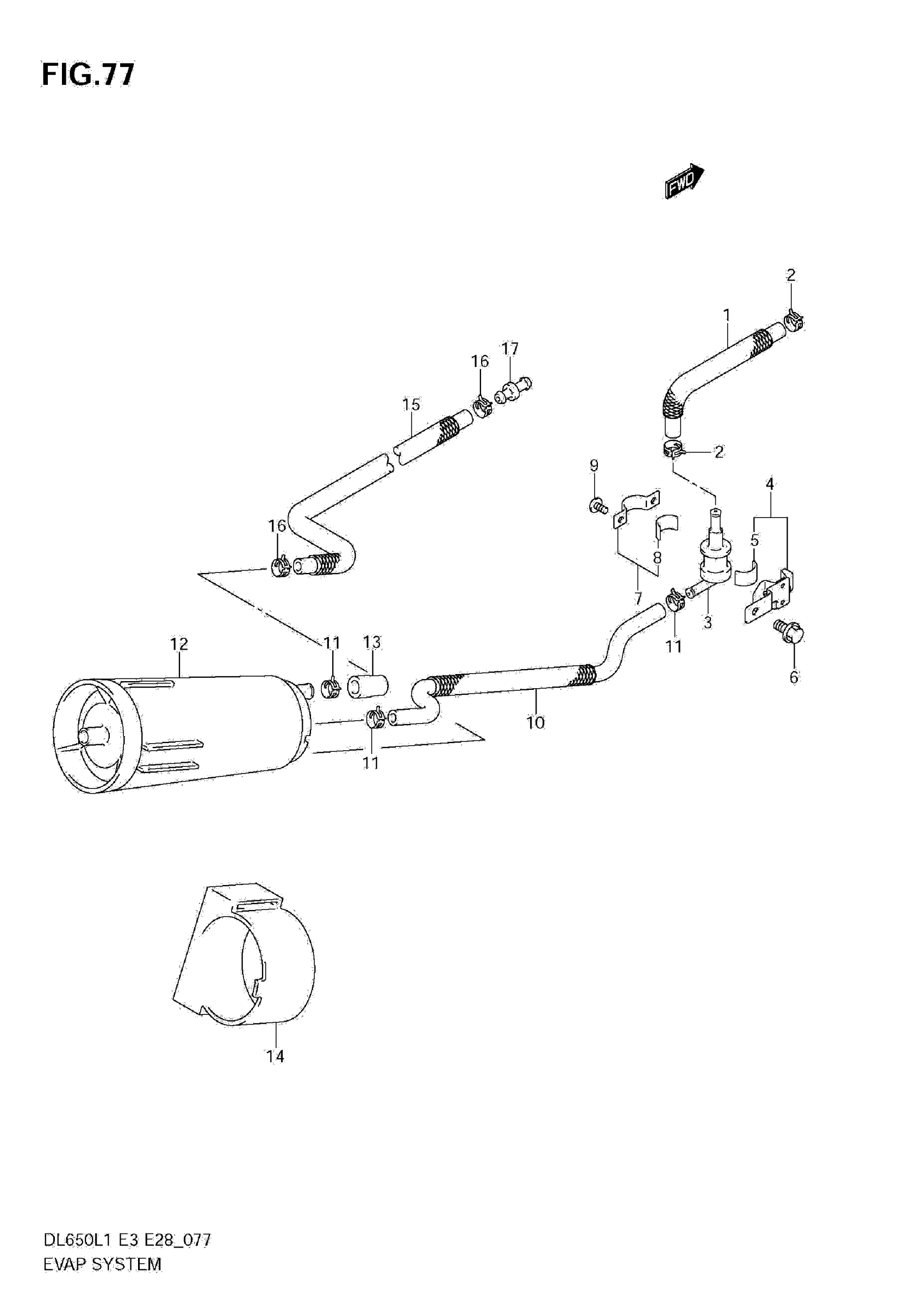

Find the part on the Evap System diagram for your 2011 Suzuki DL650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki DL650AL1 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE

44434-06G10

1
Out of stock

2

CLIP

09401-11413

3
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

BRACKET, BREATHER VALVE

44890-06G00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

BOLT, PLATE

01550-0612B

1
Out of stock

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

8

CUSHION (10X30X2)

44894-24A00

1
Out of stock

9

SCREW, PLATE

02142-0408B

2

$1.79

In stock

10

HOSE, VALVE & CANISTER

44435-27G10

1
Out of stock

11

CLIP

09401-11413

3
Out of stock

12

CANISTER ASSY CHARCOAL

17210-26E00

1
Out of stock

13

CAP

09251-07005

1
Out of stock

14

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

1
Out of stock

15

HOSE, PURGE

44436-06G10

1
Out of stock

16

CLIP

09401-12404

1
Out of stock

17

JOINT

09367-06009

1
Out of stock
