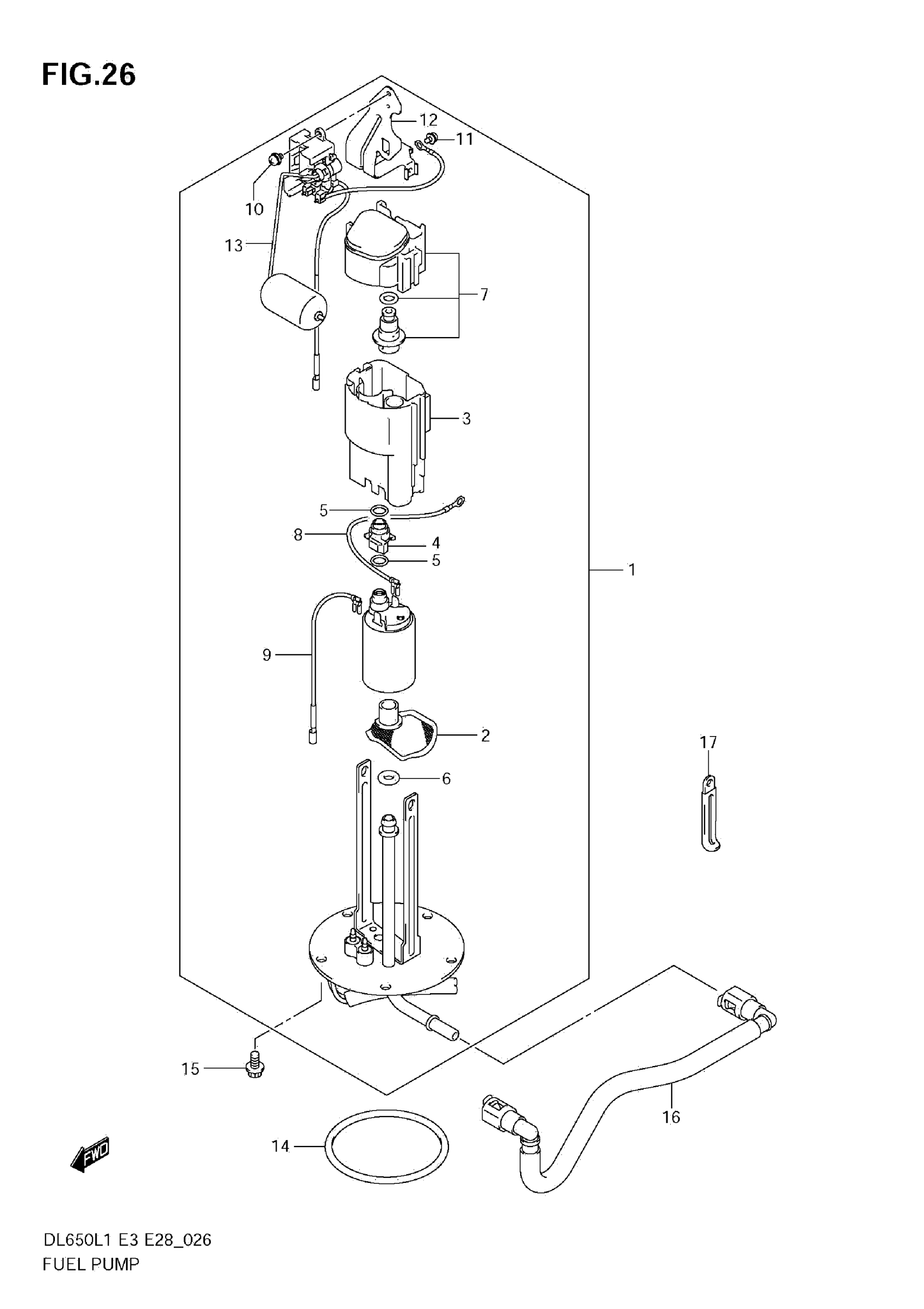

Suzuki DL650AL1 (2011) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-27G00.

15100-27G01

$948.05

2

STRAINER

15420-05H00

$37.68

3

CUP, RESERVOIR

15111-27G00

$47.88

4

JOINT

15112-05H00

$31.73

5

O RING

15113-05H00

$18.81

6

O RING

15113-35F00

$8.15

7

REGULATOR

15610-27G00

$154.55

8

WIRE, EARTH

15114-27G00

Unavailable

9

WIRE, LEAD

15115-27G00

$31.90

10

SCREW

15116-06G10

$8.13

11

SCREW

15116-10F00

$6.30

12

BRACKET, FUEL GAUGE

15181-27G00

Unavailable

13

GAUGE ASSY

34810-27G00

Unavailable

14

O-RING

15201-35F00

$25.27

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL

15810-27G01

$88.00

17

CLAMP

09404-06429

$1.82
