2006 Suzuki DL650 Side Cowling Diagram

← All diagrams

Find the part on the Side Cowling diagram for your 2006 Suzuki DL650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

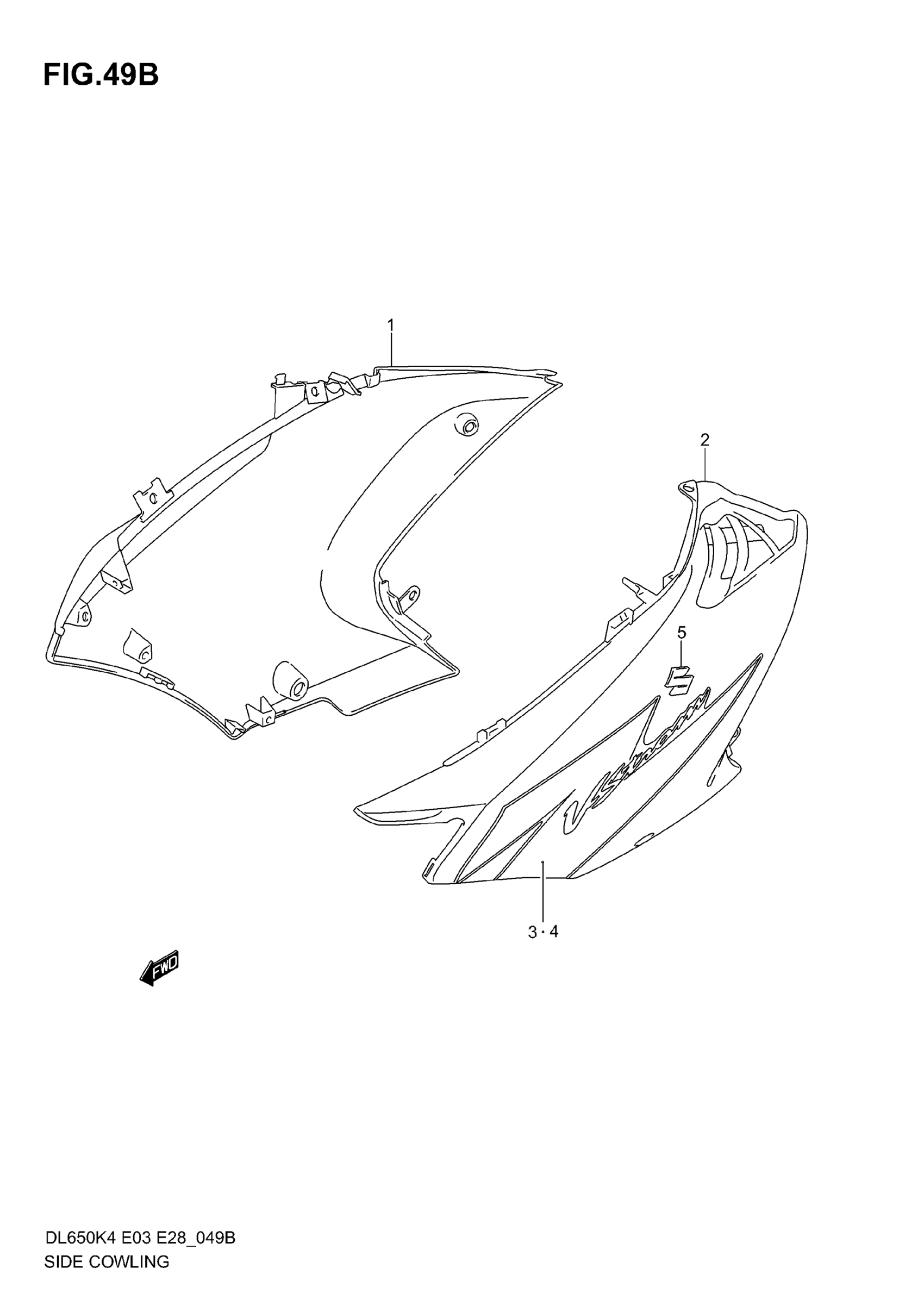

2006 Suzuki DL650 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL ASSY, SIDE RH (BLUE)

94402-27G10-YEX

—
Out of stock

1

COWL ASSY, SIDE RH (RED)

94402-27G10-4RX

1
Out of stock

1

COWL ASSY, SIDE RH (SILVER)

94402-27G10-YDV

1
Out of stock

1

COWL ASSY, SIDE RH (BLACK)

94402-27G10-YKV

—
Out of stock

2

COWL ASSY, SIDE LH (BLUE)

94403-27G10-YEX

—
Out of stock

2

COWL ASSY, SIDE LH (RED)

94403-27G10-4RX

1
Out of stock

2

COWL ASSY, SIDE LH (SILVER)

94403-27G10-YDV

1
Out of stock

2

COWL ASSY, SIDE LH (BLACK) | Includes Item(s) 3 - 5

94403-27G10-YKV

—
Out of stock

3

TAPE, SIDE RH | FOR YEX

68685-27G00-CUA

—
Out of stock

3

TAPE, SIDE RH | FOR 4RX

68685-27G00-CUB

1
Out of stock

3

TAPE, SIDE RH | FOR YDV

68685-27G00-CUC

1
Out of stock

3

TAPE, SIDE RH | FOR YKV

68685-27G00-CUD

—
Out of stock

4

TAPE, SIDE LH | FOR YEX

68695-27G00-CUA

1
Out of stock

4

TAPE, SIDE LH | FOR 4RX

68695-27G00-CUB

1
Out of stock

4

TAPE, SIDE LH | FOR YDV

68695-27G00-CUC

1
Out of stock

4

TAPE, SIDE LH | FOR YKV

68695-27G00-CUD

—
Out of stock

5

EMBLEM, "S"

68111-18G20

2
Out of stock
