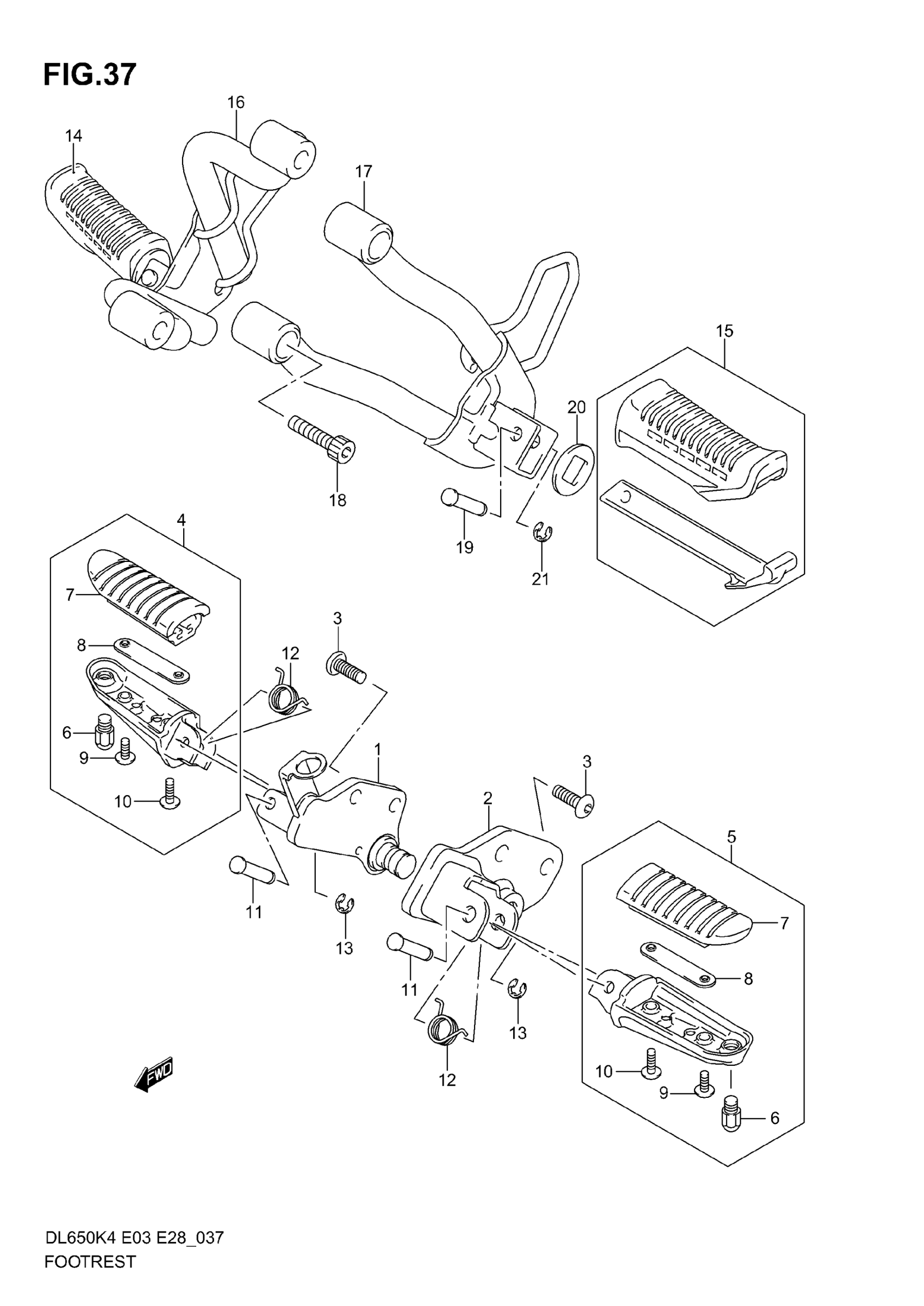

Suzuki DL650 (2006) FOOTREST Diagram

#

Description
Price

1

BRACKET,FRT FOO | MODEL K4 This part replaces 43510-27G00.

43510-11J00-13L

Unavailable

1

BRACKET, FR FOOTREST RH | MODEL K5/K6 This part replaces 43510-27G01-YAP.

43510-11J00-YAP

$92.55

2

BRACKET,FRT FTR | MODEL K4 This part replaces 43520-27G00.

43520-11J00-13L

Unavailable

2

BRACKET, FR FOOTREST LH | MODEL K5/K6 This part replaces 43520-27G01-YAP.

43520-11J00-YAP

$72.77

3

BOLT

09106-08150

$3.22

4

FOOTREST ASSY RH

43501-06G01

$133.57

5

FOOTREST ASSY, LH | Includes Item(s) 6 - 10

43502-06G01

$133.57

6

.BOLT,BANK SENSOR

43576-07D01

$8.46

7

RUBBER

43551-06G00

$13.79

8

PLATE

43552-06G00

$14.47

9

SCREW This part replaces 02142-05163.

02142-0516A

$1.46

10

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.82

11

PIN

09208-08010

$2.80

12

SPRING

09448-18022

$3.53

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.46

14

FOOTREST ASSY,P This part replaces 43600-12B00.

43600-12B01

$27.02

15

FOOTREST ASSY,P This part replaces 43700-12B00.

43700-12B01

$25.50

16

BRACKET, PILLION RH (BLACK) | MODEL K4 This part replaces 43810-27G00.

43810-27G01-019

$228.10

16

BRACKET, PILLION RH (BLACK) | MODEL K5 This part replaces 43810-27G01-YAP.

43810-27G01-019

$228.10

16

BRACKET, PILLION RH (BLACK) | MODEL K6

43810-27G01-019

$228.10

17

BRACKET, PILLION LH (BLACK) | MODEL K4 This part replaces 43820-27G00.

43820-27G01-019

$169.10

17

BRACKET, PILLION LH (BLACK) | MODEL K5

43820-27G01-YAP

$147.90

17

BRACKET, PILLION LH (BLACK) | MODEL K6

43820-27G01-019

$169.10

18

BOLT, BRACKET

09106-08074

$3.65

19

PIN

09208-06005

$2.80

20

PLATE, FOOTREST LH

43631-34A01

$4.46

21

E RING This part replaces 08332-11043.

08332-1104A

$1.41
