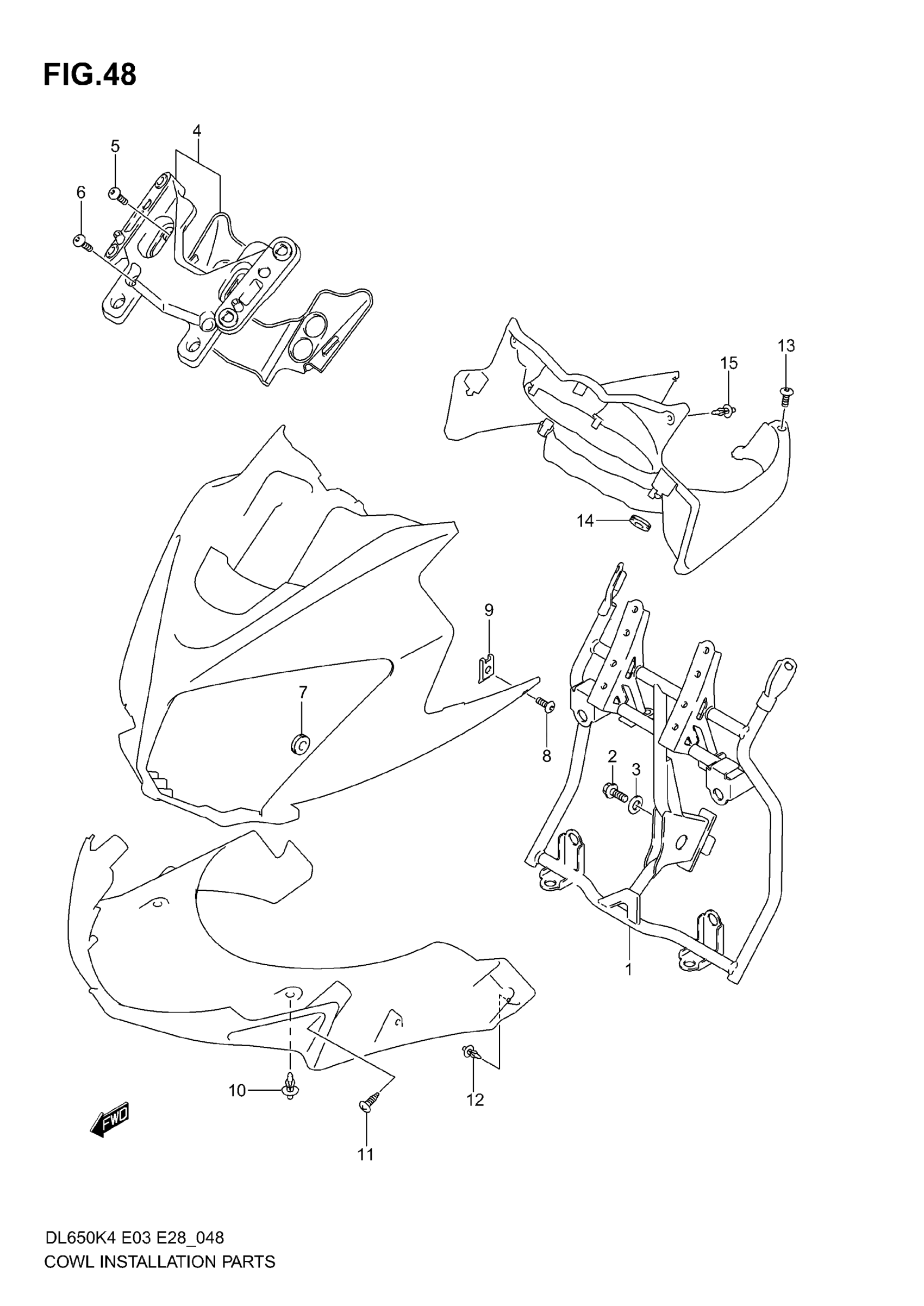

Suzuki DL650 (2006) COWL BODY INSTALLATION PARTS Diagram

#

Description

Price

1

BRACE, COWLING This part replaces 94510-27G00.

94510-27G01

$440.68

2

BOLT This part replaces 01550-08203.

01550-0820A

$2.32

3

WASHER

09164-08020

$2.14

4

BRACE, WINDSCREEN

94600-27G00

$107.83

5

SCREW, UPPER

09139-06126

$3.75

6

SCREW, LOWER

09139-06120

$2.80

7

CUSHION

09320-08028

$2.82

8

SCREW, SIDE

09139-05064

$2.64

9

NUT, SIDE

09148-05038

$2.01

10

CLIP, INNER COVER UPPER

09409-07333

$2.37

11

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

$1.27

12

CLIP, SIDE (BLACK)

09409-06314-5PK

$2.80

13

SCREW, METER PANEL REAR SIDE

09139-06122

$2.88

14

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.19

15

CLIP, METER PANEL (BLACK)

09409-06314-5PK

$2.80
