2006 Suzuki DL650 Front Cylinder Head Diagram

← All diagrams

Find the part on the Front Cylinder Head diagram for your 2006 Suzuki DL650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

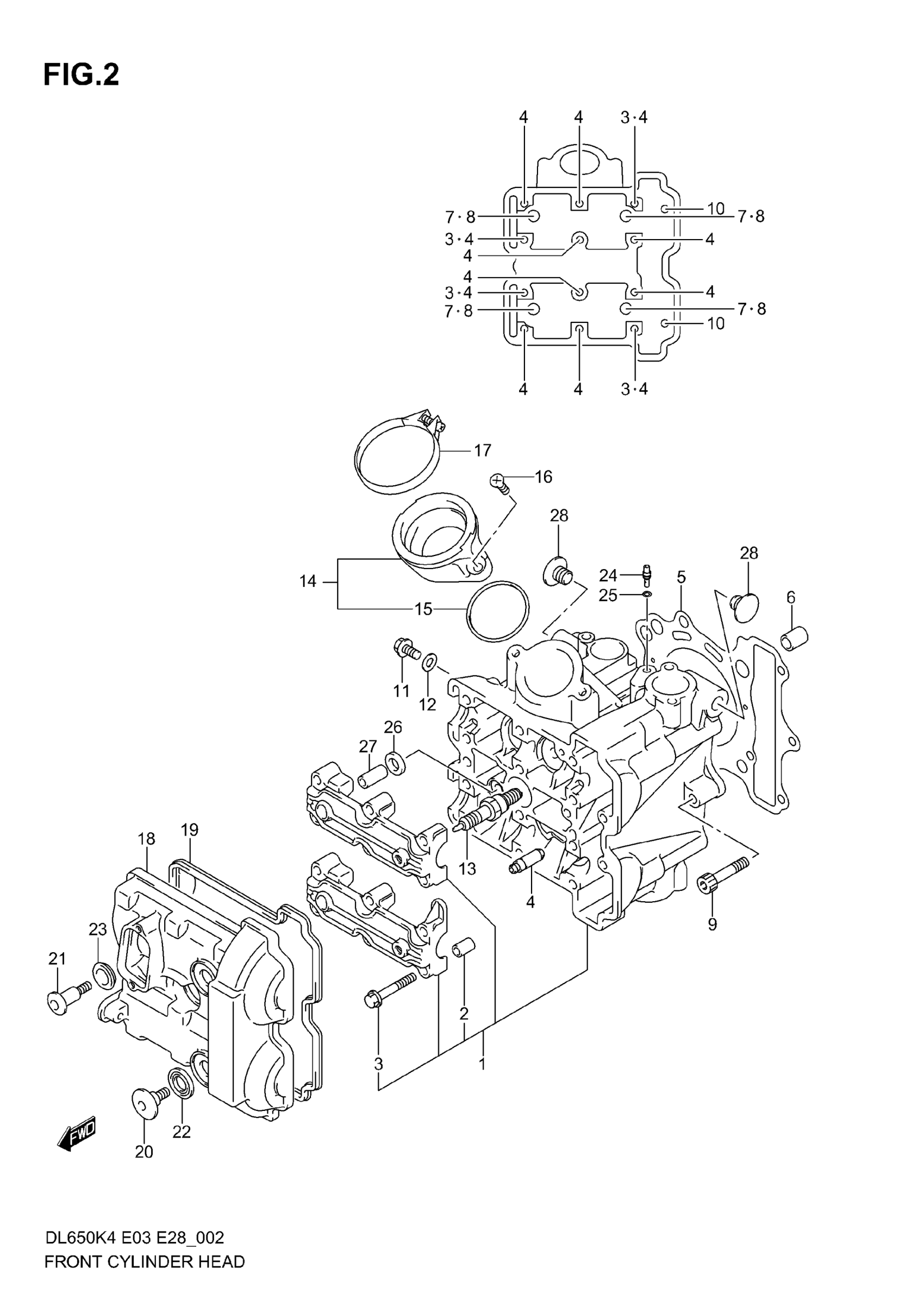

2006 Suzuki DL650 Front Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 3

11101-17G10

1
Out of stock

2

PIN (6.2X8X11)

09206-08001

4
Out of stock

3

BOLT (6X39)

09103-06026

12
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-18D72

4
Out of stock

5

.GASKET,CYLINDER HEAD

11141-20F00

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

WASHER (10.5X19X2.0)

09160-10082

4
Out of stock

8

BOLT (10X160)

09103-10272

4
Out of stock

9

BOLT This part replaces 07120-06403.

07120-0640B

1
Out of stock

10

BOLT (6X70)

09103-06103

2
Out of stock

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

1
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

SPARK PLUG (NGK,CR8E)

09482-00456

1
Out of stock

13

SPARK PLUG (DENSO,U24ESR-N)

09482-00457

1
Out of stock

13

PLUG SPARK (CR9E) | OPT

09482-00458

1
Out of stock

13

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

1
Out of stock

13

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

1
Out of stock

13

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

1
Out of stock

14

PIPE ASSY, INTAKE FRONT | Includes Item(s) 15

13101-17G00

1
Out of stock

15

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

1
Out of stock

16

SCREW This part replaces 02122-06163.

02122-0616A

2
Out of stock

17

CLAMP

09402-62208

1
Out of stock

18

COVER, CYLINDER HEAD FRONT

11171-17G00

1
Out of stock

19

.GASKET,CYLINDER HEAD COVER

11173-19F01

1
Out of stock

20

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

2
Out of stock

21

BOLT (7X31)

09106-07010

1
Out of stock

22

WASHER

09161-11008

2
Out of stock

23

CUSHION,HEAD COVER BOLT

11192-13E00

1
Out of stock

24

JET, OIL

09493-80005

1
Out of stock

25

O RING

09280-04004

1
Out of stock

26

GASKET, 2ND AIR PASSAGE

11182-35F00

1
Out of stock

27

PIN

09206-08007

1
Out of stock

28

CAP,ENGINE MOUNTING RR RH This part replaces 11151-27G00.

11151-27G01

2
Out of stock
← Cylinder Gasket SET →
