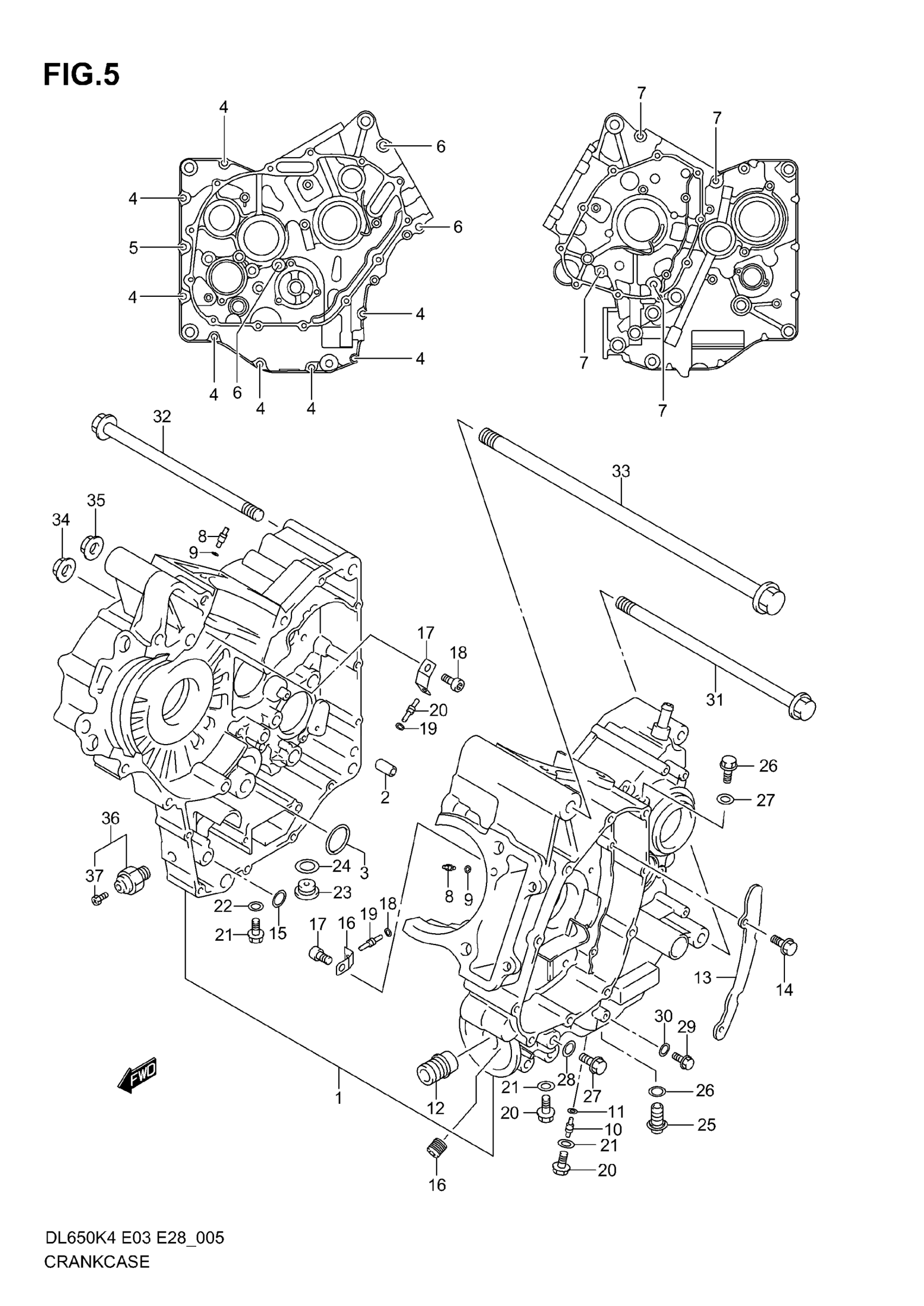

Suzuki DL650 (2006) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 15 This part replaces 11301-20881.

11301-20883

Unavailable

2

PIN (11X20)

09206-11007

$2.63

3

O-RING (D:2.4,ID:15.8)

09280-15007

$1.76

4

BOLT This part replaces 01547-06503.

01547-0650B

$2.80

5

BOLT

01547-06507

$2.50

6

BOLT This part replaces 07120-08553.

07120-0855B

Unavailable

7

BOLT This part replaces 07120-08803.

07120-0880B

$5.83

8

JET, OIL GALLERY CYLINDER

09493-28010

$18.00

9

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

10

JET, OIL GALLERY MISSION

09493-28010

$18.00

11

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

12

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.74

13

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

14

BOLT This part replaces 01547-06123.

01547-0612B

$1.25

15

O RING (D:1.9,ID:12.6)

09280-12009

$2.95

16

JET, OIL GALLERY

11329-17G00

Unavailable

17

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

18

BOLT (6X12)

09106-06075

$2.58

19

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

20

JET (130)

09493-26007

Unavailable

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.38

22

GASKET (8.2X14X1)

09168-08016

$1.70

23

PLUG

09248-16012

$4.32

24

GASKET (16X22X2)

09168-16002

$1.97

25

PLUG

09247-12011

$4.32

26

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

27

PLUG

09247-12006

$2.80

28

GASKET

09168-12017

$2.01

29

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

30

GASKET (5.8X13X1.2)

09168-06023

$2.09

31

BOLT (10X275)

09103-10347

$23.72

32

BOLT (10X225)

09103-10205

$21.22

33

BOLT (12X310)

09103-12054

$20.66

34

NUT This part replaces 08319-31103.

08319-3110A

$2.80

35

NUT

09159-12054

$9.50

36

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 37 This part replaces 37820-33D10.

37820-33D11

$27.58

37

BOLT

37822-33D00

$4.92
