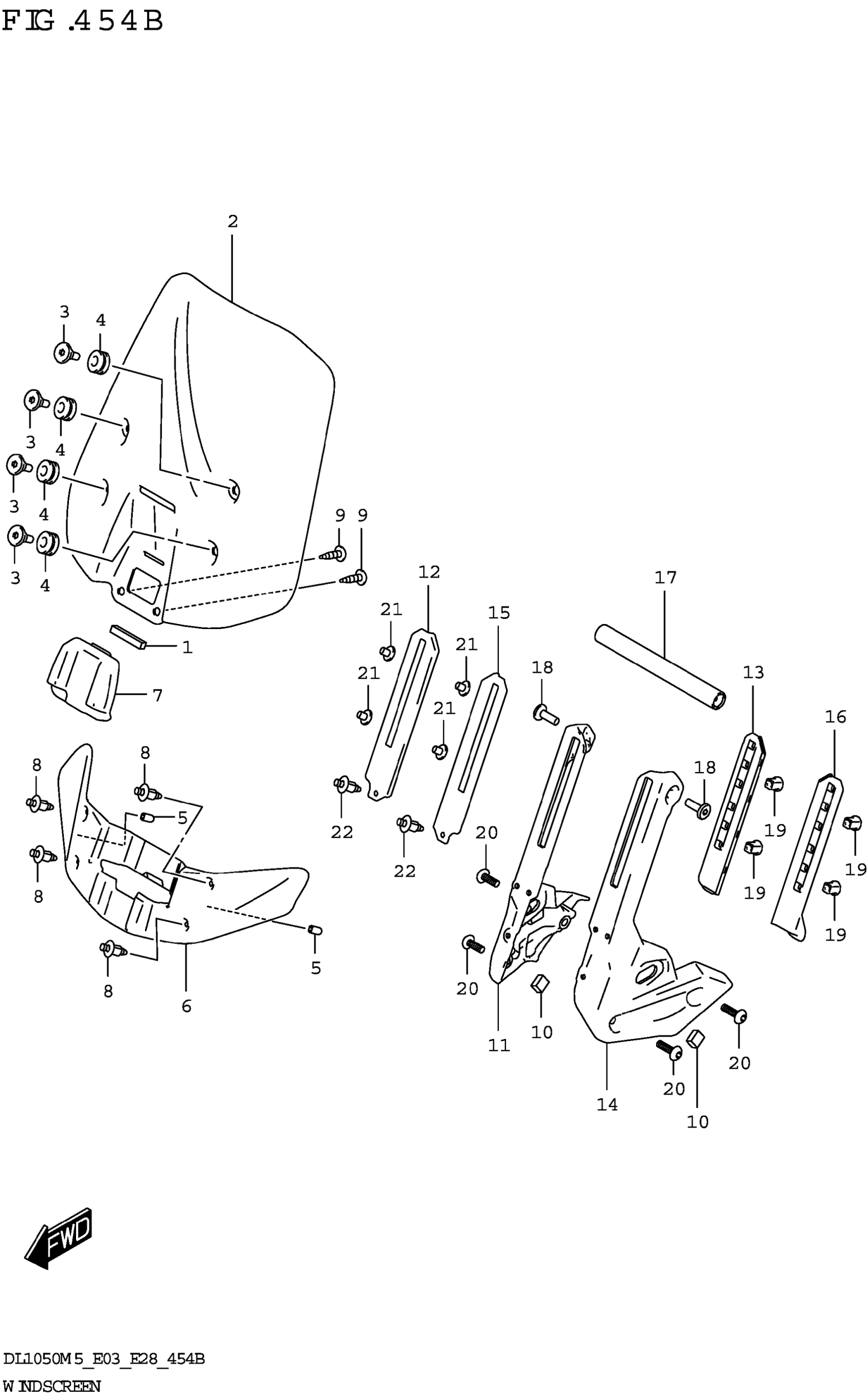

Suzuki DL1050RJM5 (2025) WINDSCREEN (DL1050RJ) Diagram

#

Description
Price

1

CUSHION (8X50X8)

47122-17K00

$2.14

2

WINDSCREEN

48411-06L20

$147.75

3

SCREW,WINDSCREEN

48415-06L00

$4.03

4

CUSHION (9X18X9.5)

09320-09016

$1.97

5

CUSHION,FUEL TANK COVER NO.4

44294-43H20

$2.22

6

COVER,WINDSCREEN

48412-06L10

$30.18

7

COVER,LOCK WINDSCREEN

48413-06L10

$21.83

8

CLIP

09409-06329

$2.79

9

SCREW

03541-0512A

$1.49

10

CUSHION,FRAME COVER

47161-26J00

$3.58

11

BRACE,WINDSCREEN,R

48421-06L20

$437.27

12

SLIDER,WINDSCREEN FR RH

48422-06L00

$21.05

13

SLIDER,WINDSCREEN RR RH

48423-06L10

$24.30

14

BRACE,WINDSCREEN,L

48431-06L20

$437.27

15

SLIDER,WINDSCREEN FR LH

48432-06L00

$21.05

16

SLIDER,WINDSCREEN RR LH

48433-06L10

$24.30

17

ROD,WINDSCREEN BRACE

48440-06L10

$44.63

18

BOLT,WINDSCREEN BRACE ROD

48442-06L10

$3.95

19

NUT,WINDSCREEN

48452-06L00

$10.75

20

BOLT,WINDSCREEN BRACE

48425-06L00

$3.22

21

WASHER

09169-07007

Unavailable

22

CLIP

09409-06329

$2.79
