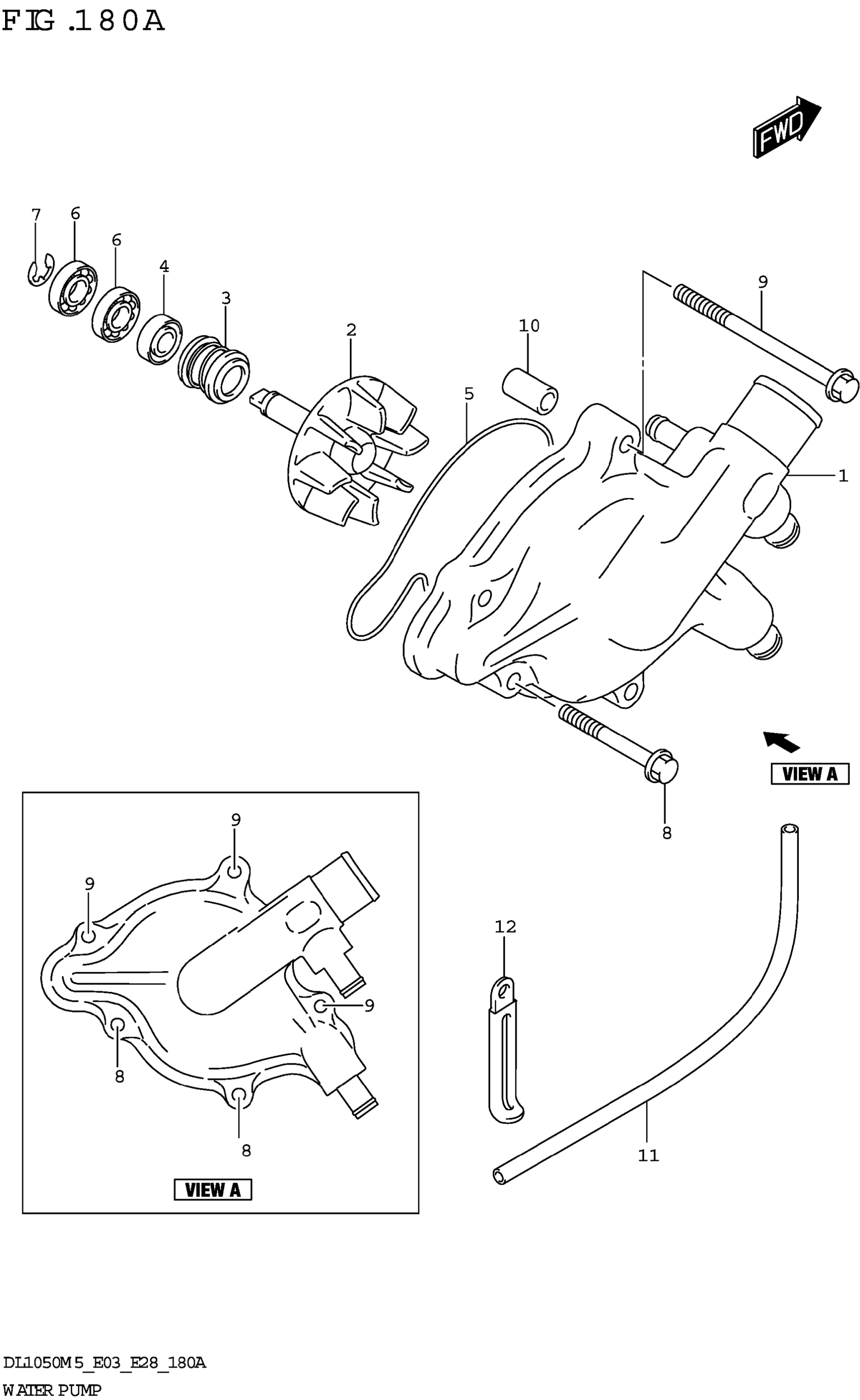

Suzuki DL1050RJM5 (2025) WATER PUMP Diagram

#

Description
Price

1

CASE,WATER PUMP

17410-06L00

$161.65

2

IMPELLER,WATER PUMP

17491-16G00

$33.31

3

.SEAL,MECHANICAL

17470-02F11

$29.22

4

OIL SEAL (10X20X5)

09283-10005

$4.64

5

.O RING,WATER PUMP CASE

17435-02F00

$10.62

6

BEARING (10X22X5)

09262-10016

$22.52

7

.E-RING

08332-1108A

$1.78

8

BOLT (6X30)

09103-06529

$1.96

9

BOLT (L:65)

09103-06536

$2.95

10

PIN (8.5X18X2.3)

04211-09149

$1.65

11

HOSE

09352-42704-140

$2.23

12

CLAMP (L:45)

09404-06429

$1.83
