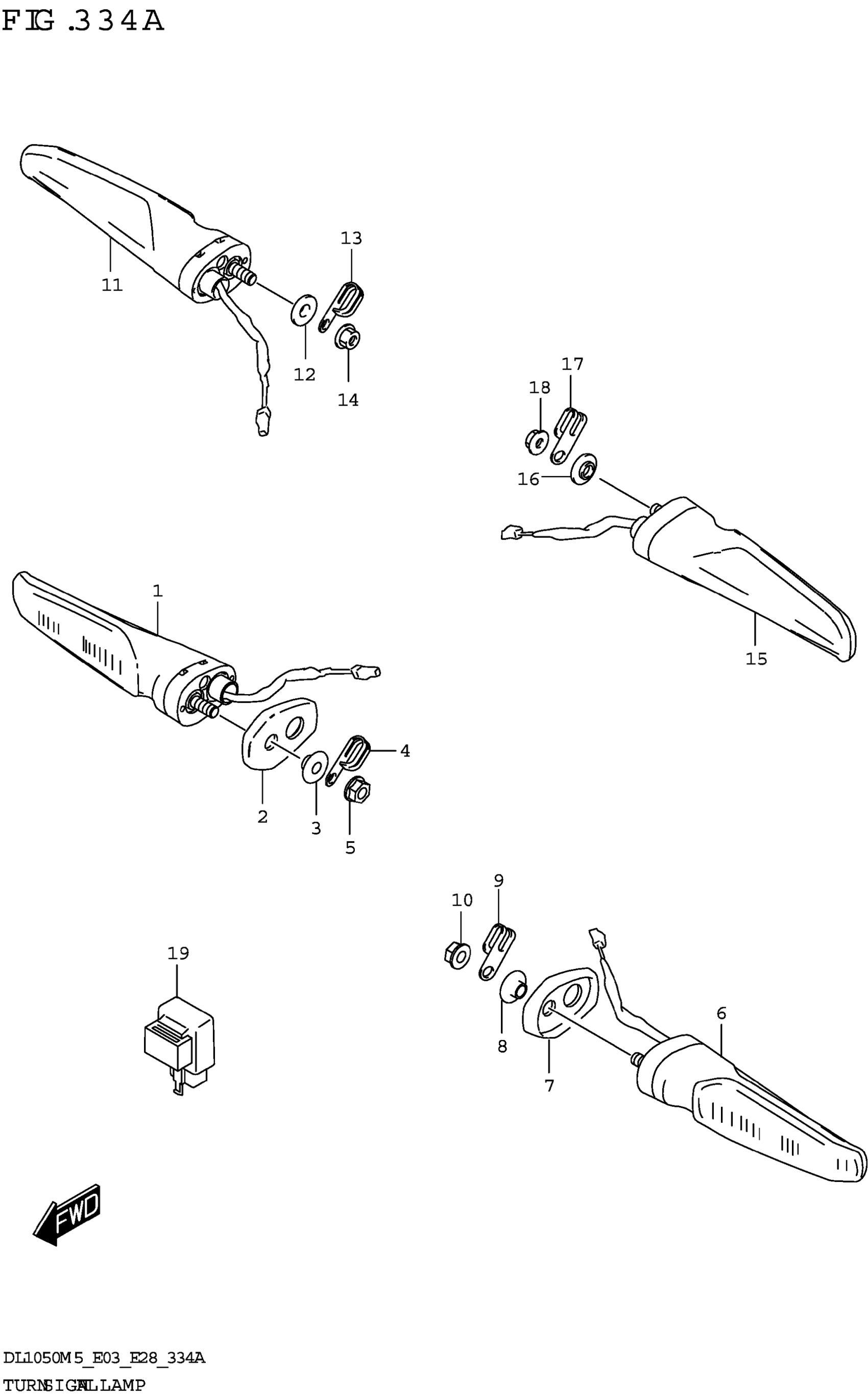

Suzuki DL1050RJM5 (2025) TURNSIGNAL LAMP (DL1050RJ) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-06LD0.

35601-06LD1

$170.67

2

CUSHION,TURNSIGNAL

35690-06L00

$10.15

3

WASHER

09169-06098

$4.93

4

CLAMP (L:45)

09404-06429

$1.82

5

NUT (6X12)

08316-1006A

$2.19

6

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LD0

$160.30

7

CUSHION,TURNSIGNAL

35690-06L00

$10.15

8

WASHER

09169-06098

$4.93

9

CLAMP (L:45)

09404-06429

$1.82

10

NUT (6X12)

08316-1006A

$2.19

11

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LD0

$170.67

12

WASHER

09169-06100

$1.53

13

CLAMP (L:45)

09404-06429

$1.82

14

NUT (6X12)

08316-1006A

$2.19

15

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LD0

$170.67

16

WASHER

09169-06100

$1.53

17

CLAMP (L:45)

09404-06429

$1.82

18

NUT (6X12)

08316-1006A

$2.19

19

RELAY ASSY,TURNSIGNAL

38610-06L01

$81.55
