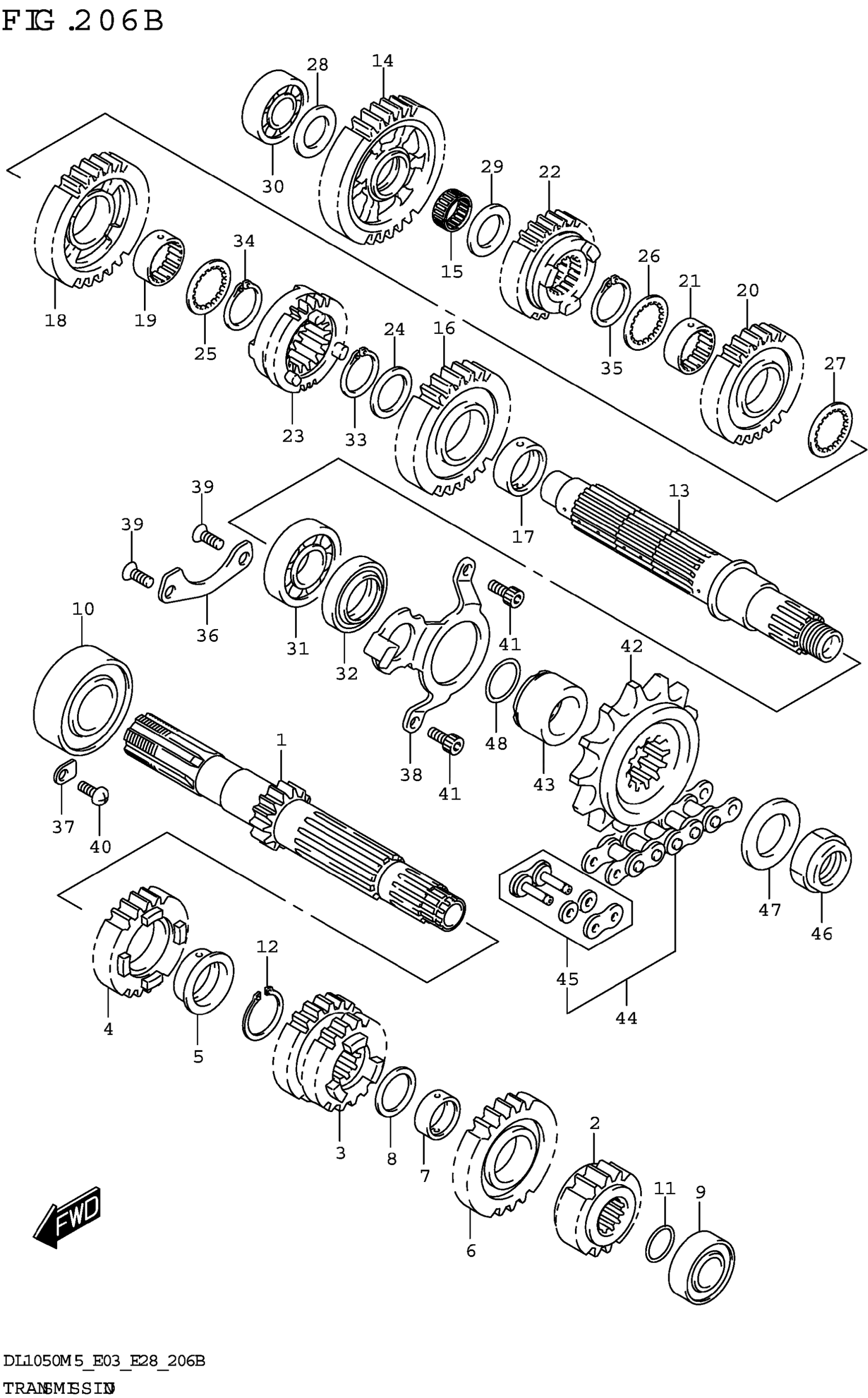

Suzuki DL1050RJM5 (2025) TRANSMISSION (DL1050RJ) Diagram

#

Description
Price

1-1

SHAFT,COUNTER (NT:12)

24120-06G00

Unavailable

1-2

SHAFT,COUNTER

24120-06G10

$184.63

2

GEAR,2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR,3RD & 4TH DRIVE

24231-02F40

$123.52

4

GEAR,5TH DRIVE (NT:23)

24251-02F11

$184.63

5

BUSH,5TH DRIVE GEAR

24252-02F10

$43.95

6-1

GEAR,6TH DRIVE (NT:24)

24261-02F20

Unavailable

6-2

GEAR,6TH DRIVE

24261-02F40

$106.23

7

BUSH,6TH DRIVE GEAR

24262-02F00

Unavailable

8

SHIM (22X30X1.0)

09181-22167

$2.80

9

BEARING (20X47X14)

09262-20139

$48.87

10

BEARING (25X62X17)

09262-25073

$23.39

11

O-RING (D:1.9,ID:16.6)

09280-17004

$3.98

12

CIRCLIP

09380-27001

$2.58

13

SHAFT,DRIVE

24130-02F40

$117.32

14

GEAR,1ST DRIVEN NT:32 (NT:32)

24311-02F10

Unavailable

15

BEARING (22X26X11)

09263-22068

$6.78

16

GEAR,2ND DRIVEN

24321-02F31

$107.05

17

BUSH,2ND DRIVEN GEAR

24322-02F01

$24.28

18

GEAR,3RD DRIVEN

24331-02F31

$96.03

19

BUSH,3RD DRIVEN GEAR

24332-17E20

$44.03

20

GEAR,4TH DRIVEN

24341-02F40

$98.65

21

BUSH,3RD DRIVEN GEAR

24332-17E20

$44.03

22

GEAR,5TH DRIVEN (NT:25)

24351-02F20

$138.77

23

GEAR,6TH DRIVEN

24361-02F50

$127.23

24

WASHER (27X36X1.0)

09160-27008

$4.00

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$6.62

26

WASHER,3RD & 4TH DRIVEN

24333-02F00

$6.62

27

WASHER,3RD & 4TH DRIVEN GEAR

24333-02F10

$7.93

28

SHIM (20X34X1)

09181-20251

$2.77

29

SHIM (22X34X1)

09181-22223

$2.85

30

BEARING (20X52X15)

09262-20082

$33.28

31

BEARING (28X68X18)

09262-28053

$106.73

32

OIL SEAL (38X52X8)

09283-38028

$25.43

33

CIRCLIP

09380-27001

$2.58

34

CIRCLIP

09380-27001

$2.58

35

CIRCLIP

09380-27001

$2.58

36

RETAINER,DRIVE SHAFT BRG

24741-06G00

$9.08

37

RETAINER

24741-21A00

$2.80

38

RETAINER,DRIVE SHAFT OIL SEAL

24751-06G00

$11.57

39

SCREW (6X12)

09126-06011

$2.01

40

SCREW

02112-0612A

$1.43

41

BOLT

07130-0612A

$2.50

42

SPROCKET,ENGINE (NT:17)

27511-20A21

$53.97

43

SPACER,ENGINE SPROCKET

27531-31J00

$41.37

44

CHAIN ASSY,DRIVE | 102>118

27600-06L00-120

$252.25

45

.JOINT SET CHAIN

27620-06L00

$13.13

46

NUT

09159-20004

$14.15

47

WASHER (25X41X3)

09160-25009

$4.84

48

O RING (D:2.4,ID:23.7) This part replaces 09280-24008.

09280-24010

$5.09
