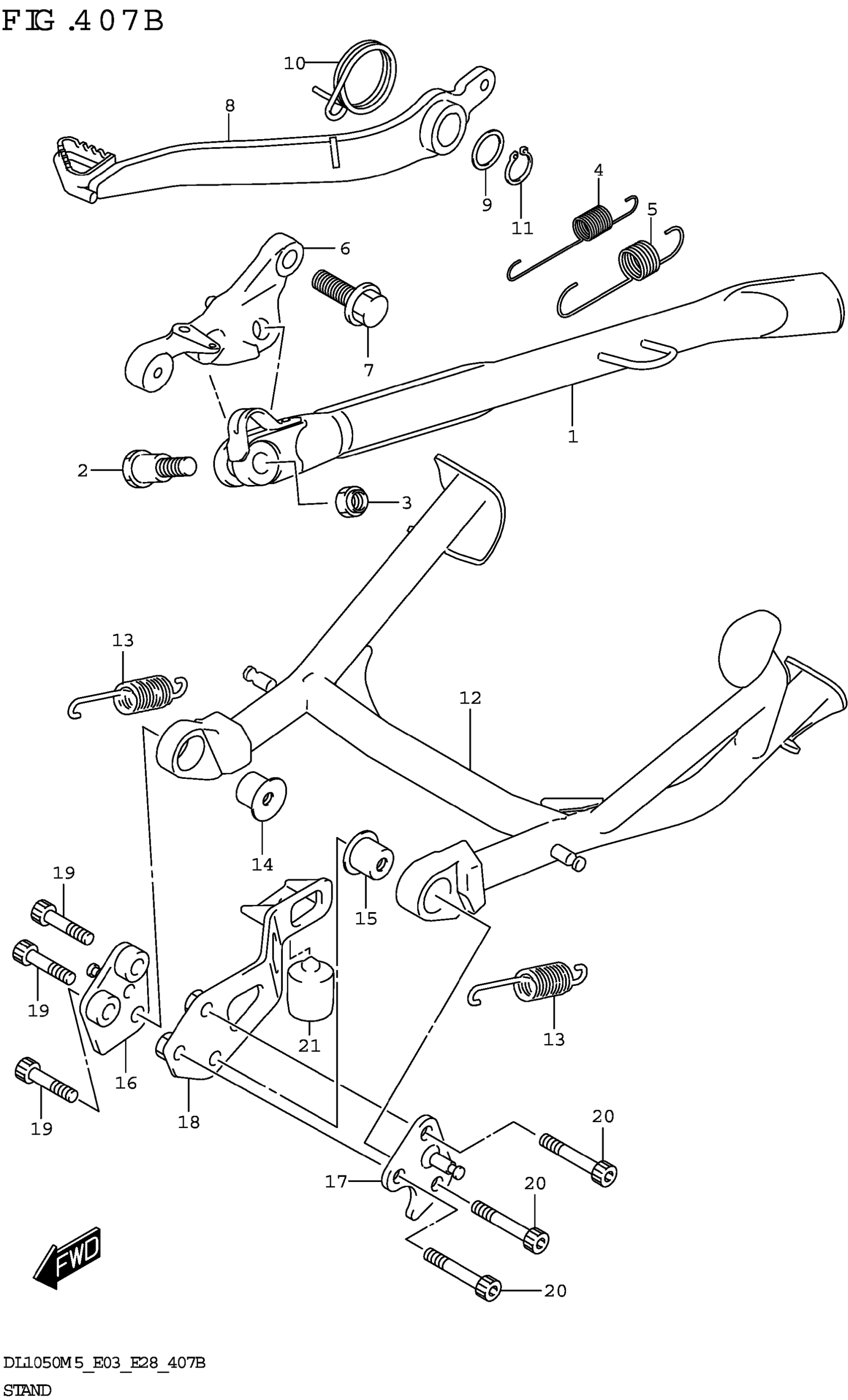

Suzuki DL1050RJM5 (2025) STAND (DL1050RJ) Diagram

#

Description
Price

1

STAND,PROP

42310-31J30

$128.12

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING

09443-14058

$5.17

5

SPRING

09443-19011

$5.26

6

BRACKET,PROP STAND

42330-06L00

$154.37

7

BOLT,PROP STAND BRACKET

01550-1235B

$3.33

8

PEDAL,BRAKE

43111-06L00

$173.12

9

WASHER (18X24X1.0)

09160-18022

$2.80

10

SPRING

09448-41006

$5.30

11

CIRCLIP

08331-3118A

$2.30

12

STAND,CENTER

42100-06L00

$321.12

13

SPRING,CENTER STAND

42241-06L00

$6.92

14

SPACER,CENTER STAND RH

42253-31J10

$22.97

15

SPACER,CENTER STAND LH

42254-31J10

$24.33

16

PLATE,CENTER STAND RH

42260-06L10

$58.40

17

PLATE,CENTER STAND LH

42270-31J20

$18.90

18

PLATE,CENTER STAND

42290-31J10

$30.62

19

BOLT

01550-1035B

$3.07

20

BOLT,CENTER STAND LH

42221-06L00

$2.83

21

CUSHION,CENTER STAND

09321-10051

$11.28
