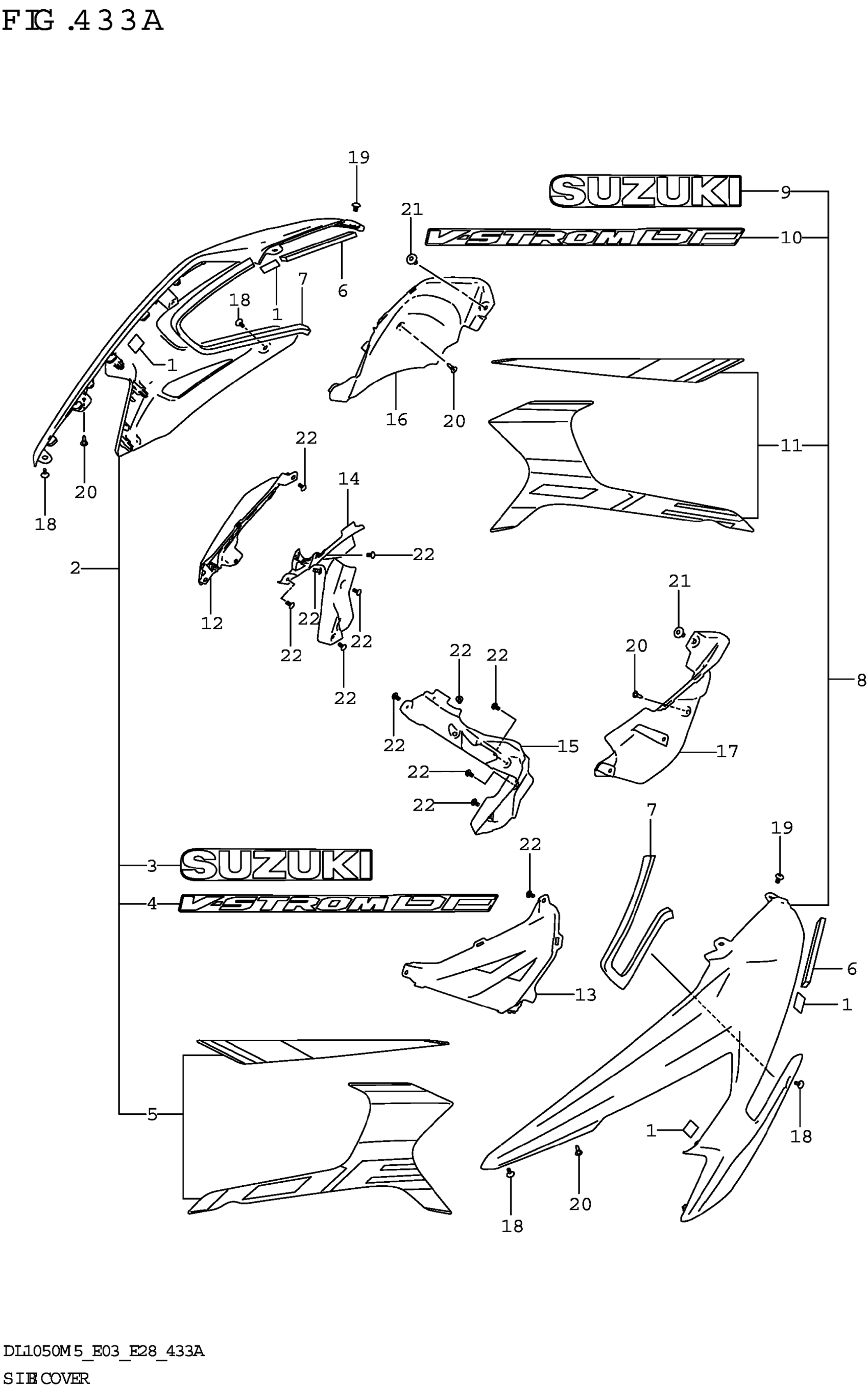

Suzuki DL1050RJM5 (2025) SIDE COVER (DL1050RJ) Diagram

#

Description
Price

1

.FASTENER (33X25)

44572-13G10

$15.40

2-1

COVER,SIDE,R (BLACK) | BODY COLOR:C4X

94420-06L30-6UX

$175.67

2-2

COVER,SIDE,R (YELLOW) | BODY COLOR:BT1

94420-06L30-ZFX

$175.67

2-3

COVER,SIDE,R (WHITE) | BODY COLOR:CK6

94420-06L30-QU2

$175.67

3-1

.EMBLEM,SUZUKI,R (GRAY,BLACK) | BODY COLOR:C4X

68181-06L00-BD7

$16.78

3-2

.EMBLEM,"SUZUKI" (YELLOW,BLAC | ) BODY COLOR:BT1

68181-06L00-GY8

$16.69

3-3

.EMBLEM,"SUZUKI" | BODY COLOR:CK6

68181-06L00-C1Q

$16.69

4-1

.TAPE SET,SIDE COVER,R (RED,B | ACK,GRAY) BODY COLOR:C4X

68270-06L00-B4S

$61.13

4-2

.TAPE SET,SIDE COVER,R | BODY COLOR:BT1

68270-06L00-CL8

$61.13

4-3

.TAPE SET,SIDE COVER,R | BODY COLOR:CK6

68270-06L00-C1G

$61.13

5-1

.EMBLEM,SIDE COVER,R (RED,BLA | K,GRAY) BODY COLOR:C4X

68271-06L20-B4S

$19.37

5-2

.EMBLEM,SIDE COVER,R | BODY COLOR:BT1

68271-06L20-CL8

$19.37

5-3

.EMBLEM,SIDE COVER,R | BODY COLOR:CK6

68271-06L20-C1N

$19.37

6

CUSHION,SIDE COVER NO.1

94425-06L00

$6.03

7

CUSHION,SIDE COVER NO.2

94426-06L00

$7.27

8-1

COVER,SIDE,L (BLACK) | BODY COLOR:C4X

94430-06L30-6UX

$178.98

8-2

COVER,SIDE,L (YELLOW) | BODY COLOR:BT1

94430-06L30-ZFX

$178.98

8-3

COVER,SIDE,L (WHITE) | BODY COLOR:CK6

94430-06L30-QU2

$178.98

9-1

.EMBLEM,"SUZUKI" LH (GRAY,BLA | K) BODY COLOR:C4X

68191-06L00-BD7

$16.78

9-2

.EMBLEM,"SUZUKI",L (YELLOW,BL | CK) BODY COLOR:BT1

68191-06L00-GY8

$16.69

9-3

.EMBLEM,"SUZUKI",L | BODY COLOR:CK6

68191-06L00-C1Q

$16.69

10-1

.EMBLEM,SIDE COVER,L (RED,BLA | K,GRAY) BODY COLOR:C4X

68281-06L20-B4S

$19.37

10-2

.EMBLEM,SIDE COVER,L | BODY COLOR:BT1

68281-06L20-CL8

$19.37

10-3

.EMBLEM,SIDE COVER,L | BODY COLOR:CK6

68281-06L20-C1N

$19.37

11-1

.TAPE SET,SIDE COVER,L (RED,B | ACK,GRAY) BODY COLOR:C4X

68280-06L00-B4S

$61.13

11-2

.TAPE SET,SIDE COVER,L | BODY COLOR:BT1

68280-06L00-CL8

$61.13

11-3

.TAPE SET,SIDE COVER,L | BODY COLOR:CK6

68280-06L00-C1G

$61.13

12

COVER,SIDE NO.2 RH

94441-06L00

$30.00

13

COVER,SIDE NO.2 LH

94451-06L00

$32.40

14

COVER,SIDE INNER LWR RH

94463-06L00

$45.12

15

COVER,SIDE INNER LWR LH

94464-06L00

$45.12

16

COVER,SIDE INNER UPR RH

94471-06L00

$21.63

17

COVER,SIDE INNER UPR LH

94481-06L00

$21.63

18

SCREW (5X13)

09139-05091

$2.03

19

SCREW (6X10)

09139-06172

$3.04

20

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

21

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

22

SCREW

03541-0512B

$1.78
